- Description
iF Design Award 2026
Built to Go Further.
The world's first infrared night-vision robotic mower. Commercial-scale performance up to 6 acres, 90% slope traction, and truly edge-to-edge cutting — day or night. The X9 Series is engineered for properties that demand more than residential-grade hardware.
| Model | Coverage (per 48h) | EdgeZero™ |
|---|---|---|
| X9 | 3 Acres / 12,000 m² | Optional |
| X9 Plus | 6 Acres / 24,000 m² | Included (Standard) |
| 6 Acres / 48h | 90% Max Slope (42°) | 16 Sensors / 8 Cameras | 10 TOPS AI Chip |
World's First Infrared Night Vision
24h Mowing System
No other robotic mower can do this. The X9's modular infrared system detects hidden, low-profile, and completely still animals in total darkness — making nighttime mowing genuinely safe rather than just scheduled. Extend your mowing window past sunset without compromise.
- Infrared night vision — detects hidden animals in complete darkness
- 25/7 animal-friendly operation
- Full mowing confidence day and night
- Modular system — world's first on a robotic mower

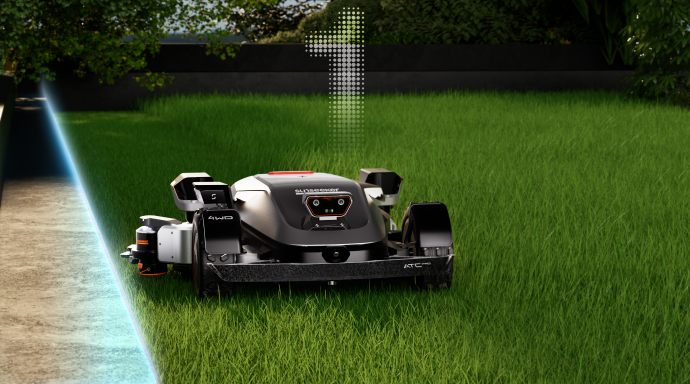

EdgeZero™ — World's First Truly Edge-to-Edge
Trimming System
The EdgeZero™ trimming attachment cuts at zero distance to boundaries — right angles at fences, walls, and lawn edges. It eliminates the manual string trimmer pass that every other robotic mower leaves behind. X9 Plus ships with it standard; X9 owners can add it as an option.
- Zero-distance cutting at boundaries — no manual trimming needed
- Works at fences, high walls, and all lawn edges
- Electronic cutting height: 2 in / 2.8 in
- X9 Plus: Standard — X9: Optional add-on

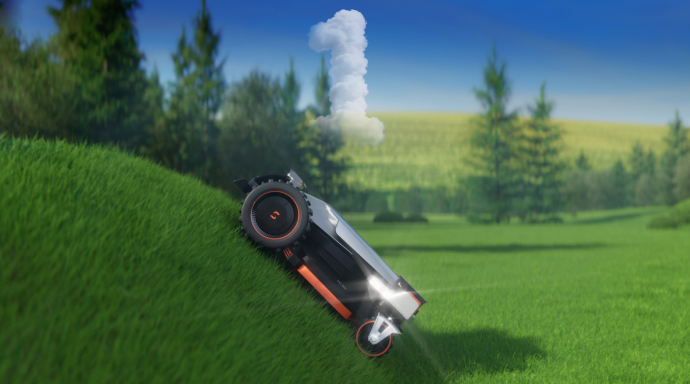

ATC Pro — Industry-Leading 90% / 42° Slope
Drive System
All-Wheel Drive and four-wheel suspension work in combination with six wheel brushes that continuously clear debris from the tires — maintaining grip and protecting turf through the sharpest turns on the steepest terrain. The X9 cuts straight cross-lines on a 42° slope without drifting a single inch.
- 90% / 42° climbing capacity — industry-leading
- AWD + 4-wheel suspension for consistent traction
- Six wheel brushes — continuous debris clearing on every turn
- Obstacle crossing up to 2 in
- Dual rear-wheel active steering — zero-turn, turf-safe
361° OmniSight™ — 24h Full Scene Perception
Perception System
Eight surrounding cameras and eight intelligent sensors provide full-scene coverage in every direction simultaneously. Cliff sensing, side obstacle detection, close-range avoidance, and floating deck sensing all run in parallel — powered by a 10 TOPS AI chip processing 10 trillion operations per second.
- 8 surrounding cameras + 8 intelligent sensors
- Cliff-sensing protection — prevents drop-off falls
- Side, close-range, and floating deck obstacle detection
- 10 TOPS AI chip — 2x computing power over previous generation
- Fully automatic mapping — no manual intervention required
Dual 17-Inch Cutting System
- Dual floating cut discs — 17 in each
- 7 blades per disc
- Dual 190W ultra-powerful magnetic cutting motors
- 0.8–4.0 in cutting height with Target Height Management
- 2.2 mph maximum mowing speed
- Multi-angle mowing — user-selectable cutting patterns
PioneerVolt™ Fast Charging
- X9: 7A fast charge — 50 minutes to full
- X9 Plus: 17A flash charge — 20 minutes to full
- Rear infrared sensor docking — no reversing required, minimal lawn contact
- 42V max, 8 Ah battery
Fleet Management for Professional Use
The X9 Series supports multi-unit fleet management via the Sunseeker commercial portal — purpose-built for landscapers, facility managers, and property services companies managing large-scale or multi-site operations. Ideal for estate lawns, football fields, municipal parks, and golf course rough and semi-rough.
Full Specifications
| Models & Coverage | |
| X9 Coverage (per 48h) | 3 acres / 12,000 m² |
| X9 Plus Coverage (per 48h) | 6 acres / 24,000 m² |
| Cutting System | |
| Disc Type | Dual floating cut discs |
| Disc Diameter | 17 in each |
| Blades per Disc | 7 |
| Cutting Motors | Dual 190W magnetic motors |
| Cutting Height Range | 0.8 – 4.0 in |
| Target Height Management | Yes |
| Max Mowing Speed | 2.2 mph |
| EdgeZero™ Heights | 2 in / 2.8 in (electronic) |
| Drive & Terrain | |
| Drive System | ATC Pro — AWD + 4-wheel suspension |
| Max Slope Capacity | 90% / 42° — industry-leading |
| Obstacle Crossing | Up to 2 in |
| Wheel Brushes | 6 — continuous debris clearing |
| Steering | Dual rear-wheel active steering |
| Navigation | |
| System | AONavi™ 2.0 — RTK + VSLAM 2.0 |
| AI Chip | 10 TOPS |
| Accuracy | Centimeter-level |
| Mapping | Fully automatic — no manual intervention |
| Mowing Angles | Multi-angle, user-selectable |
| Perception System | |
| System Name | 361° OmniSight™ 24h Full Scene |
| Cameras | 8 surrounding cameras |
| Total Sensors | 16 |
| Night Vision | Modular infrared — world's first |
| Cliff Sensing | Yes |
| Dynamic Avoidance | Yes — including hidden and low-profile animals |
| Power & Charging | |
| Battery | 42V max, 8 Ah |
| X9 Charge Rate | 7A — 50 min fast charge |
| X9 Plus Charge Rate | 17A — 20 min flash charge |
| Dock Method | Rear infrared sensor — no reversing required |
| Durability & Awards | |
| Water Resistance | IPX6 — washdown capable |
| Rain Detection | Auto — returns to dock |
| Auto Recharge | Yes |
| Award | iF Design Award 2026 |
| Commercial Features | |
| Fleet Management | Yes — multi-unit via Sunseeker commercial portal |
| Ideal Use Cases | Estate lawns, municipal parks, commercial properties, golf course rough |
What's in the Box
- Robotic Lawn Mower × 1
- Charging Station × 1 (model-specific)
- RTK Base Station × 1
- Charger for RTK Base Station × 1
- User's Manual × 1
- EdgeZero™ Trimming Attachment — X9 Plus: Included / X9: Optional add-on
