Description
Capable of driving four displays from one signal, the Matrox® QuadHead2Go™ Q185 multi-monitor controller appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any DisplayPort™ video source—reliably delivering flawless image quality across expansive video wall displays, suited for control rooms.
- Drive up to four pristine quality Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and YUV 4:4:4 color support.
- Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
- Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.

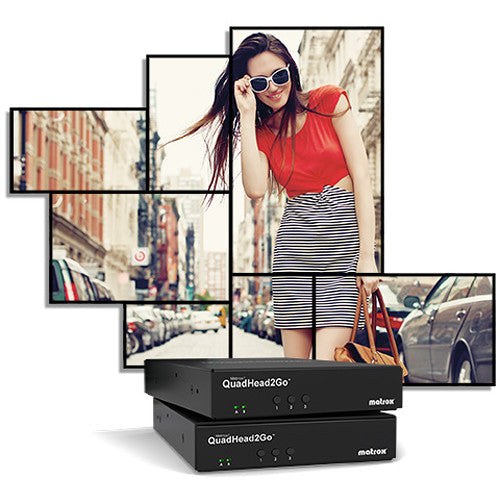

- Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

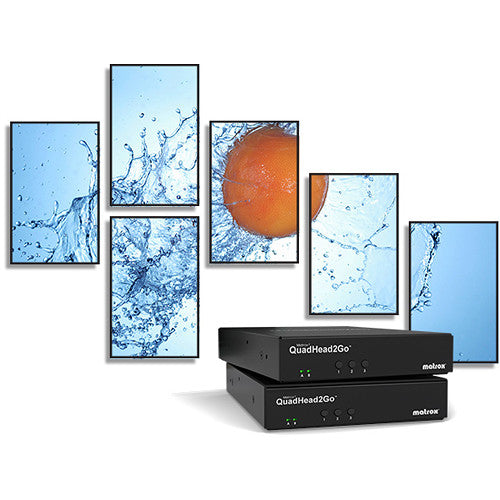

- Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale, captivating video walls.
Capture and display HDCP-protected content with QuadHead2Go multi-monitor controllers.
- Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape—set up without installing software or even connecting a video source.
- Design any custom configuration/array with the intuitive Matrox PowerWall software.
- Ensure compatibility with professional-grade graphics cards and media players with native DisplayPort™ 1.2 support.
- Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
- Select and set the display layout by cycling through pre-set configurations* using an on-device button—there is no need to install software when using a pre-set configuration.
- Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.
In the Box

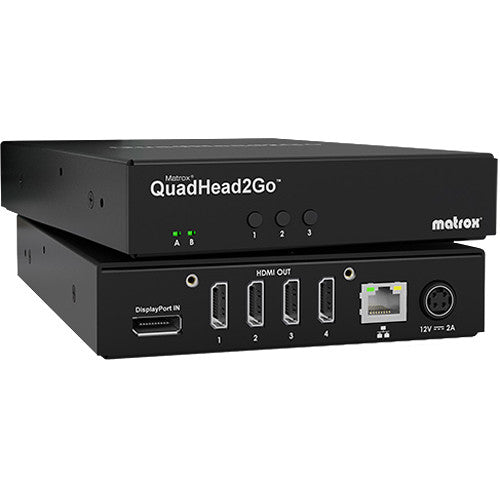

- Matrox QuadHead2Go Multi-Monitor Controller Appliance
- 12 VDC Power Supply
- 6' Power Cable Set (US, EU, UK, AU/NZ)
- Limited 3-Year Manufacturer Warranty
QuadHead2Go multi-monitor controller appliance |
|||
| Product | |||
|---|---|---|---|
| Product type | 1 input and 4 outputs | ||
| Form factor | Appliance (p/n: Q2G-DP4K) | ||
| Input connector (video & audio support) | 1 x DisplayPort 1.2 | ||
| Max input resolutions | 3840x2160 @60Hz, 3840x2160 @30Hz, 7680x1080 @60Hz, 7680x1080 @30Hz, 1920x4320 @60Hz, 1920x4320 @30Hz Other input resolutions including 8Kx8K are supported. Contact Matrox for more details. |
||
| Output connector (video & audio support) | 4 x HDMI | ||
| Max output resolutions | 1920x1080 @60Hz, 1920x1080 @30Hz, 1920x1200 @60Hz, 1920x1200 @30Hz Other output resolutions are supported. Contact Matrox for more details. |
||
| Memory | 1 GB | ||
| Configurations | |||
| Supported configurations | 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations | ||
| Non-rectangular/artistic video walls support | Yes | ||
| Rotation | Yes. Support for 90, 180, 270 degrees | ||
| Multi-unit support | Yes | ||
| Bezel management | Yes | ||
| Clone mode | Yes | ||
| HDCP support | Yes | ||
| Video & audio processing | |||
| Video scaling | Matrox’s advanced multi-channel Video Scaling Engine | ||
| Video rotation | Yes. Support for 90, 180, 270 degrees | ||
| Video cropping | Yes | ||
| Audio format | AAC, PCM, Stereo, and Mono | ||
| Audio sampling rate | 44.1 KHz and 48 KHz 16-bit stereo |
||
| Networking interface | |||
| Standard | Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex | ||
| Connector | RJ45 | ||
| IP version | IPv4/IPv6* | ||
| IP addressing | DHCP (default) and Static IP | ||
| Control & update protocols | |||
| Control interface | 1 x 10/100/1000 Base-T RJ45 Ethernet port | ||
| Command & control protocols | HTTP/HTTPS UPnP (discovery) mDNS and DNS-SD (discovery) |
||
| Firmware update | Via network interface | ||
| Color space | |||
| Input color space |
RGB: 8:8:8 (24 bits per pixel) YUV: 4:4:4, 4:2:2 (8 bits per component) |
||
| Output color space | RGB: 8:8:8 (24 bits per pixel) | ||
| Environmental & power conditions | |||
| Operating conditions | Temperature: 0 to 45 °C/32 to 113 °F Humidity: 20% to 80% (non-condensing) |
||
| Storage conditions | Temperature: -40 to 70 °C/-40 to 158 °F Humidity: 5% to 95% (non-condensing) |
||
| Power supply | 100-240 VAC in, 12 VDC out, 42 W DIN4 locking power connector |
||
| Maximum power consumption | 15 W | ||
| Hardware | |||
| Dimensions (WxHxD)/weight | 5.50 x 1.25 x 7.13 in (13.97 x 3.18 x 18.11 cm)/494 g | ||
| Hardware included | 4 x 6 feet power cables for US, EU, UK, Aus/Nz 1x 12 V, 3.5 A, 42 W external power supply with DIN 4 connector |
||
| Regulatory/environmental compliance | EMC Class A: FCC, CE, KC, RCM | ||
| Warranty | 3 years | ||
| Software | |||
| Matrox PowerWall | Free software available online. See Matrox PowerWall datasheet for more details. |
||
| Matrox QuadHead2Go REST API |
Available for application development. Contact Matrox for more details. |
||
| Matrox PowerDesk | Not supported | ||
| Accessories (Sold separately) | |||
| Optional hardware | Rackmount Kit (RMK-19TR-A) VESA bracket (RMK-6BRKT-A) Secure Cable Solution (SK-Q2G-A) |
||
