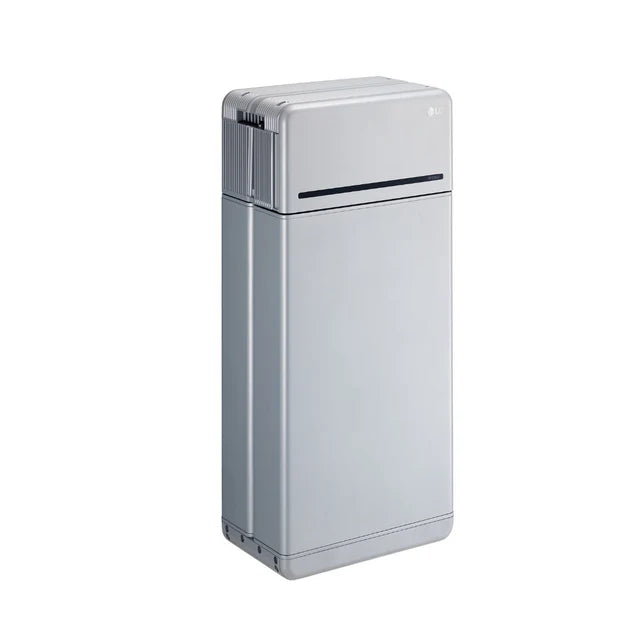

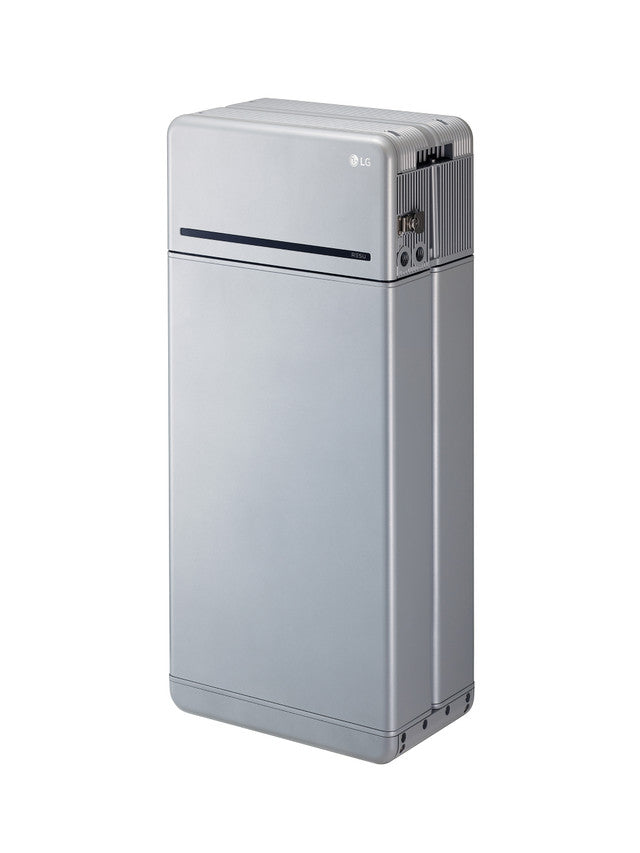

LG RESU16H Prime - 16 kWh High-Voltage Lithium Battery for Home Energy Storage
With stackable architecture, compatibility across leading inverter brands, and 8,000-cycle longevity, LG RESU16H Prime solar battery delivers tier-one reliability for households transitioning from grid dependence to true energy autonomy.
- Modular Configuration
- Flexible Inverter Pairing
- Scalable to 32 kWh
About the Product
The LG RESU16H Prime solar battery combines advanced lithium ion NMC technology with intelligent battery management for residential and light commercial installations. Engineered with dual battery modules and a dedicated control unit, this solar battery enables professional installers to optimize placement in tight spaces.
Unlike single-enclosure competitors, this split design distributes 351 pounds across three manageable components for easier handling during installation. Each 16kWh module delivers 7kW continuous power with 11kW peak surge capability, maintaining critical loads during grid outages. Installation flexibility extends to climate extremes. Natural convection cooling eliminates mechanical fans, removing a common failure point while enabling silent operation in living spaces.
Operating within a 350-450V DC range, the RESU16H Prime solar battery integrates with high-voltage string inverters. The onboard DC-DC converter achieves over 90% round-trip efficiency, minimizing conversion losses during charge-discharge cycles.
LG's 10-year warranty covers both manufacturing defects and capacity degradation, guaranteeing 70% retention after 54MWh of energy throughput—equivalent to 3,375 full discharge cycles. The parallel expansion option future-proofs installations, allowing homeowners to double capacity to 32kWh without replacing existing equipment or rewiring inverter connections.
Specifications
|
Type |
Lithium Ion |
|
Nominal Capacity |
64.1Ah |
|
Energy |
16kWh |
|
Cycle Life |
8,000 cycles @77°F (25°C) 0.5C/0.5C |
|
Operating Voltage |
350 - 450V (DC) |
|
Communication Interfaces |
CAN/RS485/RS232 |
|
Scalable |
Up to 2 units in parallel |
| Max. Charge/Discharge Current | 20A@350V |
| Max Charge/Discharge Power | 7 kW |
| Peak Current (Only Discharging) | 32.8A for 10 Sec. |
|
Environment |
Indoor, Outdoor |
|
Charging Temperature |
14°F to 122°F |
|
Discharging Temperature |
-4°F to 122°F |
|
Storage Temperature |
-4°F to 113°F (for six months) |
|
Altitude |
Maximum 6,562 ft |
|
Cooling Method |
Natural Convection |
|
IP Rating |
IP55 |
|
Dimensions |
42.8 x 19.8 x 11.6 inches |
|
Weight |
351lbs |
|
Installation |
Wall mount or Floor mount |
