Description

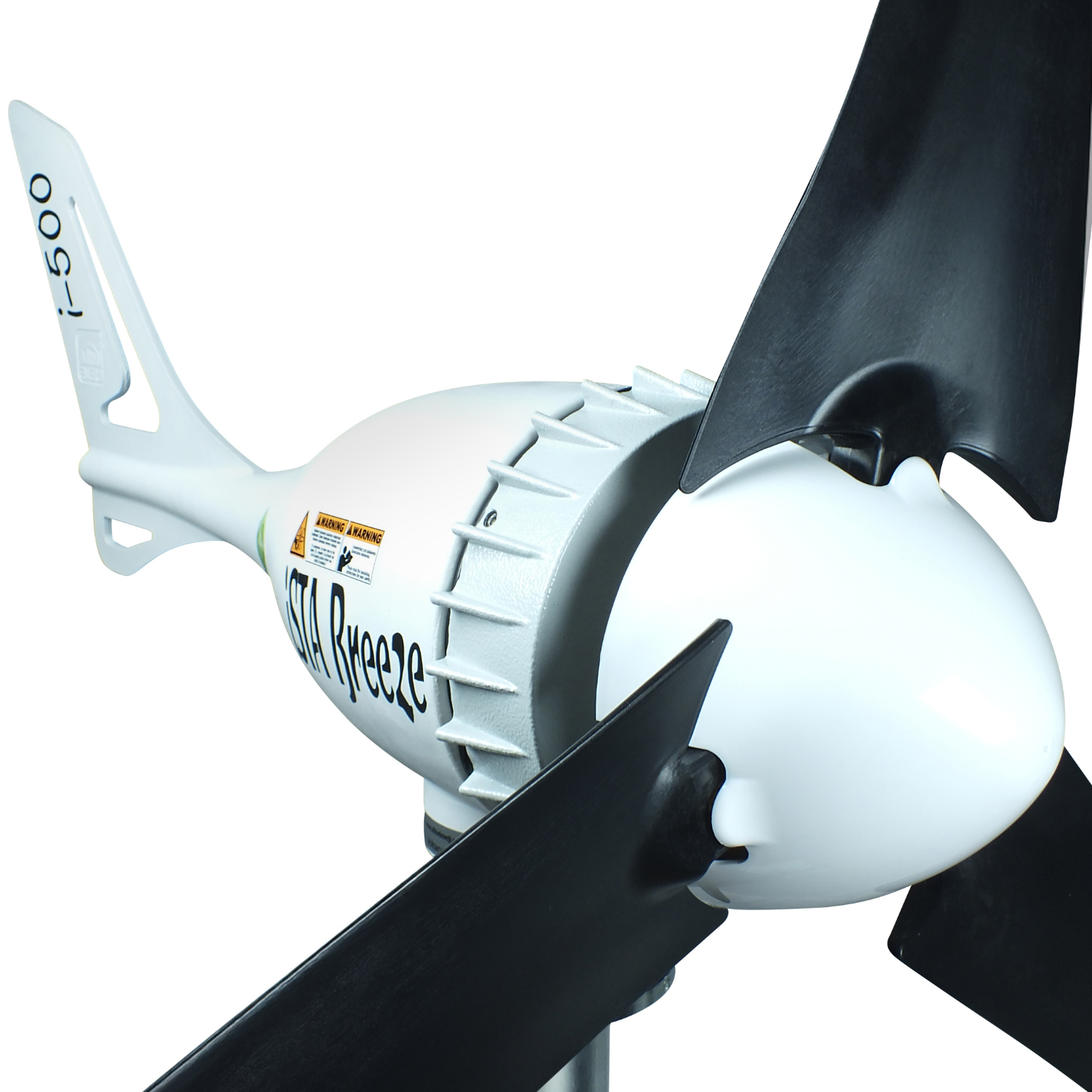

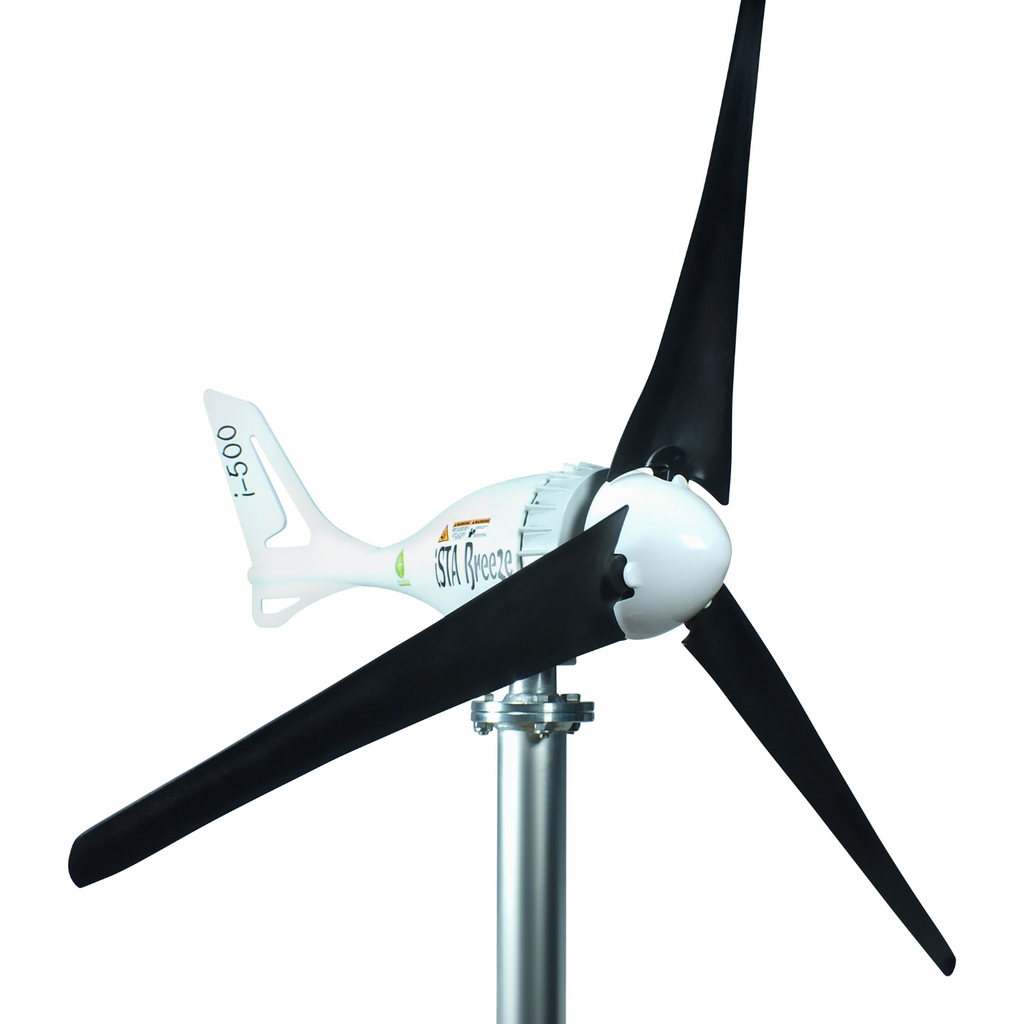

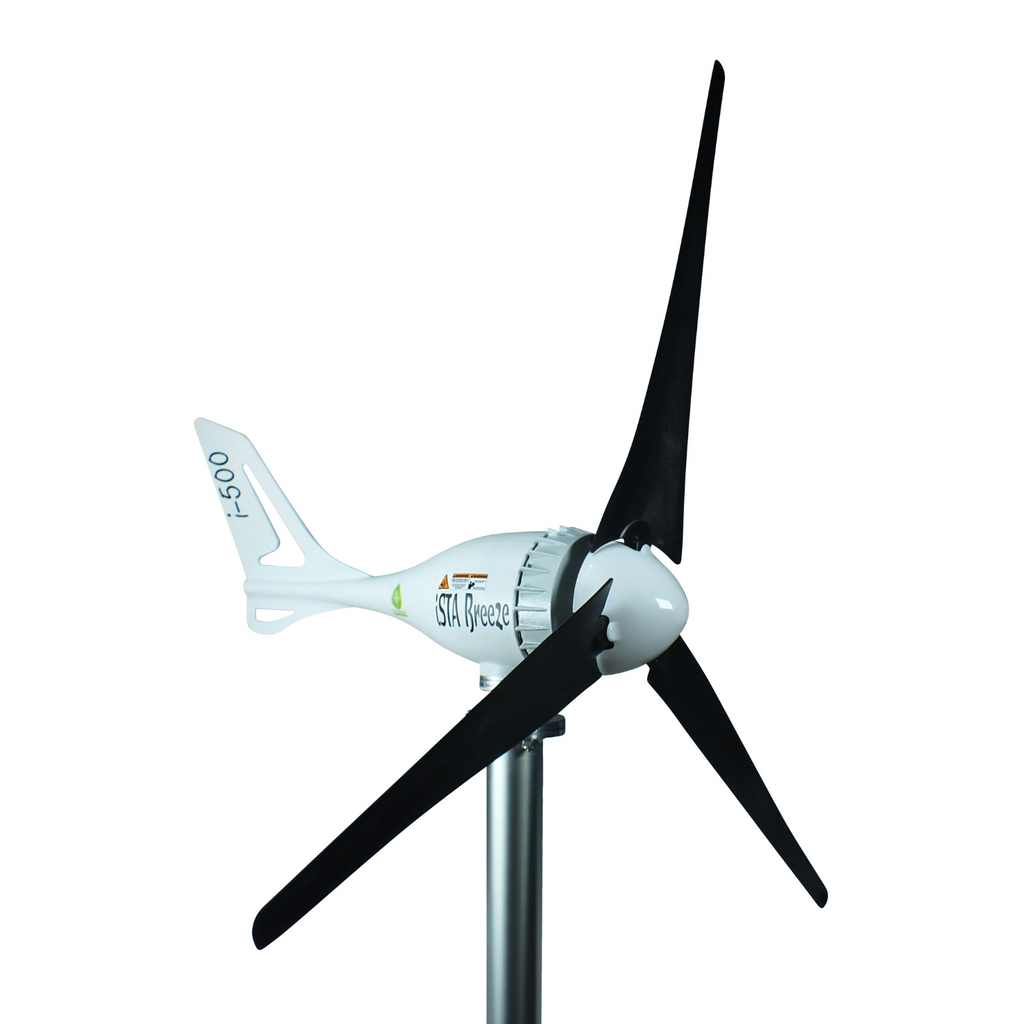

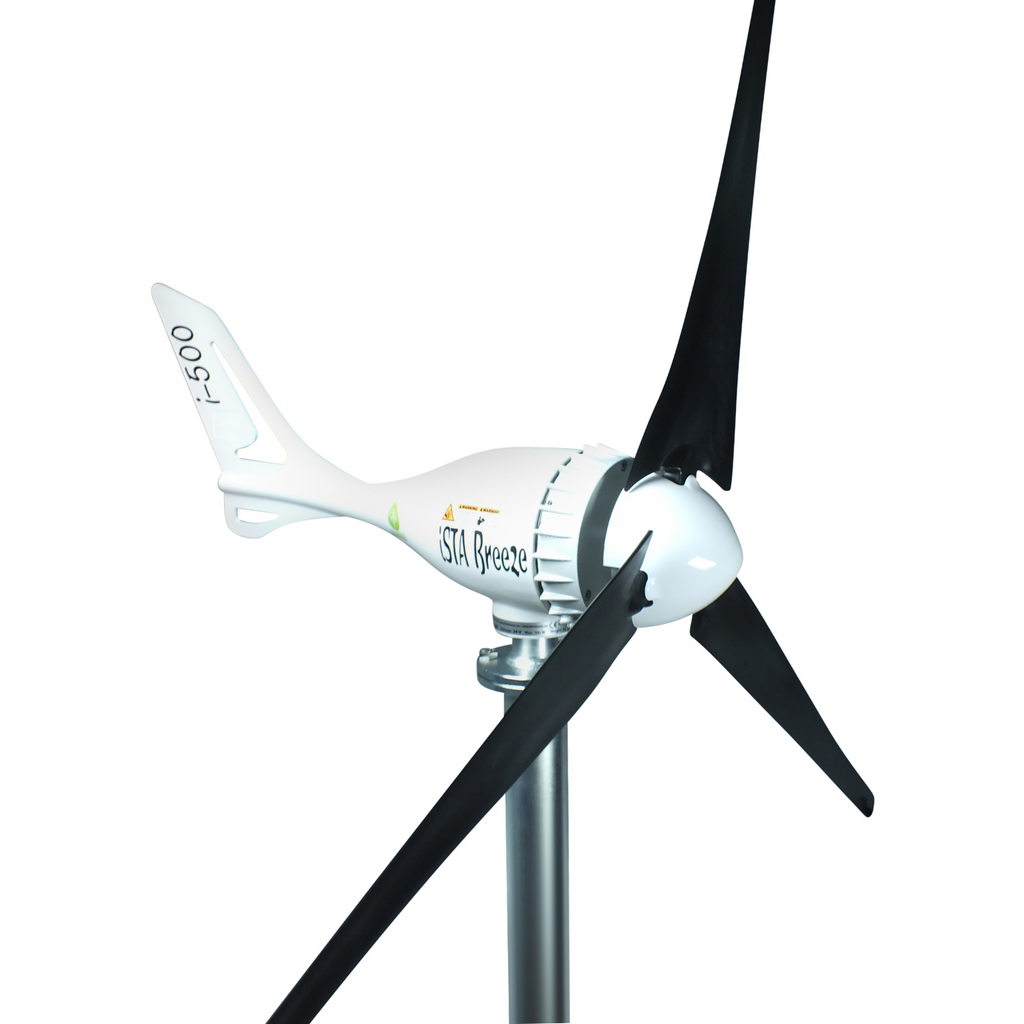

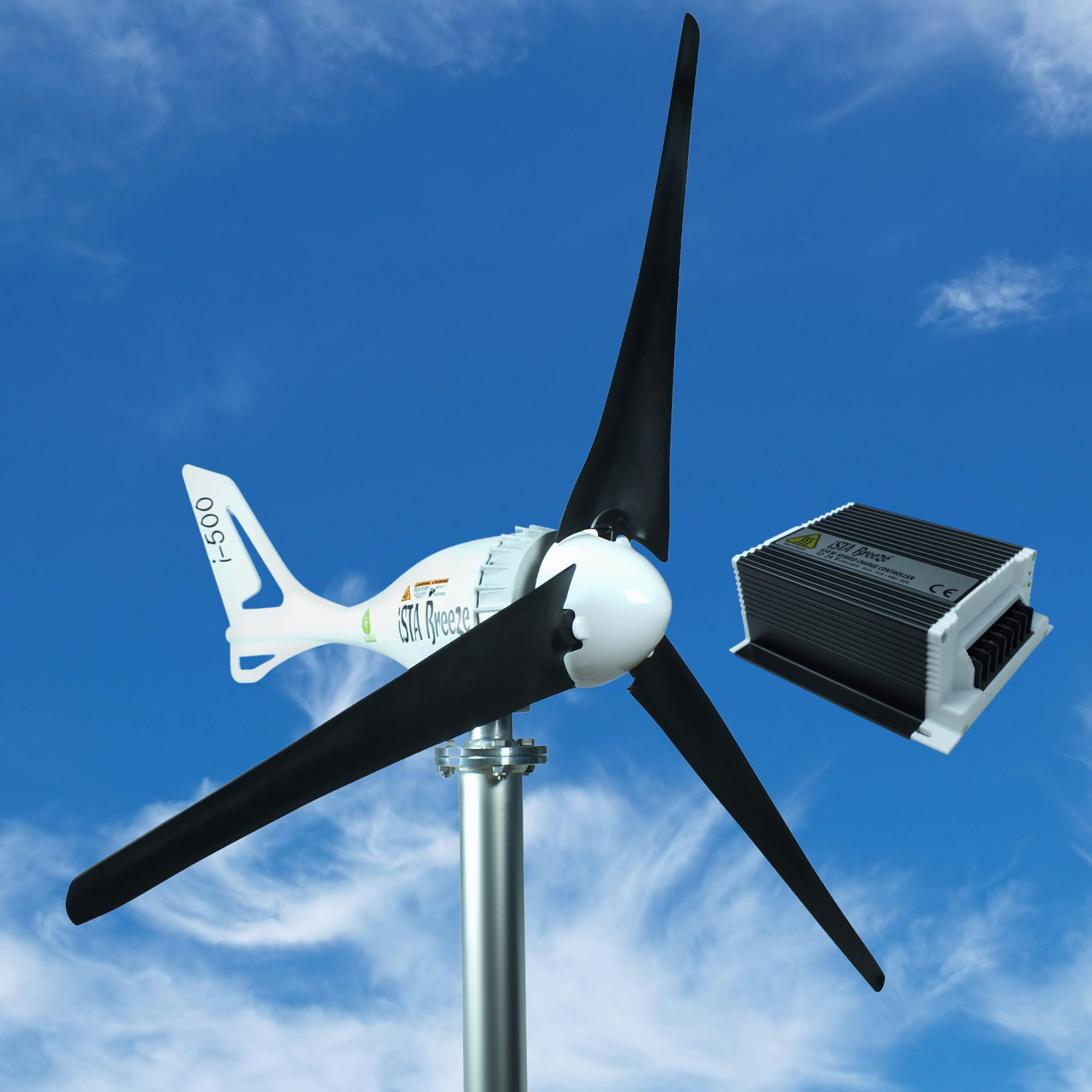

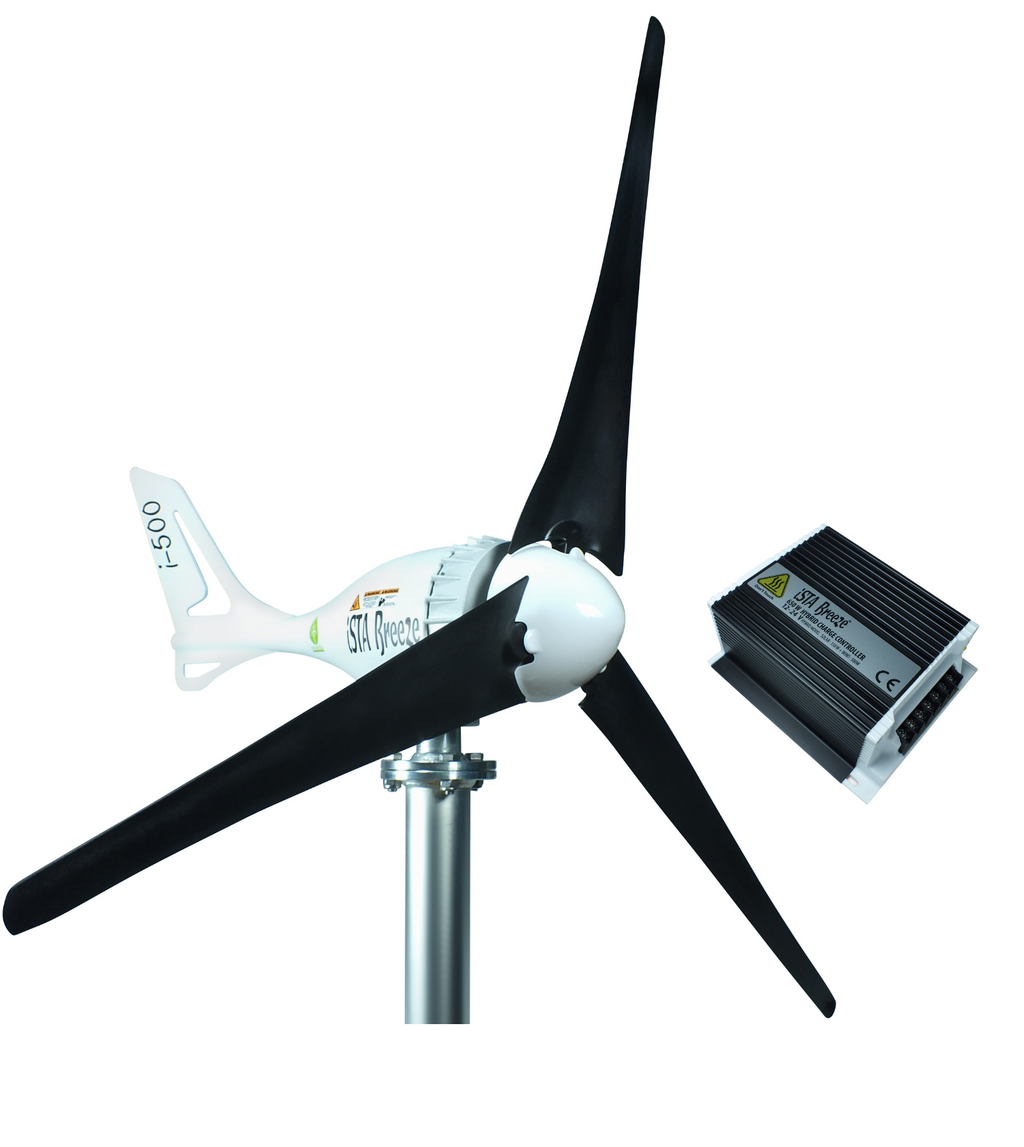

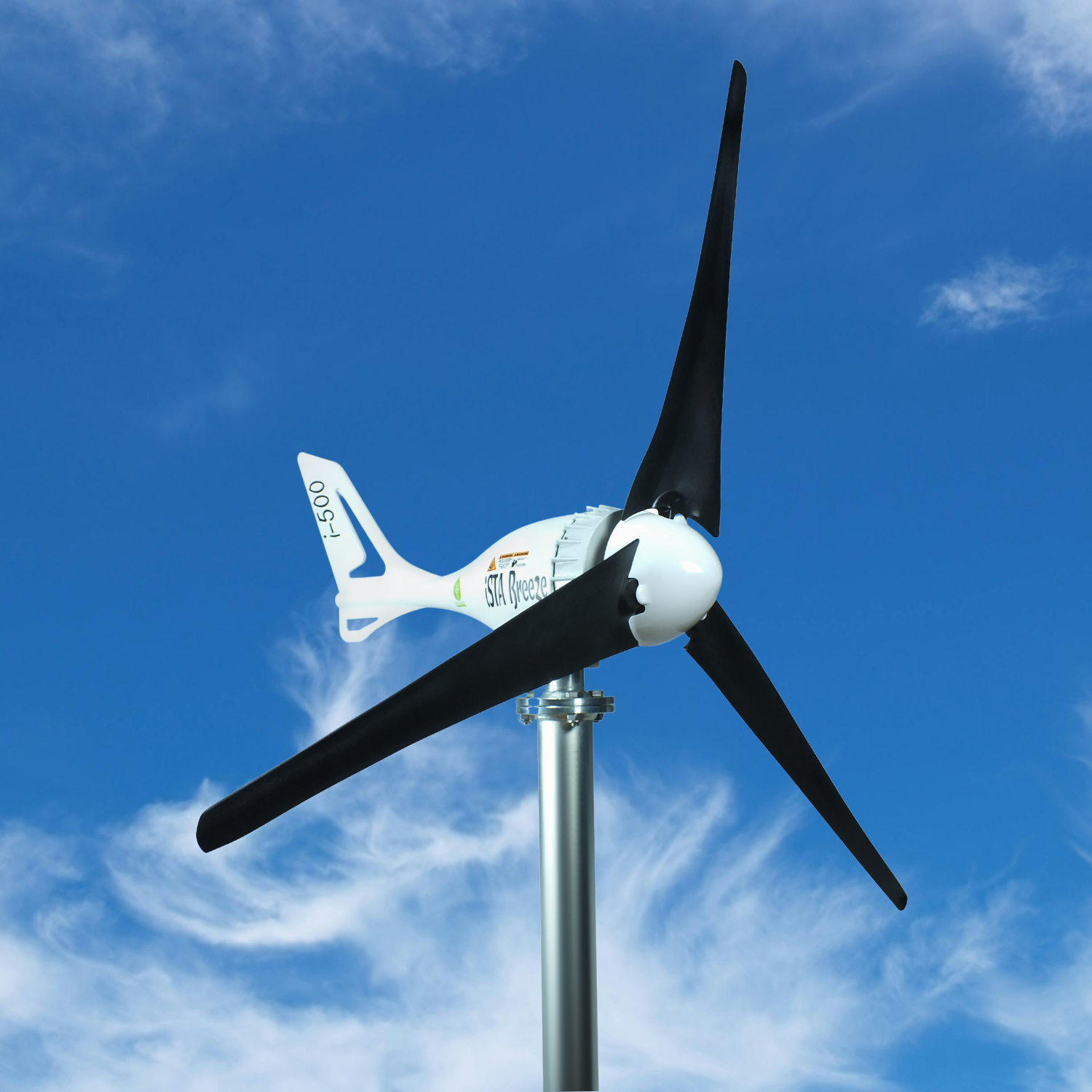

IstaBreeze · Complete Wind System

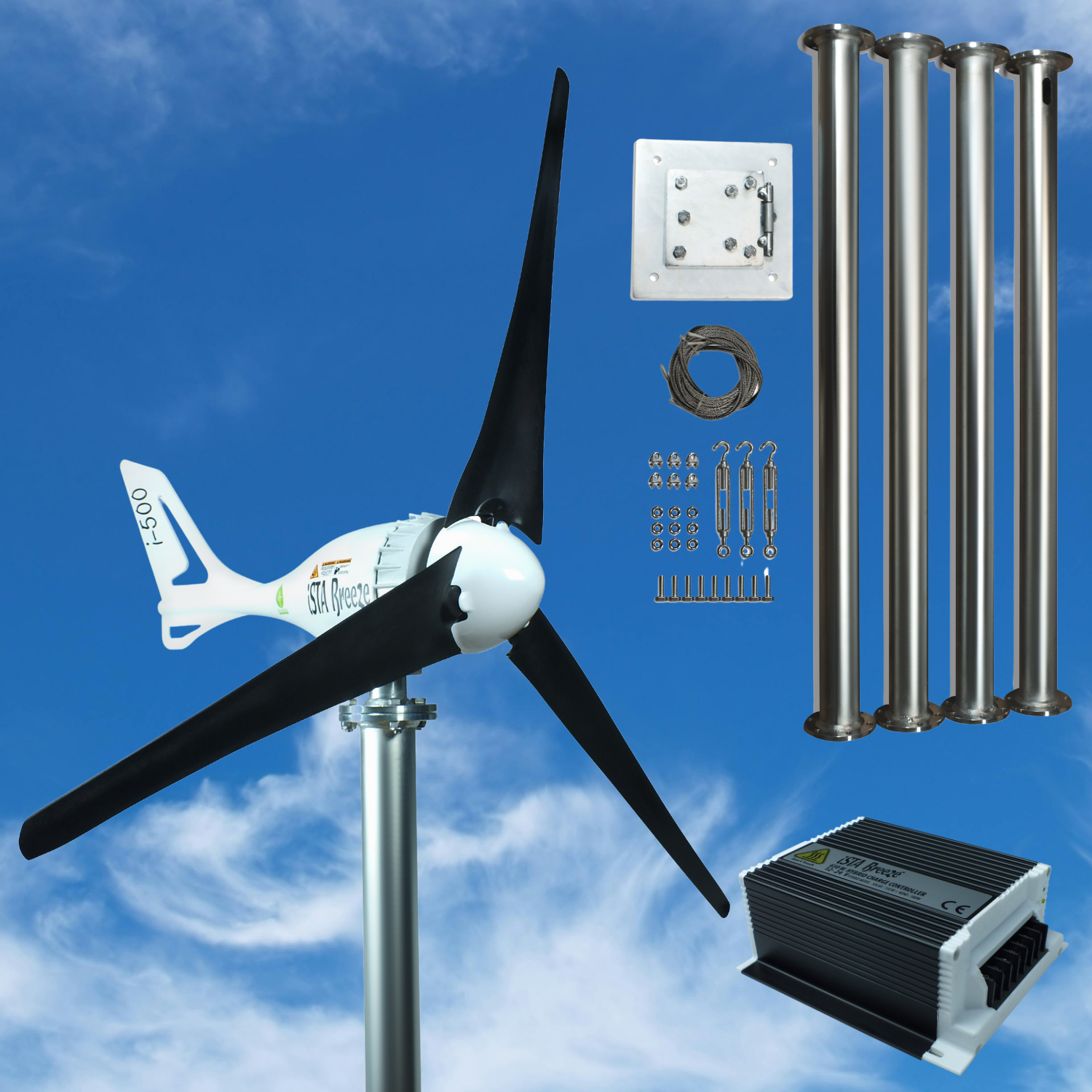

Kit i-500W 12V/24V Wind Turbine, Hybrid Charge Controller & Tower
| Rated Power 420W | Tower Height 4 m | Controller Type Hybrid | Package Weight 6 kg |

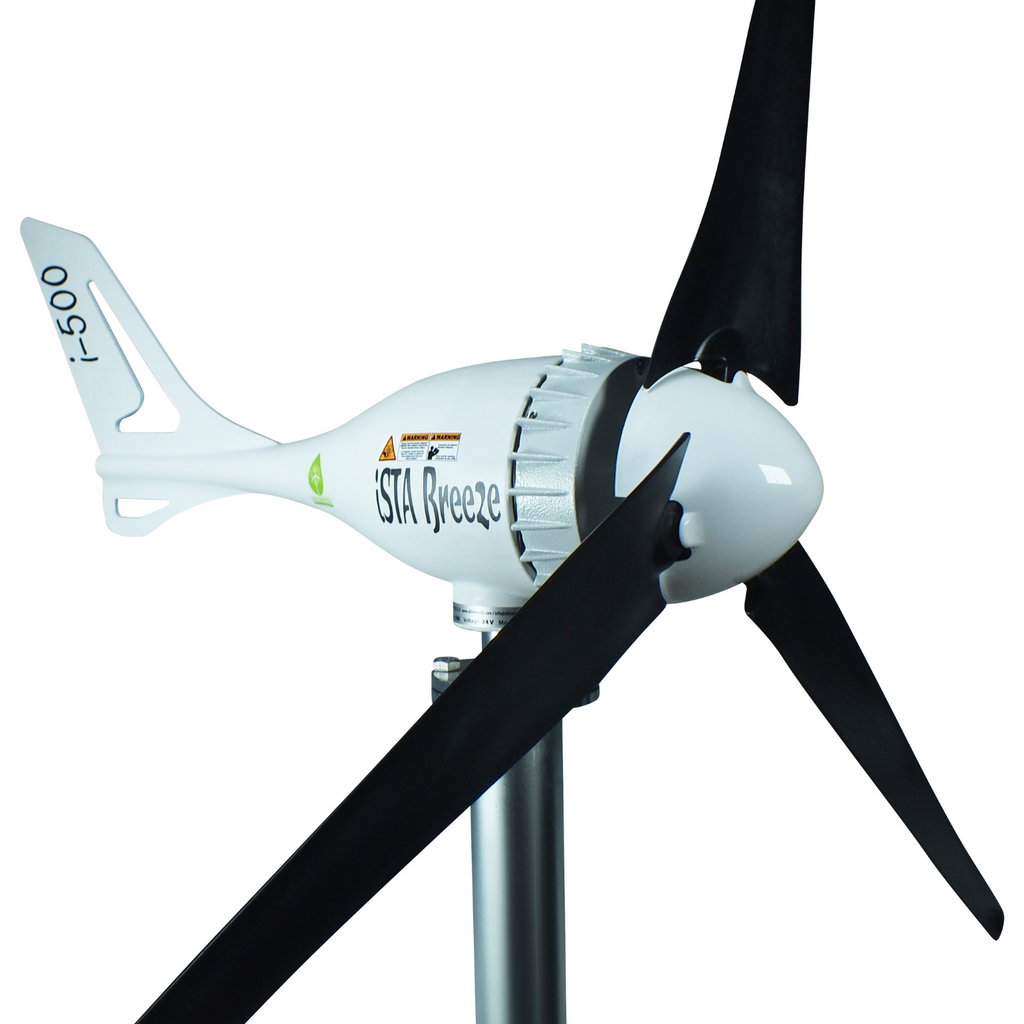

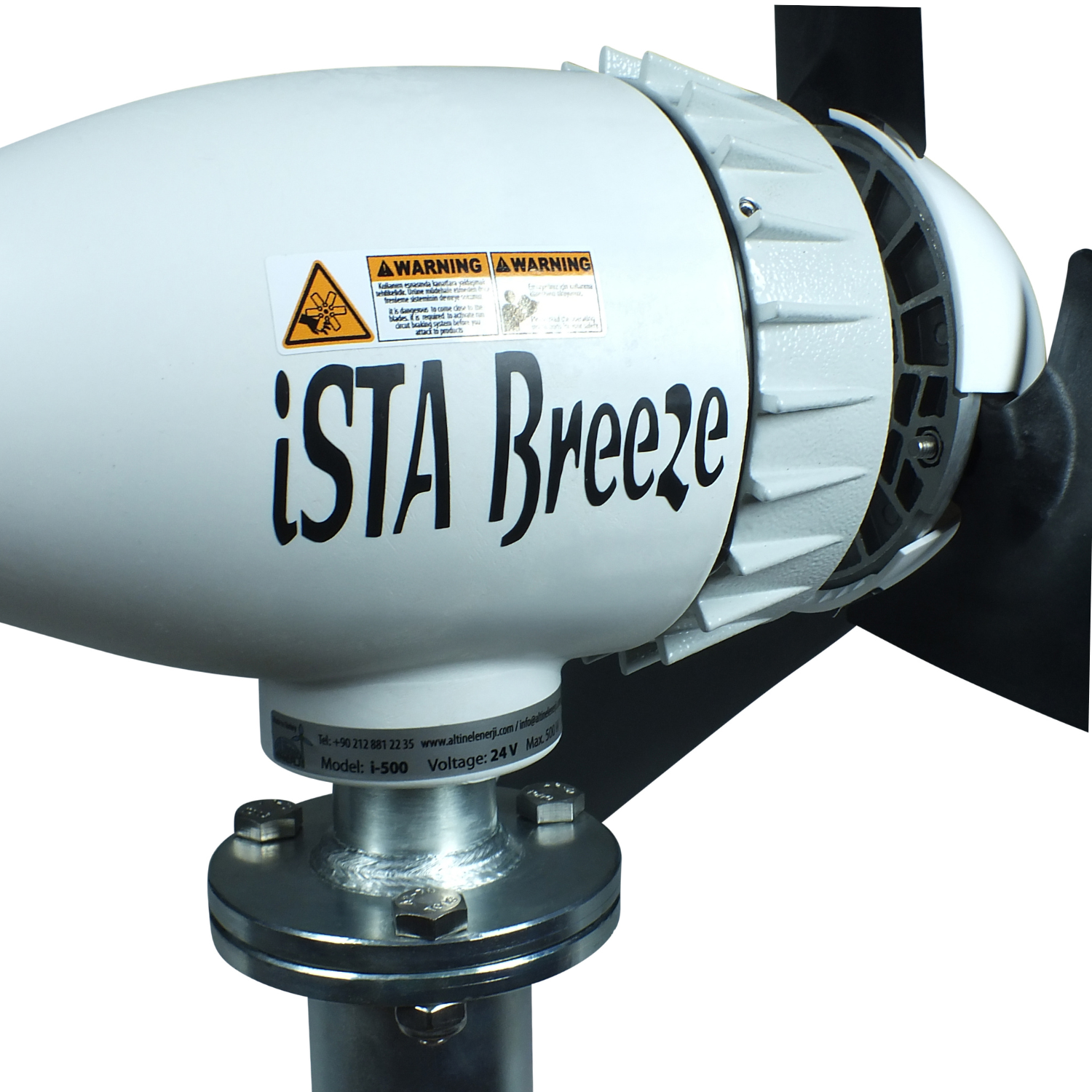

The IstaBreeze i-500 is the smallest complete kit in the lineup — a lightweight entry point into wind power for compact sites, cabins, or as a supplement to an existing system. The generator shaft runs in two encapsulated, permanently lubricated stainless steel ball bearings, with a friction-free sealing disc at the front bearing to keep out moisture and dust. Includes a hybrid controller that accepts both wind and solar input, so panels can be added to the same circuit later.
Full Specifications
| Turbine — Electrical | |
| Rated Power | 420W |
| Maximum Power | 500W |
| Current Output | 12V=40A · 24V=20A |
| Body Material | Composite, aluminum generator body |
| Wind Performance | |
| Initial (Cut-In) Wind Speed | 3 m/s |
| Maximum Wind Speed | 15–16 m/s |
| Blade Specifications | |
| Blade Material | Composite |
| Blade Weight | 190g |
| Blade Length / Rotor Diameter | 50 cm / 103 cm |
| Noise Level | 40 dB |
| Hybrid Charge Controller (650 Model) | |
| Nominal Output | 650W |
| Max Wind Input | 500W |
| Max Solar Input | 150W |
| Available Voltages | 12V or 24V |
| Tower Set | |
| Height | 4 m (extendable to 10 m) |
| Outer Diameter | 42 mm |
| System Requirements | |
| Compatible Battery Bank | 1,800W – 2,400W |

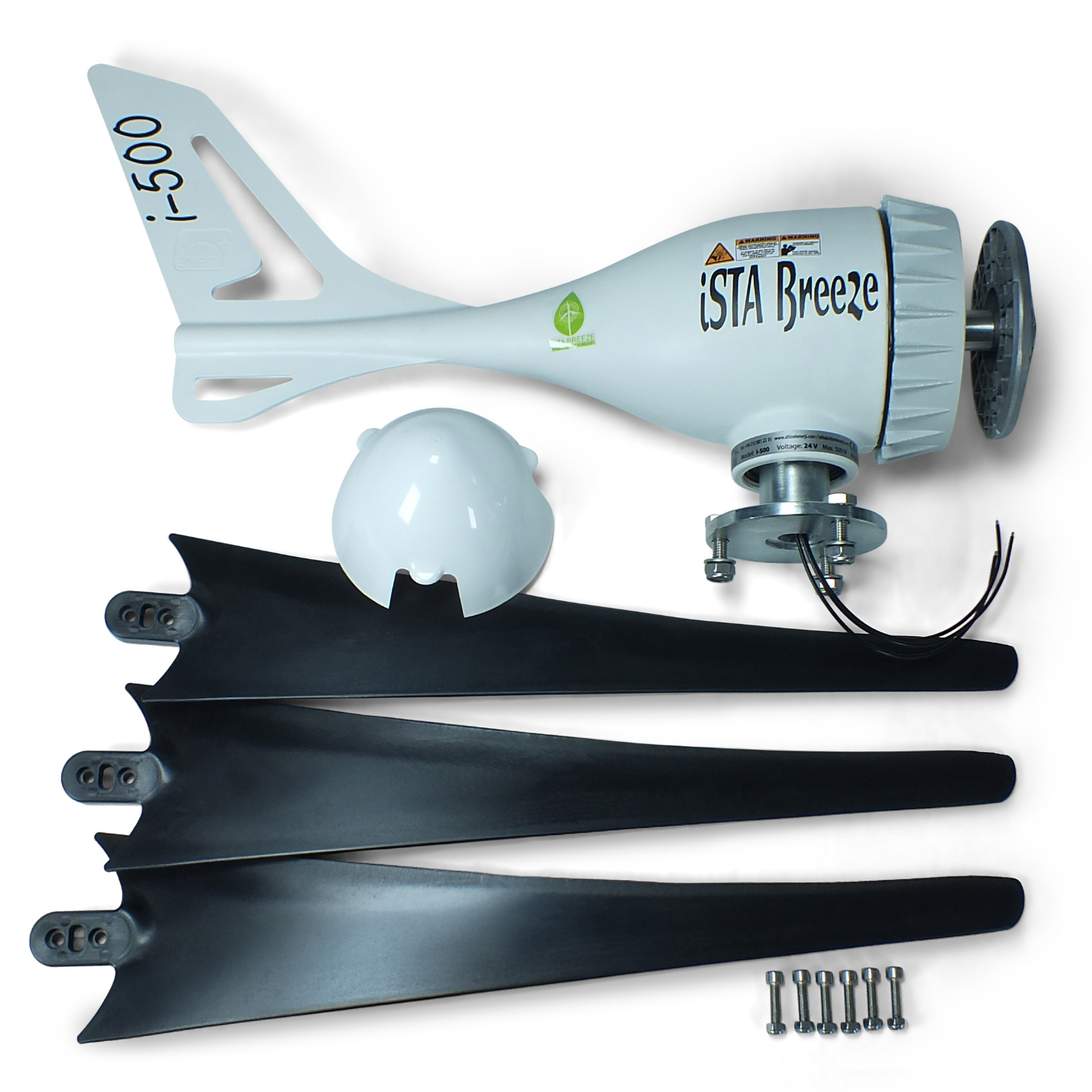

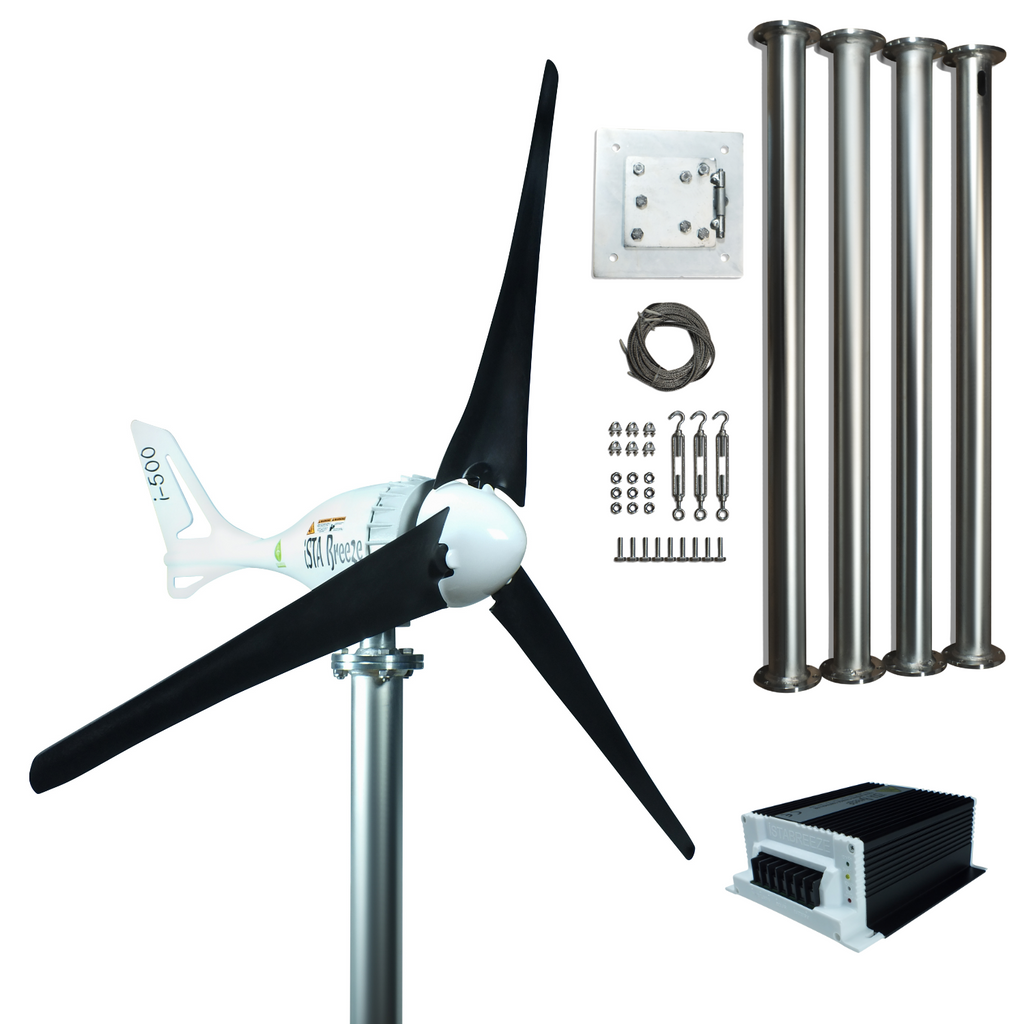

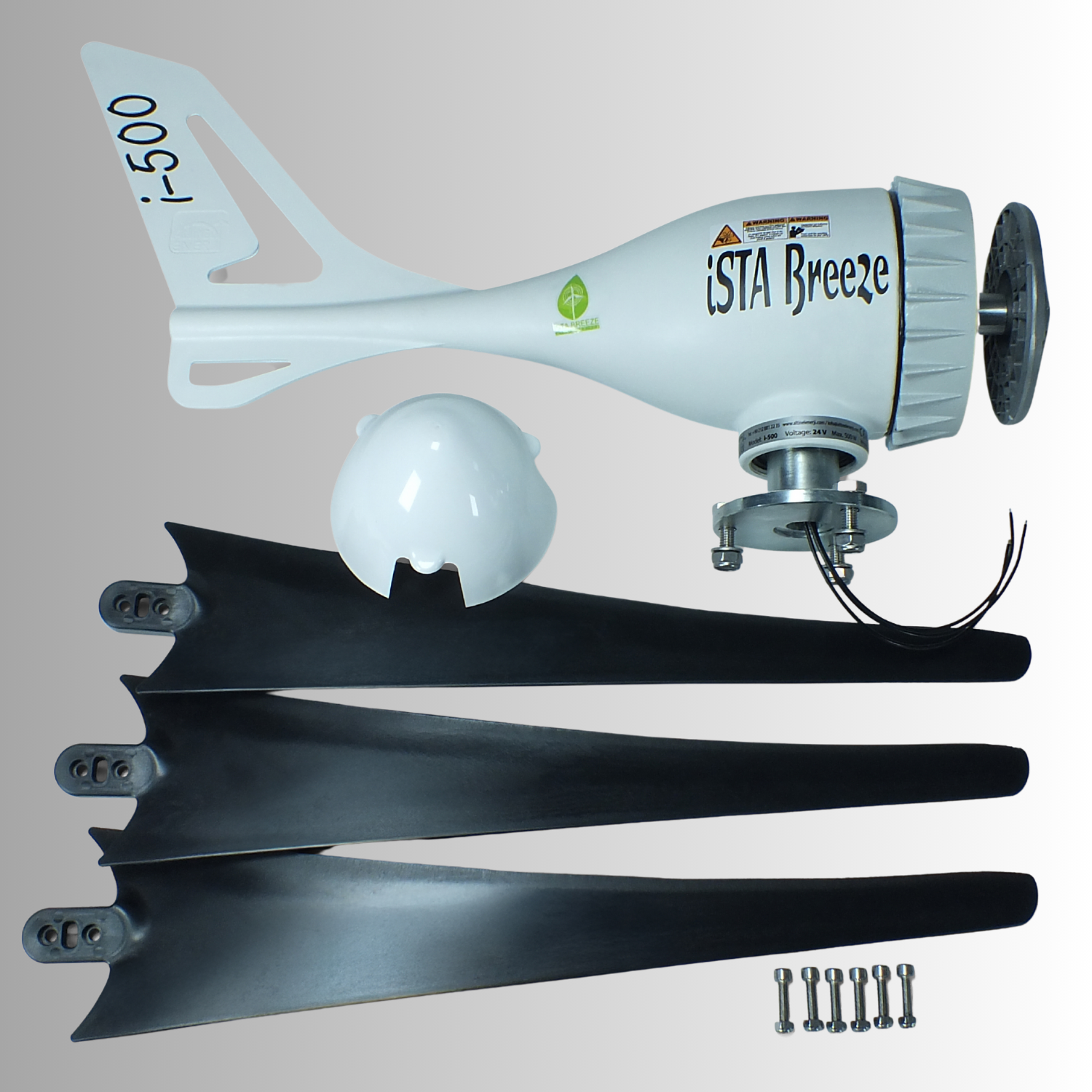

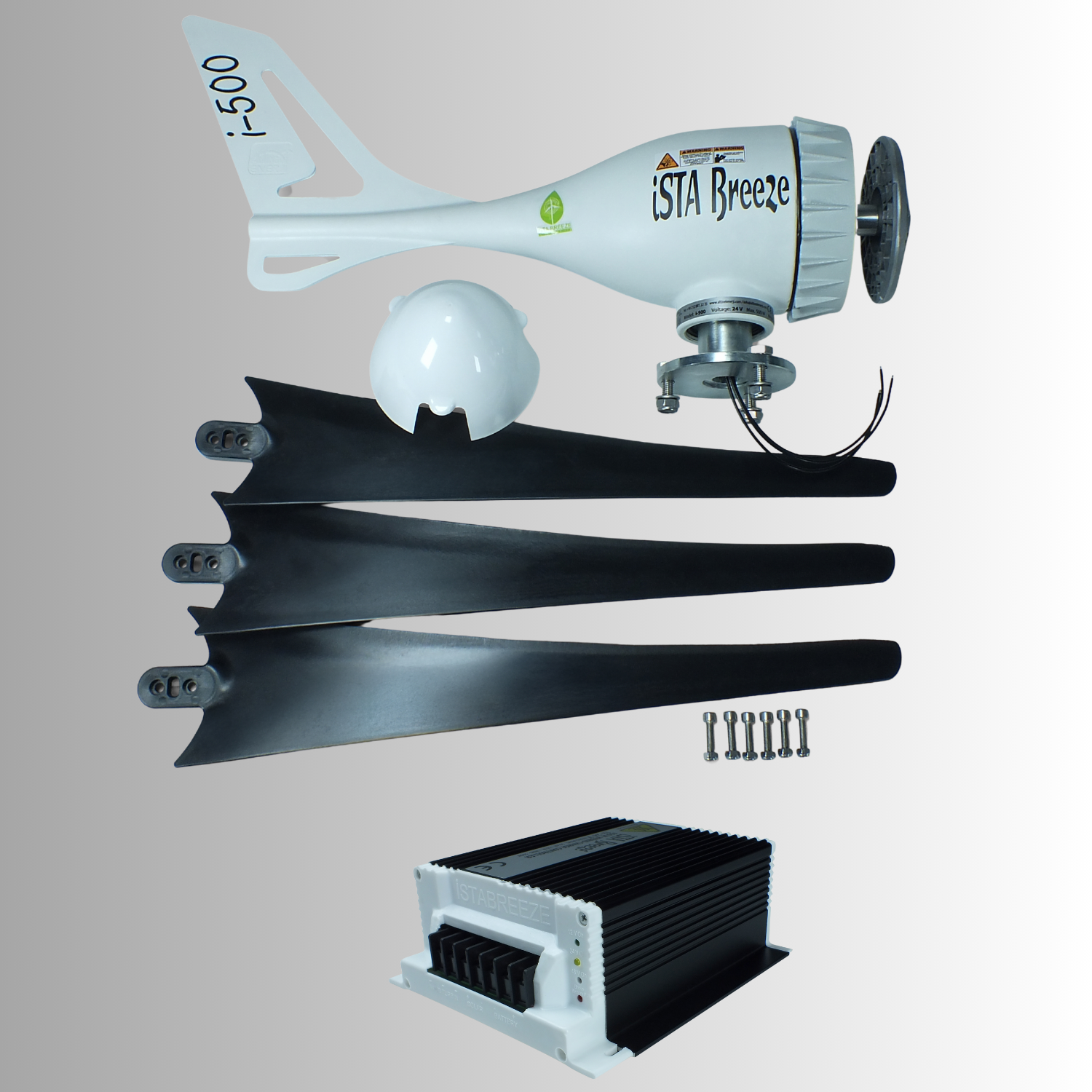

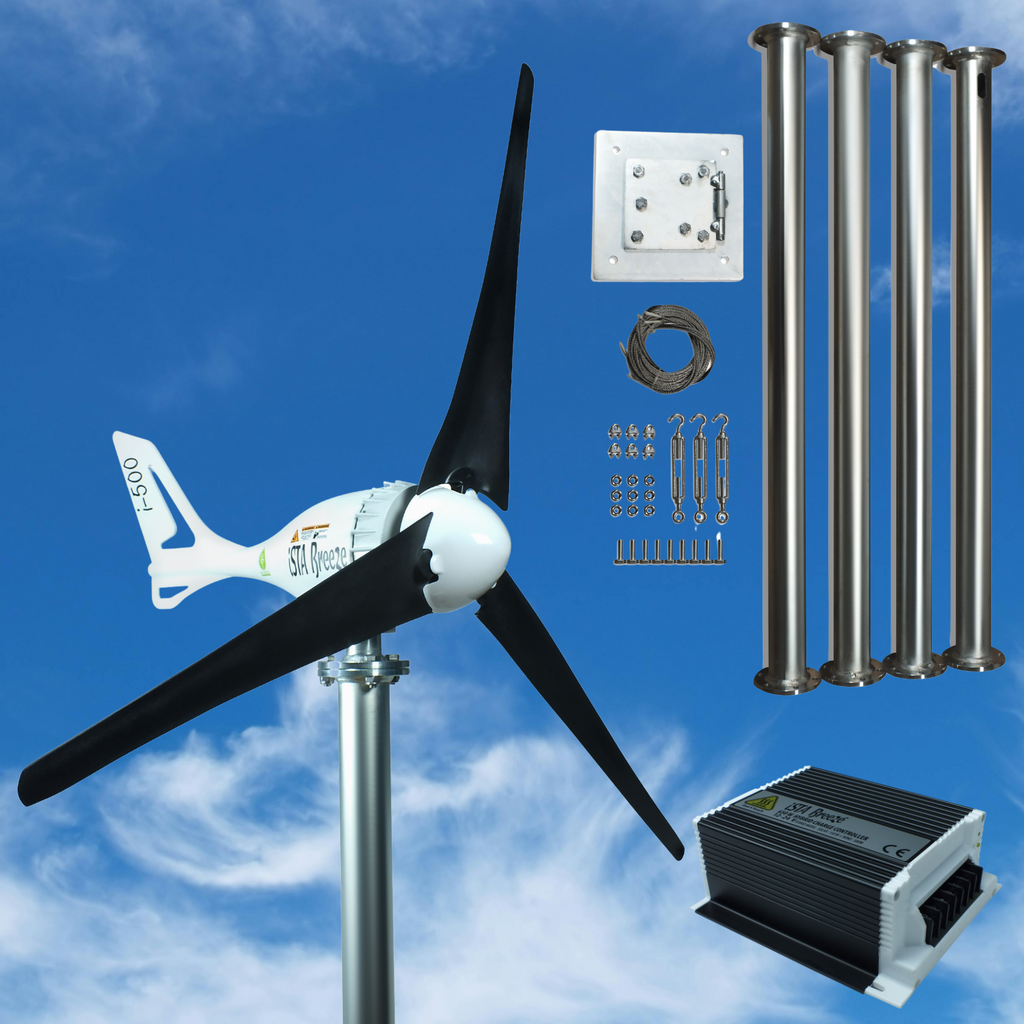

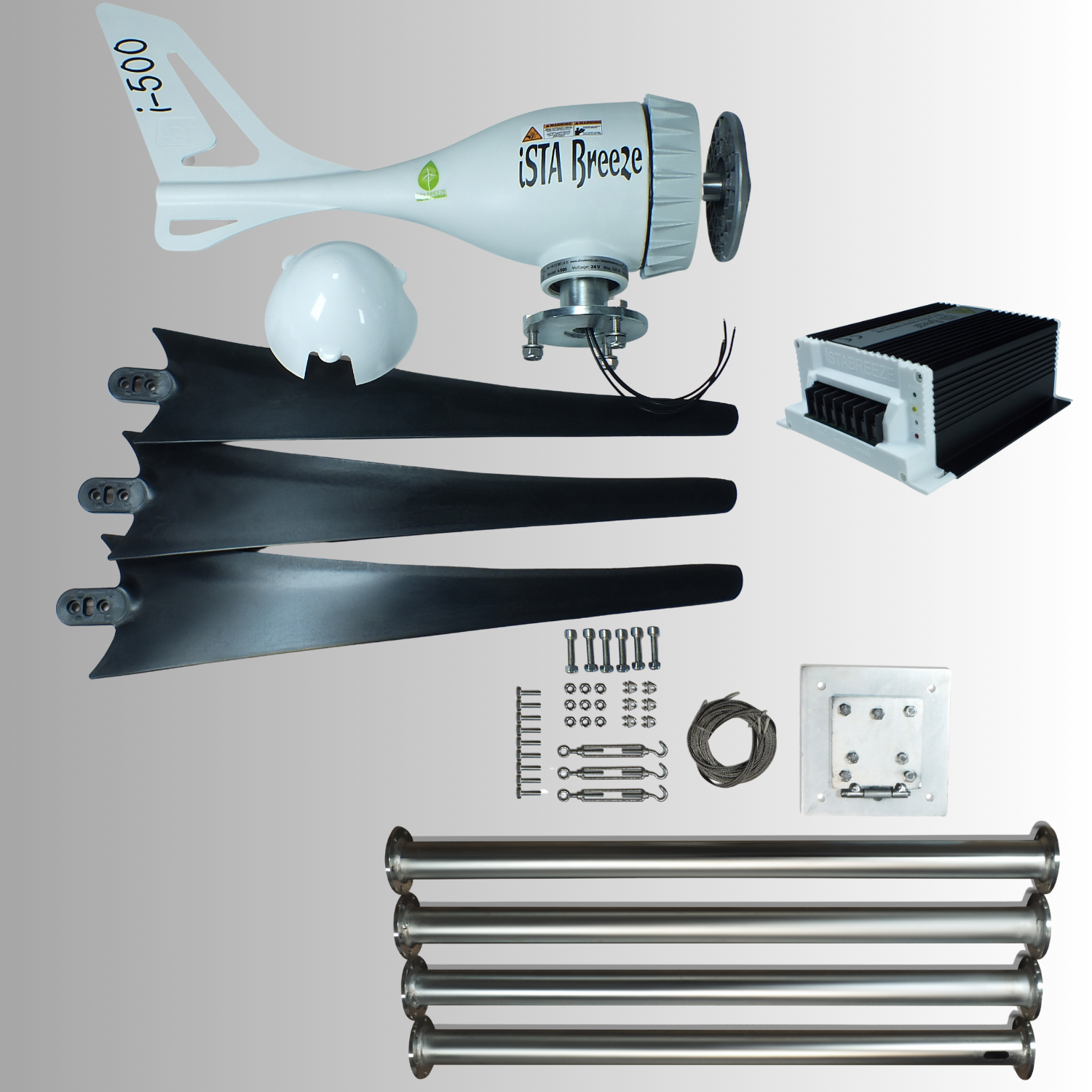

What's in the Box
- Wind turbine generator ×1
- Rotor blades ×3
- Hybrid charge controller ×1 (12V or 24V)
- 4-meter folding tower set (if selected)

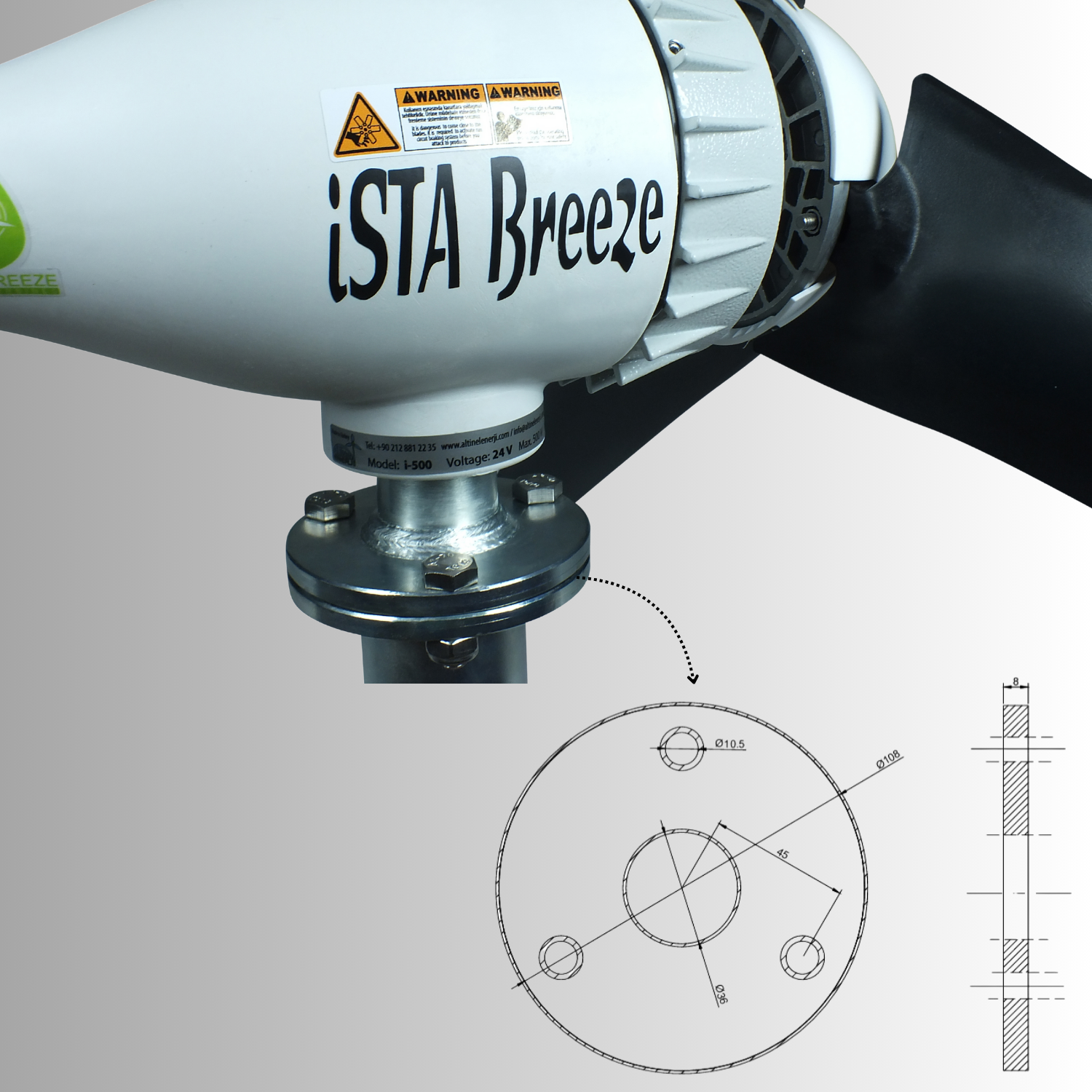

- Nose cone, mounting flange ×1 each
- Connection screw set ×1
- Manual book ×1
Controller applies automatic braking when the battery is sufficiently charged; manual braking is recommended during storm conditions. Backed by a 2-year manufacturer's warranty.
