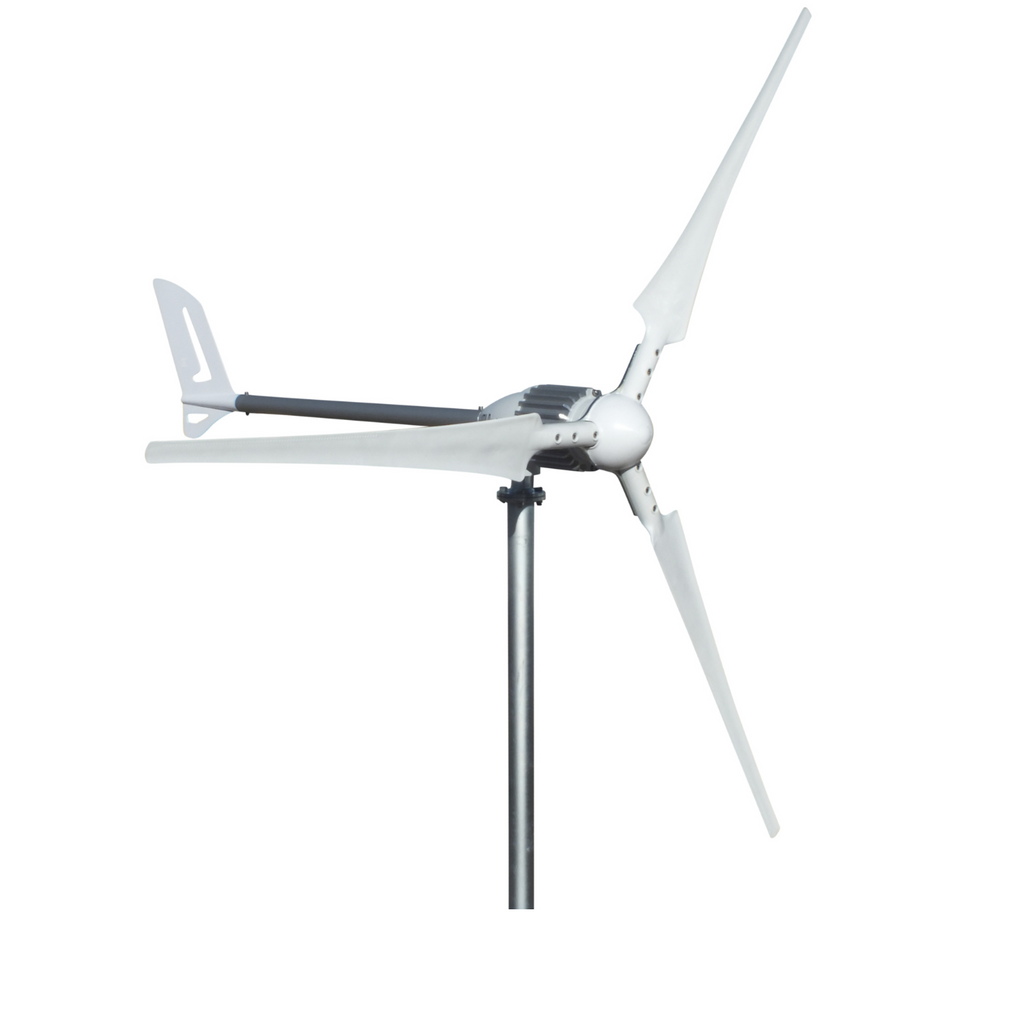

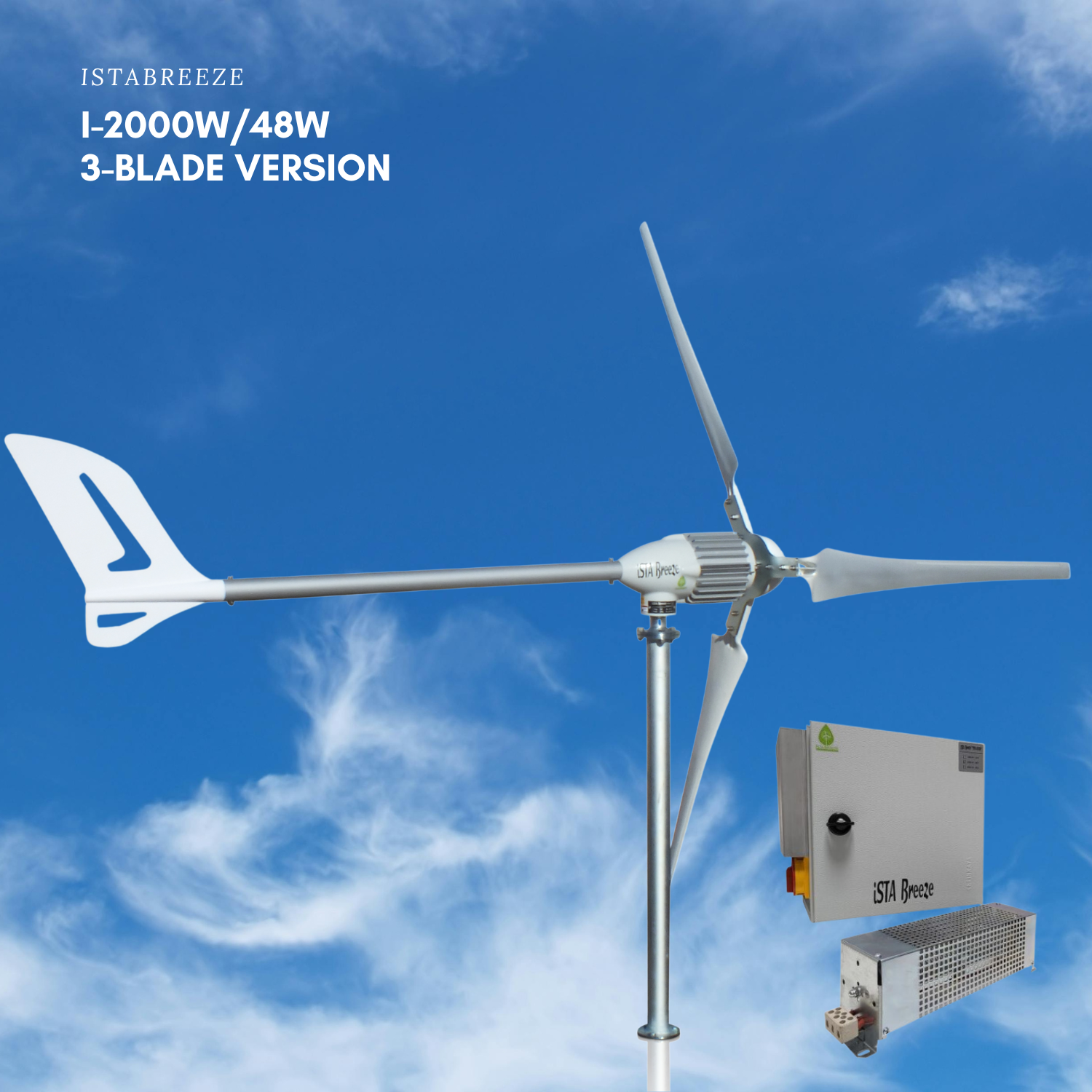

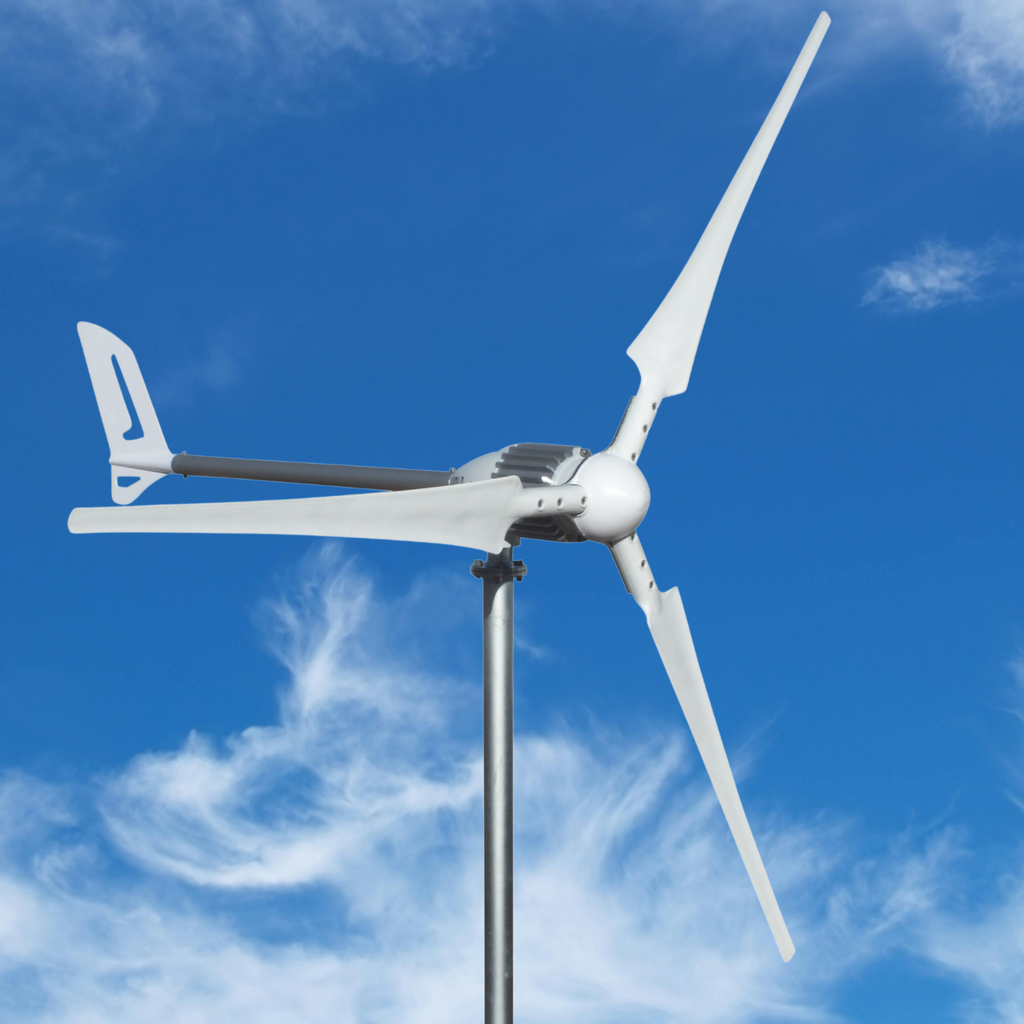

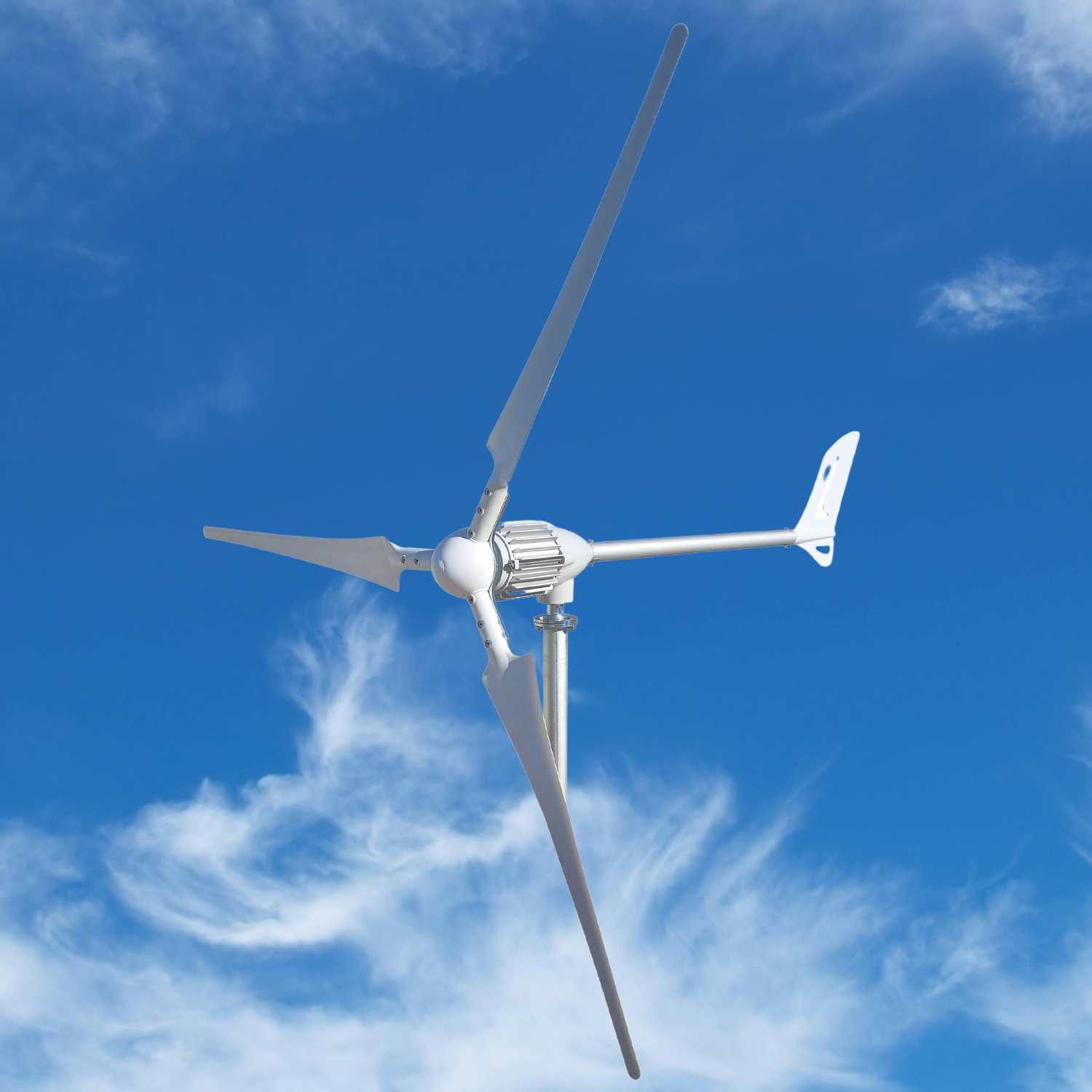

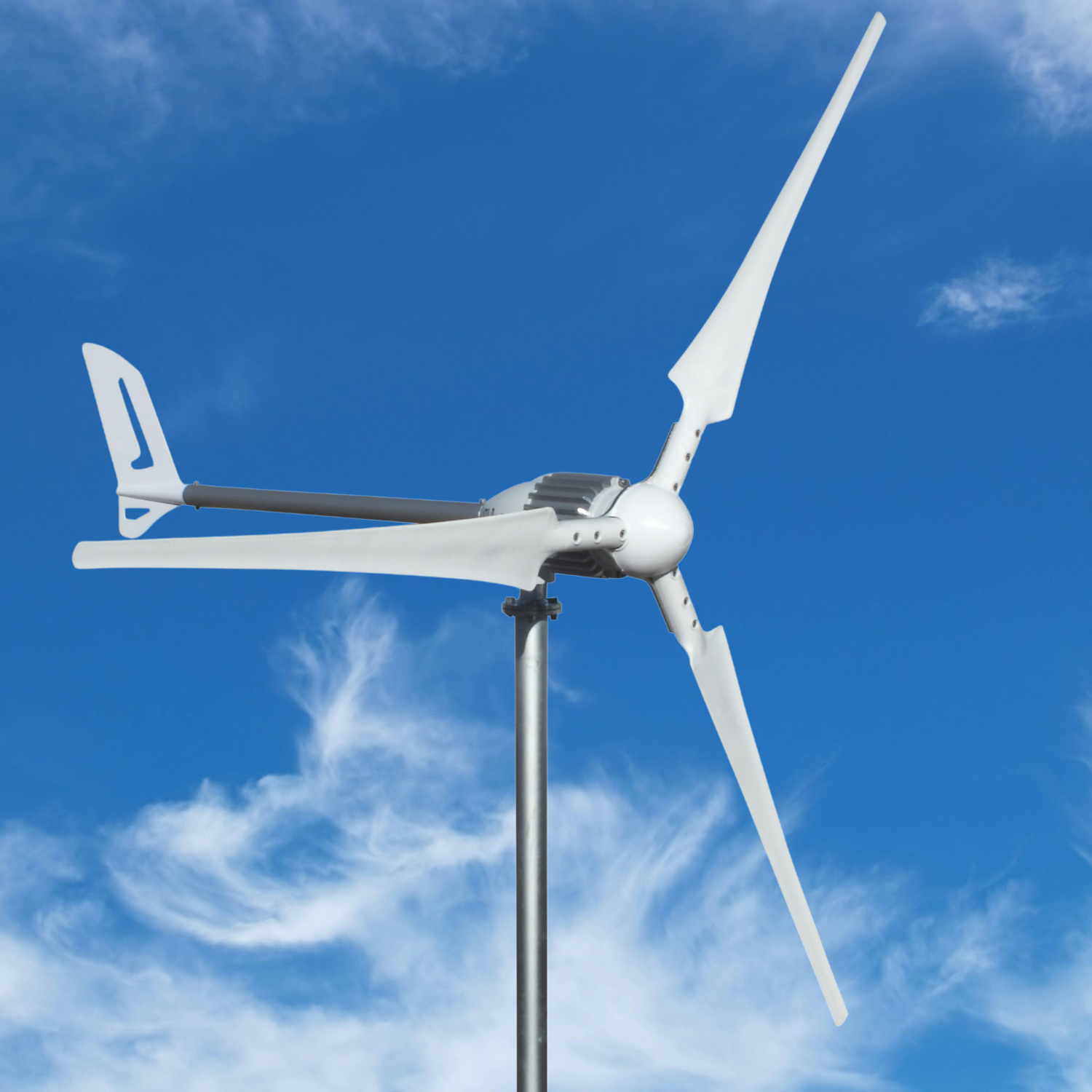

IstaBreeze · Complete Wind System
Kit i-2000W 24V/48V Wind Turbine, Charge Controller & Tower
| Rated Power 2,000W | Tower Height 4 m | Battery Type LiFePO4 | Warranty 2 Years |

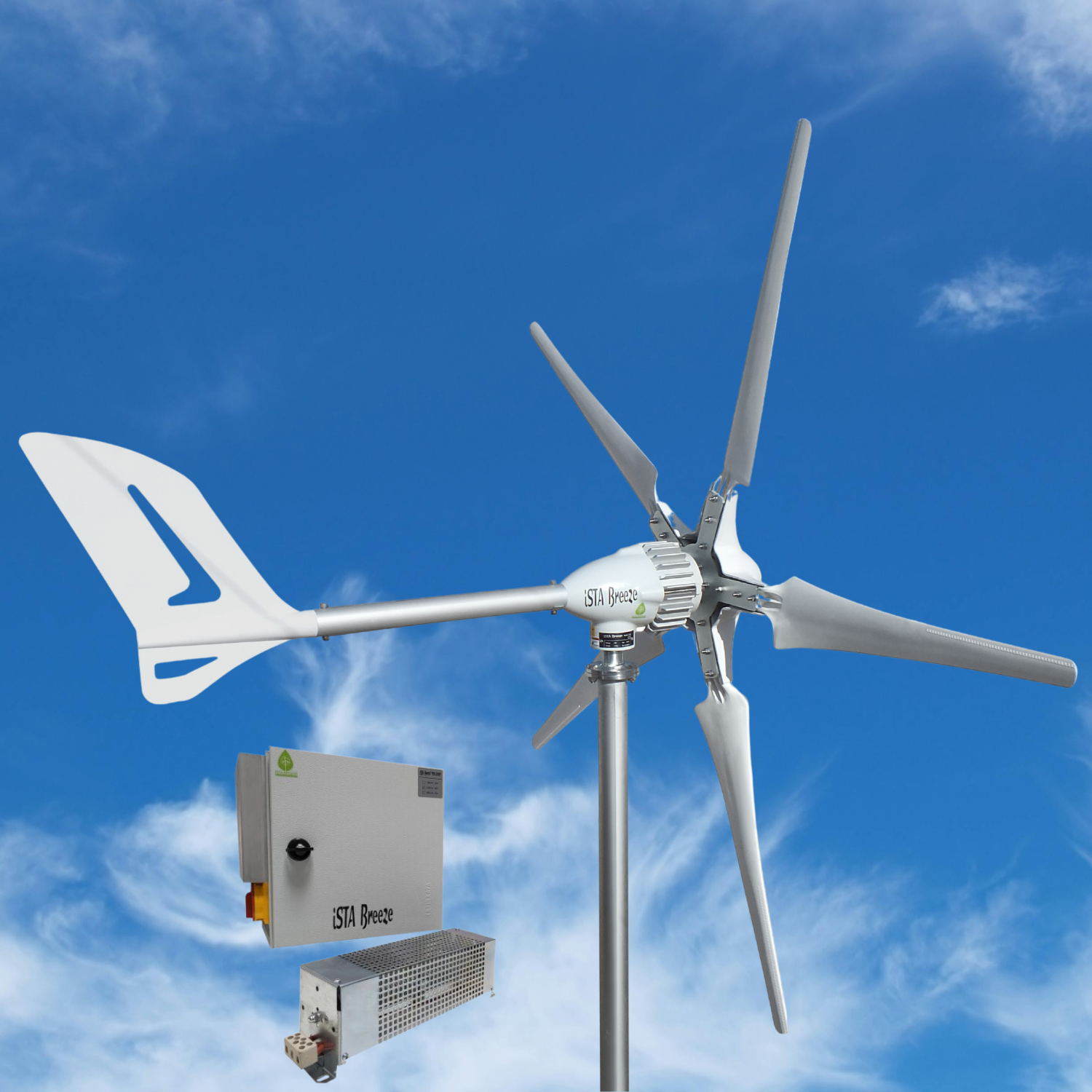

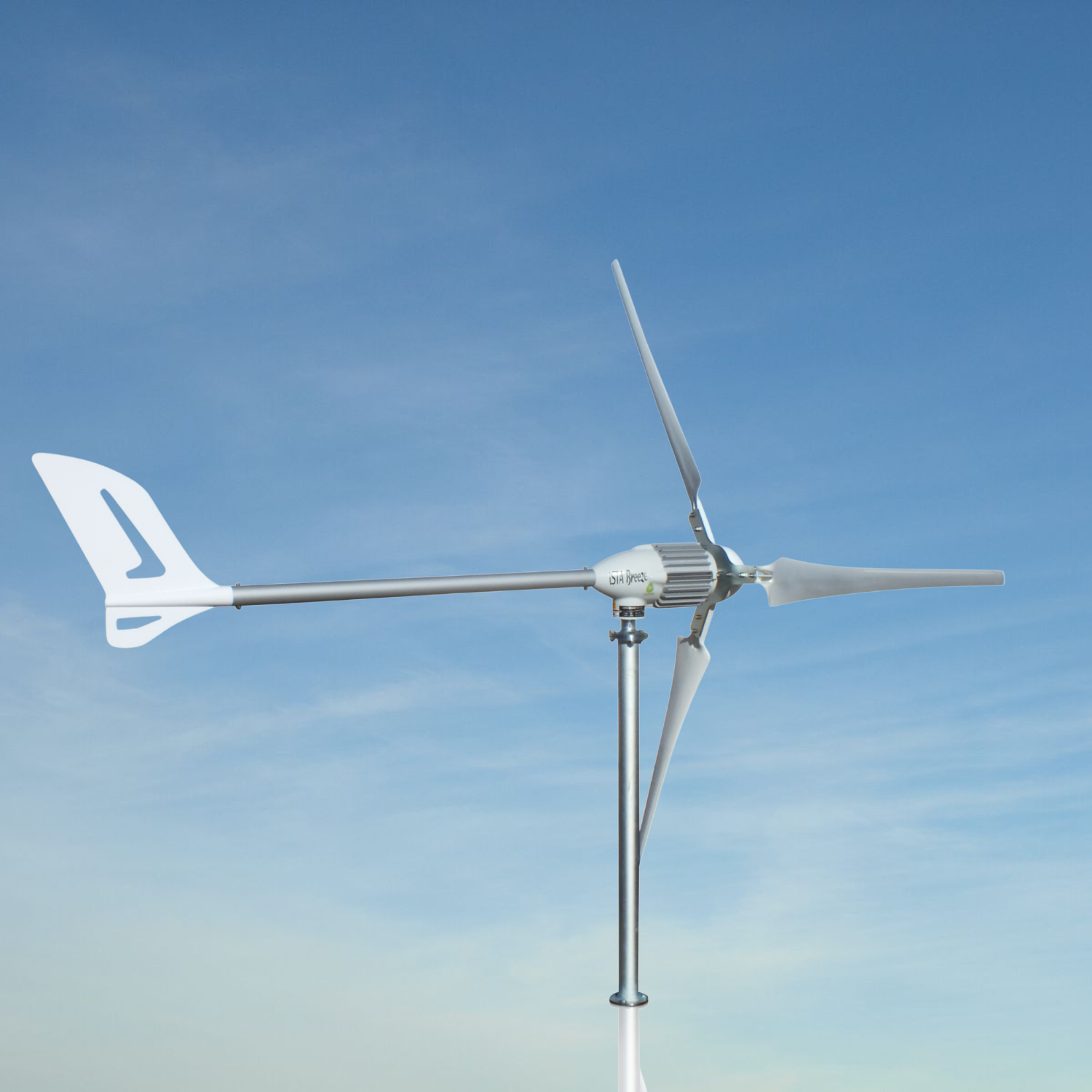

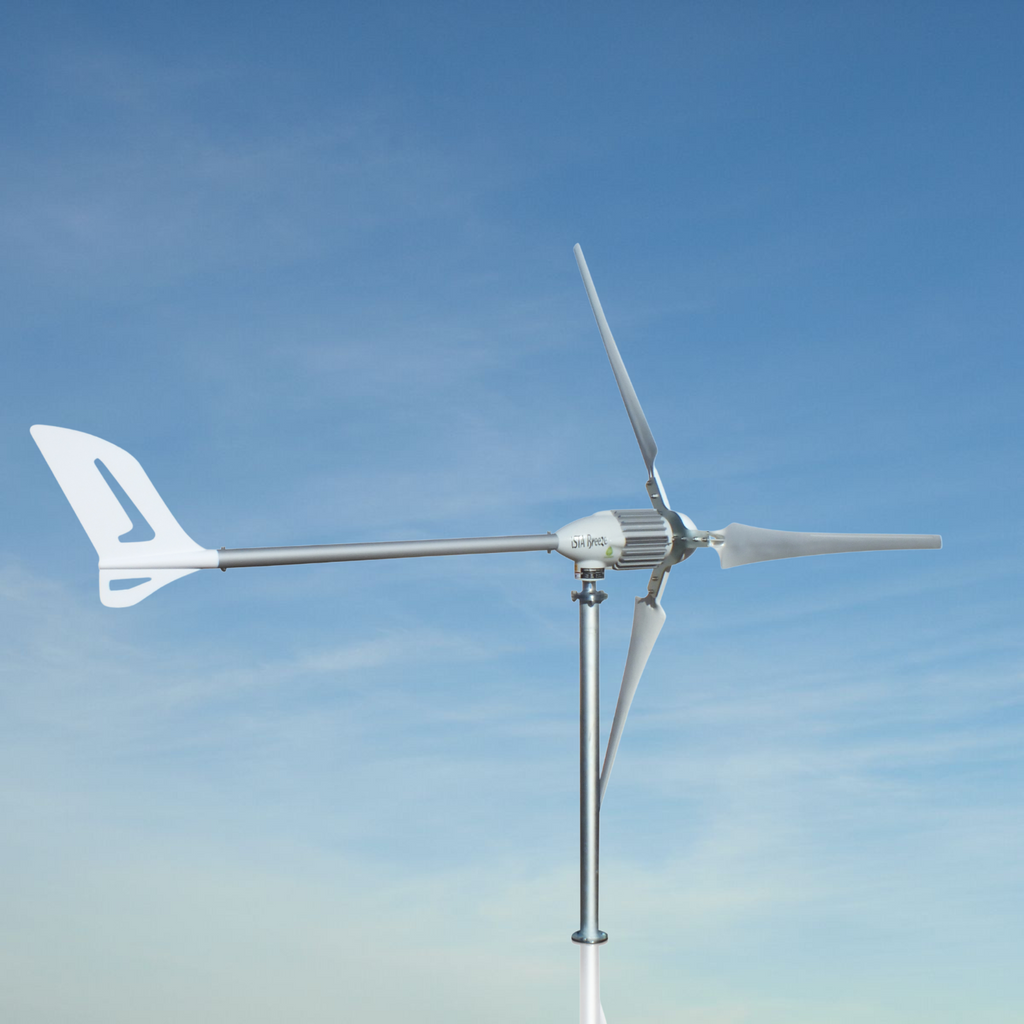

Everything needed to get an IstaBreeze i-2000W turbine spinning and charging — turbine, lithium-compatible charge controller, and a 4-meter folding tower — in one package. This kit has been used successfully in over 1,000 installations worldwide. The tower's hinged, tensioned-pole design means one person can raise or lower the entire structure solo, which matters at maintenance time.
One-Person Installation
The galvanized stainless steel tensioned pole system consists of four one-meter pipes, a hinged lower joint, three steel support ropes, and nine tensioning devices. Release a few screws and the entire tower folds down for maintenance — no crane, no scaffolding, no second person required. The tower can be extended to a maximum height of 10 meters with additional one-meter pipe sections if your site needs more clearance. Concrete anchor dowels and screws are required for the base and sold separately.
Charge controller note: This kit's controller ships with factory settings for the selected battery chemistry and cannot be reconfigured by the end user. Confirm your battery type (Lithium vs. Acid/Gel) matches your selection before ordering — a separate acid/gel version of this kit is also available.
| Turbine — Electrical | |
| Rated Power | 2,000W |
| Maximum Power | 2,200W |
| Current Output | 24V = 80A · 48V = 40A |
| Wind Performance | |
| Initial (Cut-In) Wind Speed | 3 m/s |
| Maximum Wind Speed | 14–15 m/s |
| Blade Specifications | |

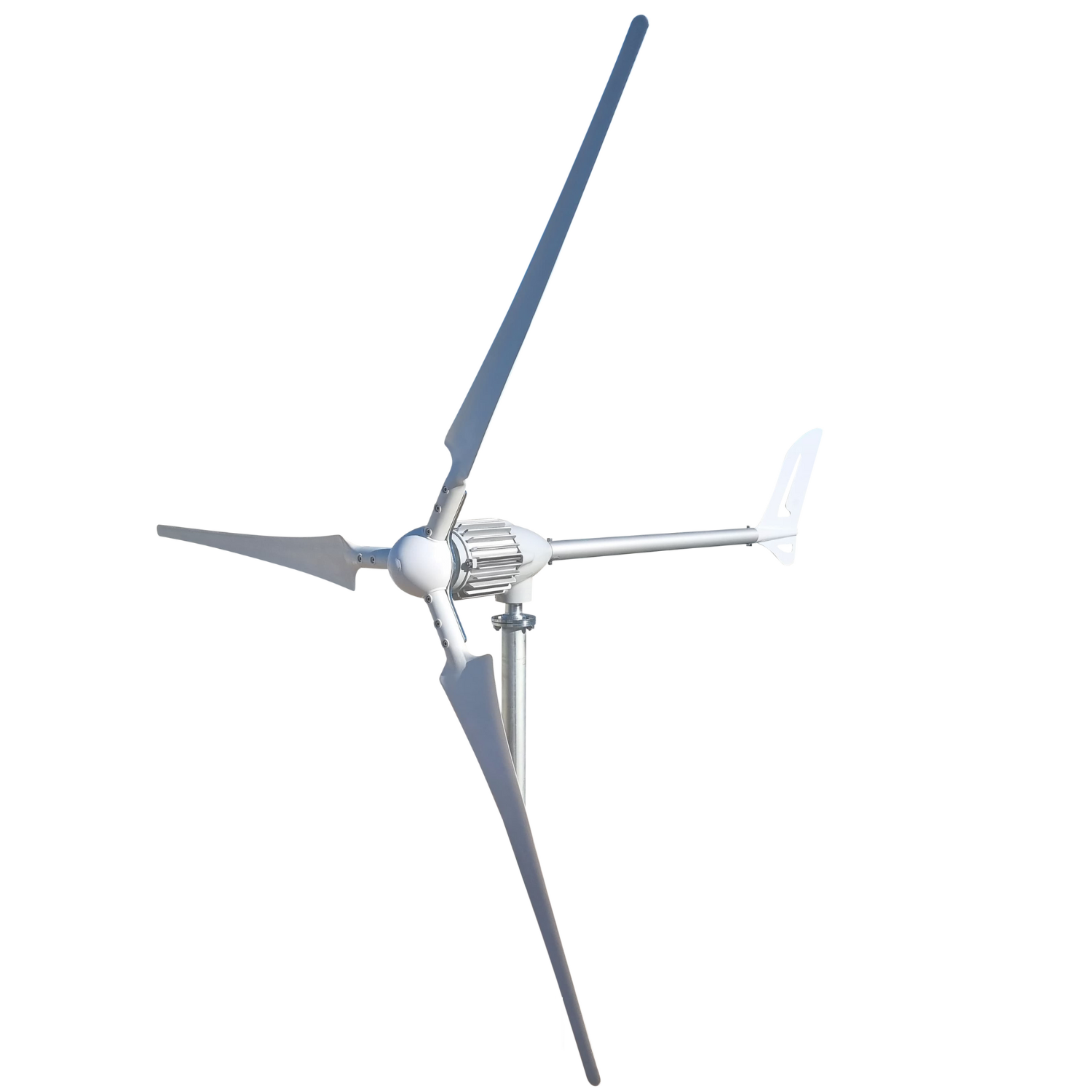

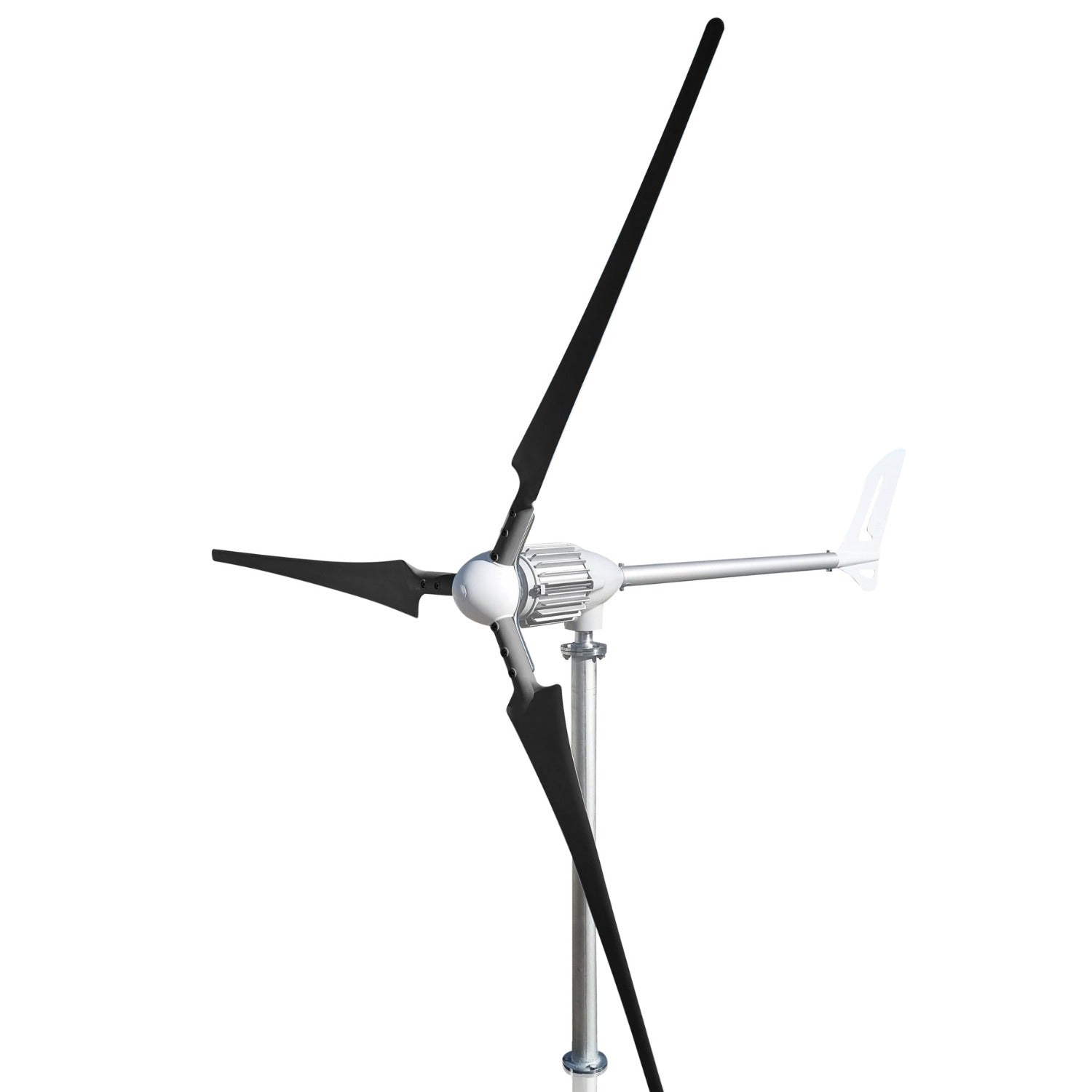

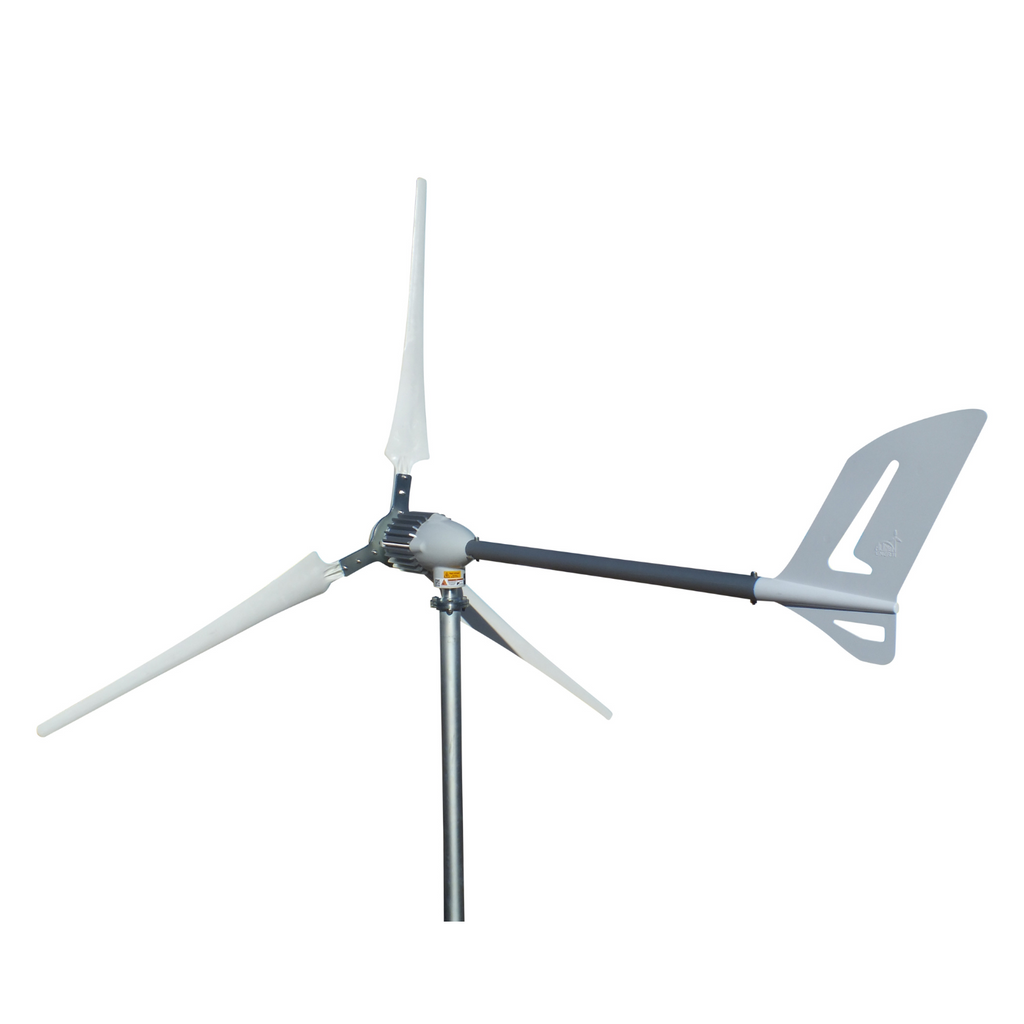

| Blade Material | Composite or Carbon |
| Blade Length / Rotor Diameter | 107 cm / 220 cm |
| Noise Level | 40dB Carbon · 50dB Composite |
| Tower Set | |
| Height | 4 m (extendable to 10 m) |
| Outer / Inner Diameter | 60 mm / 37 mm |
| Wall Thickness | 3 mm |
| Support Ropes | 3 × 5m Steel |
| System Requirements | |
| Compatible Battery Bank | 7,200W – 14,400W |

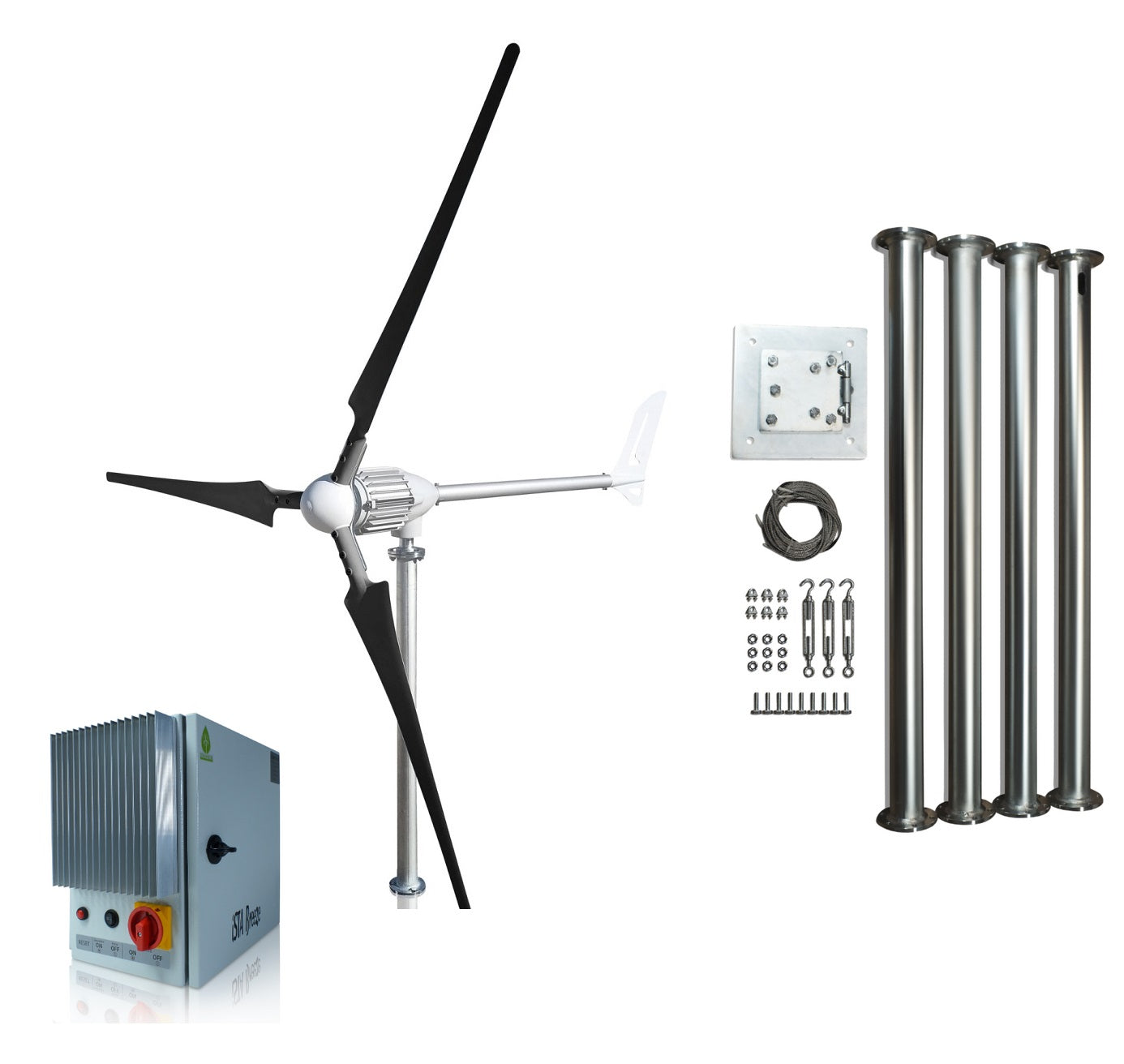

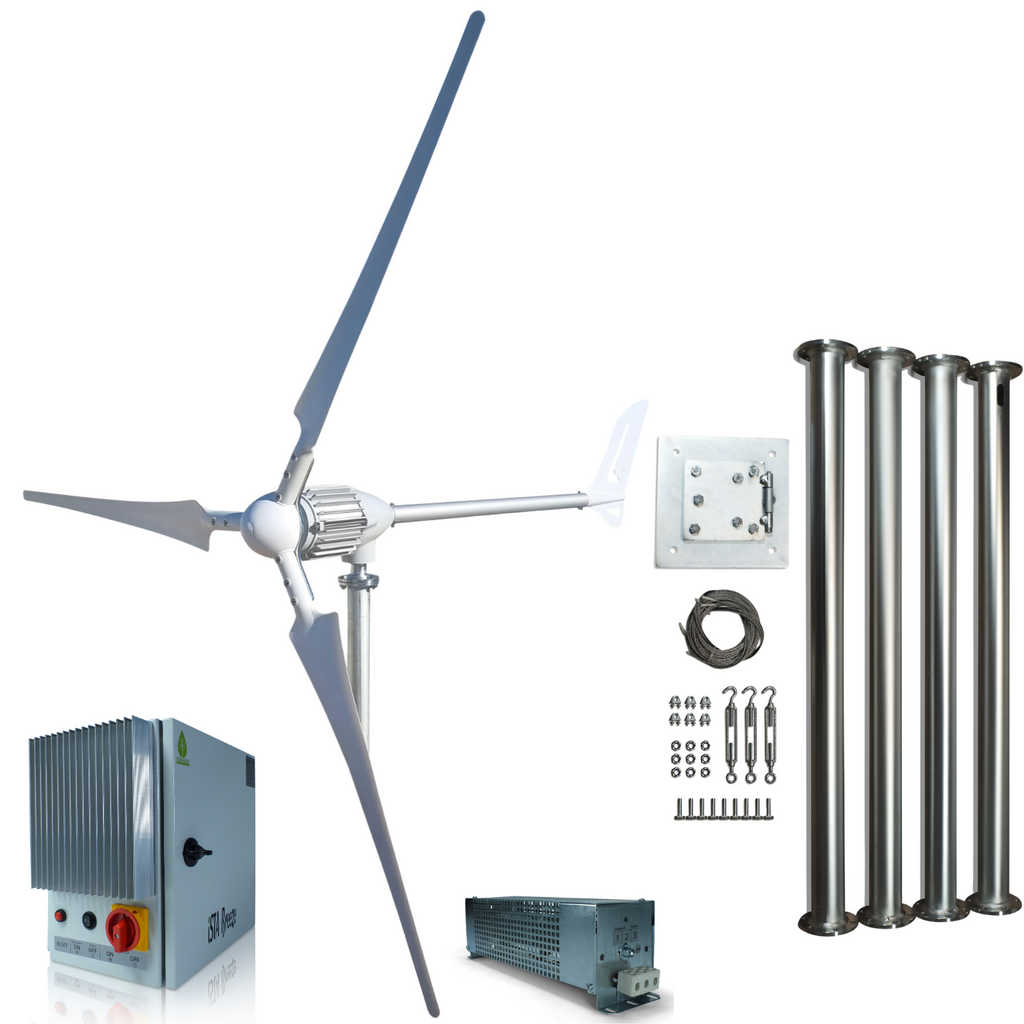

- Wind turbine generator ×1

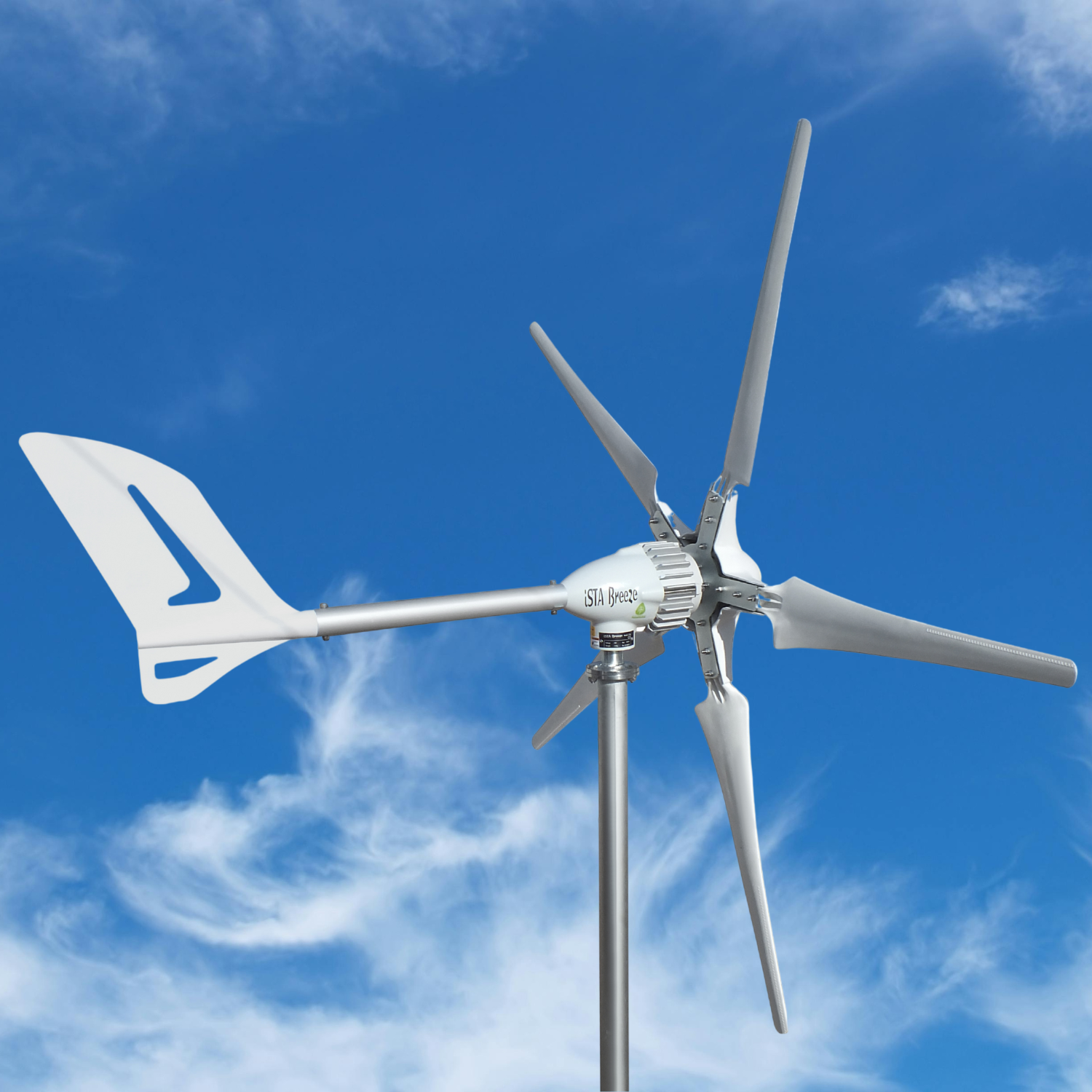

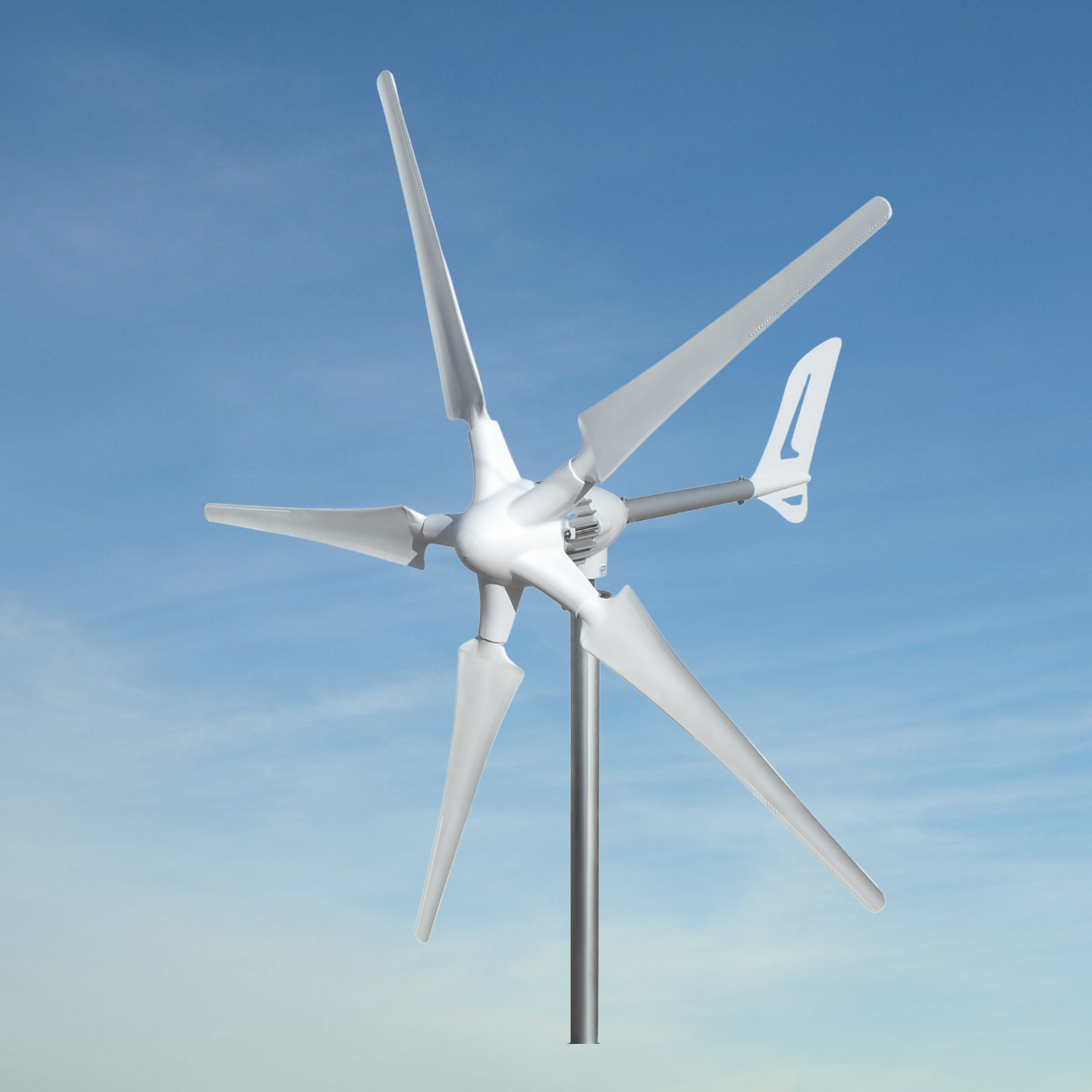

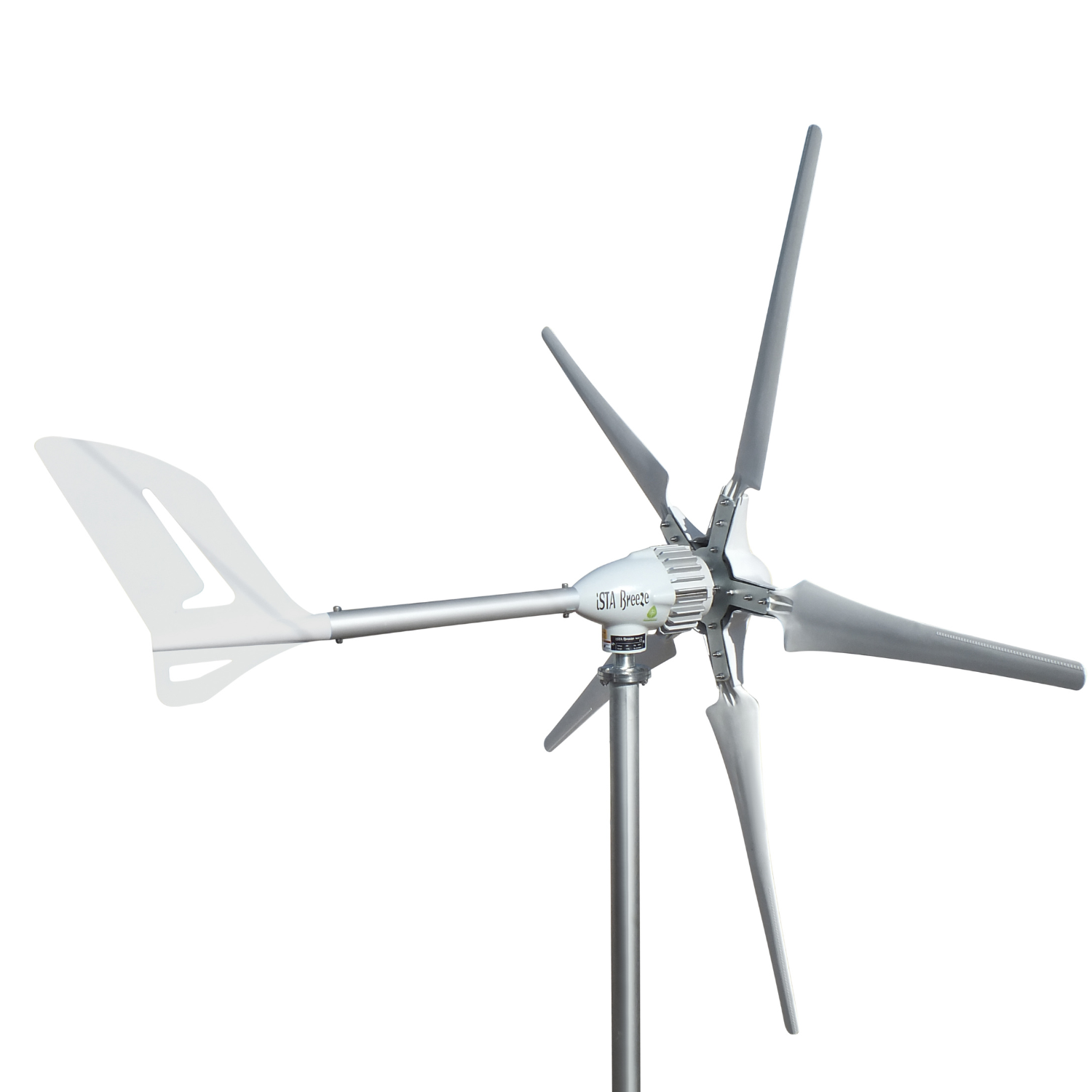

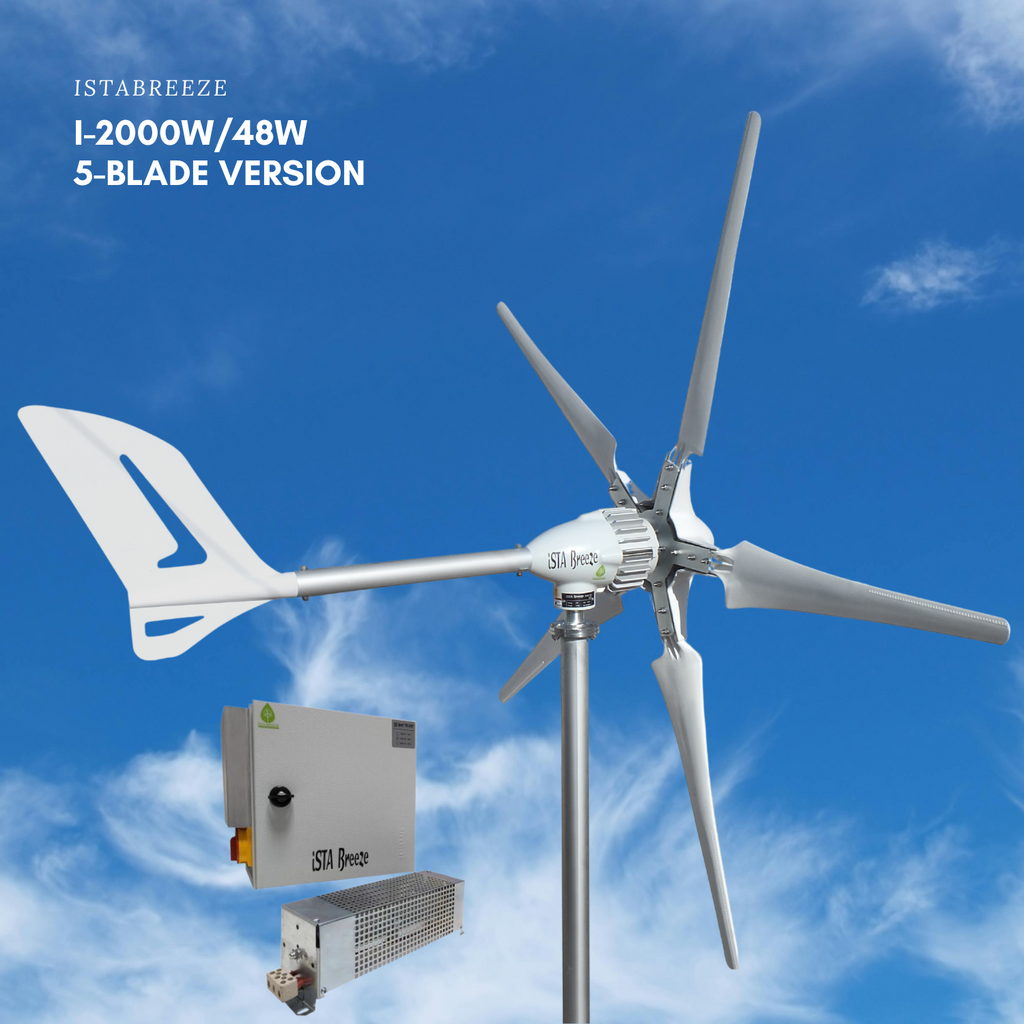

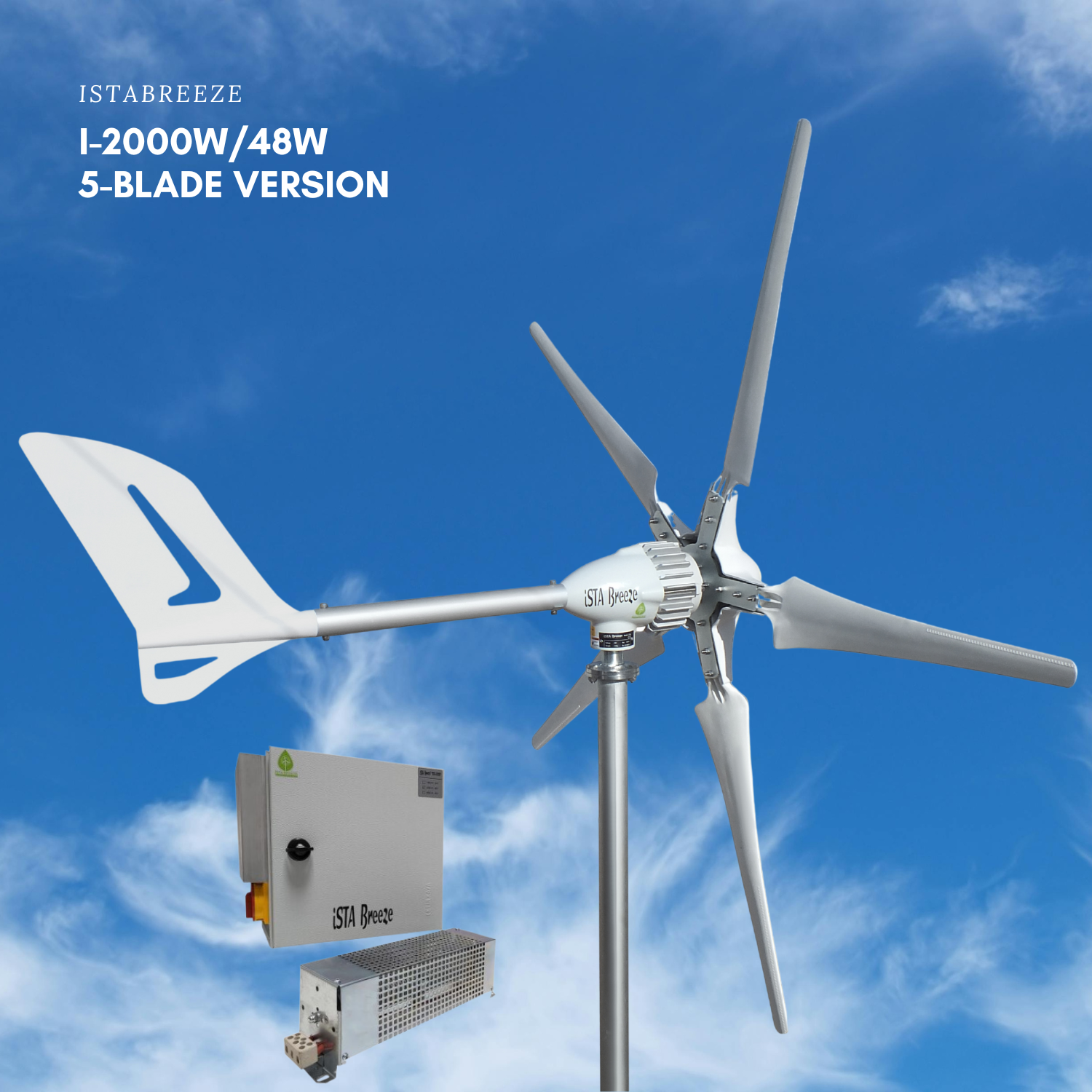

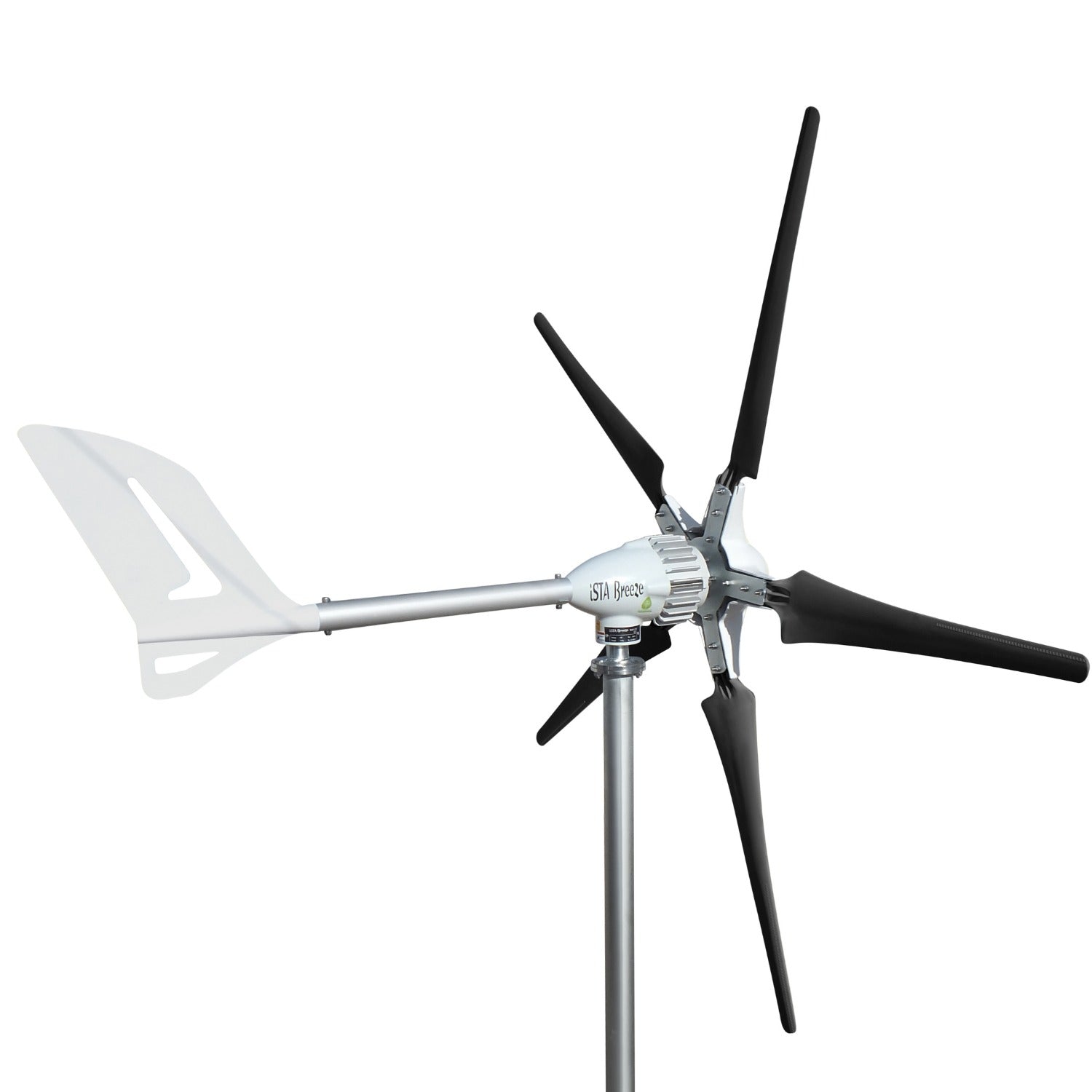

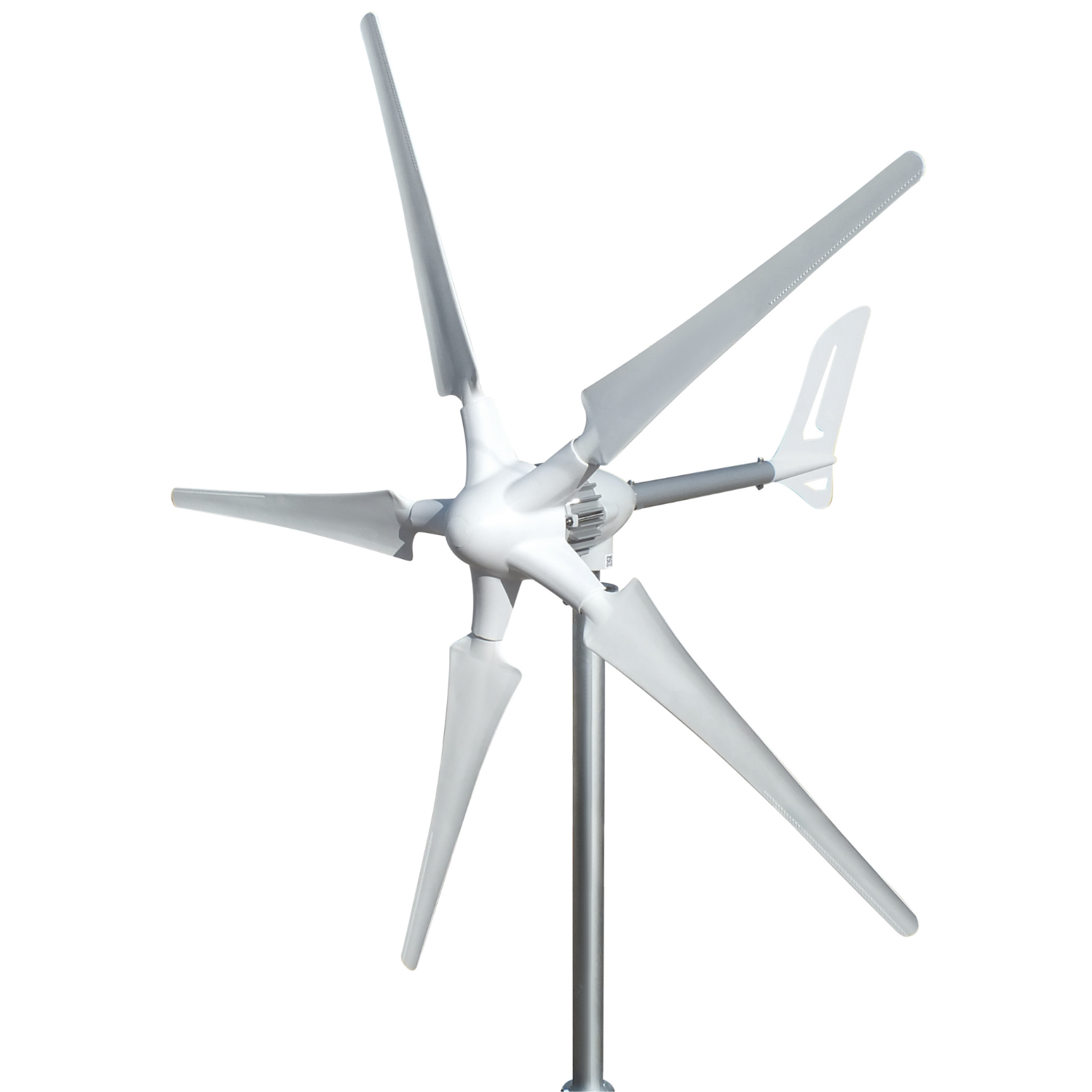

- Rotor blades ×3 or ×5 (per selected configuration)

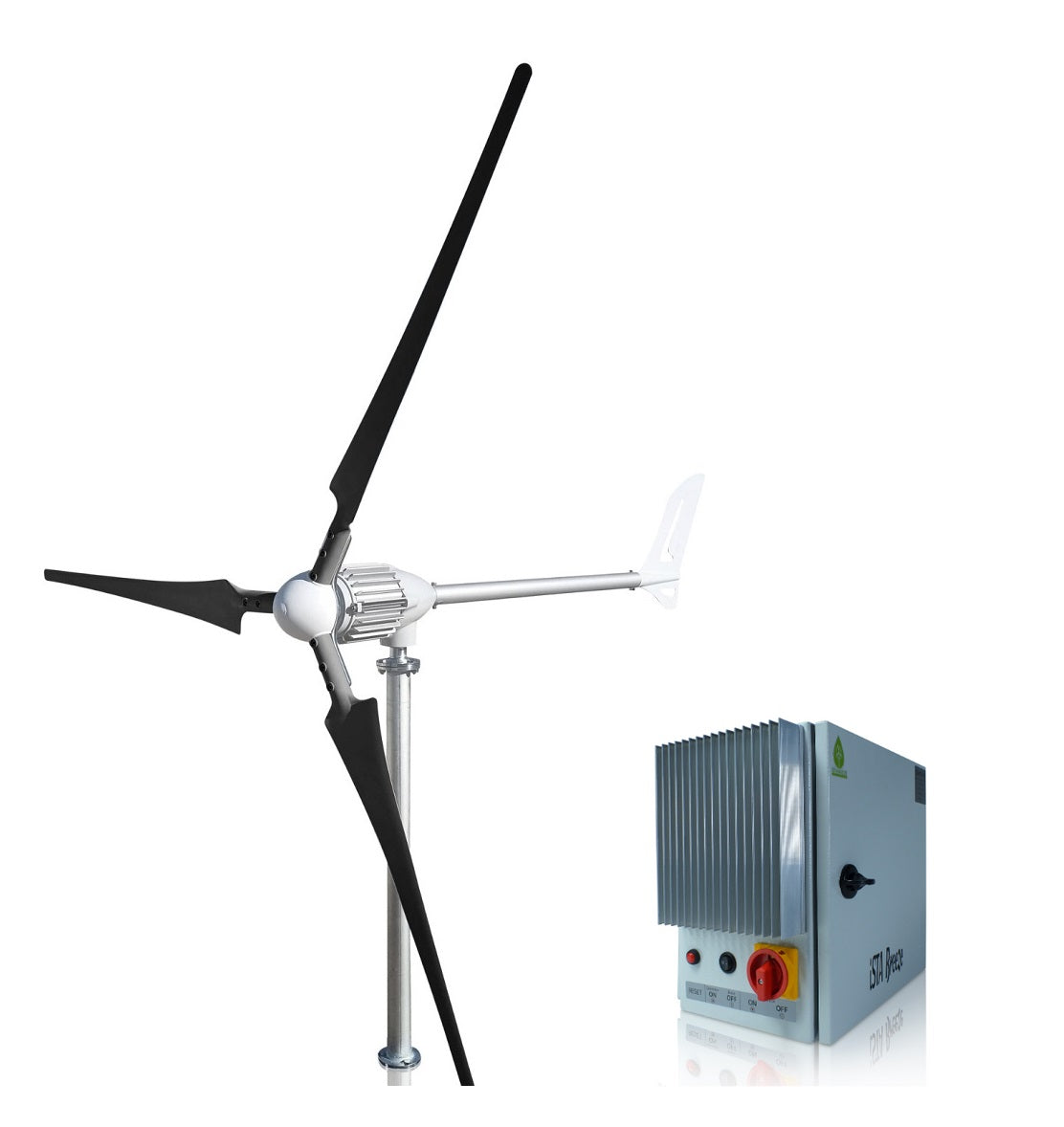

- Charge controller ×1 (factory-set for Lithium or Acid/Gel per selection)
- 4-meter folding tower set (if selected) — 4 galvanized poles, hinged base plate, 3 steel support ropes, tensioning hardware

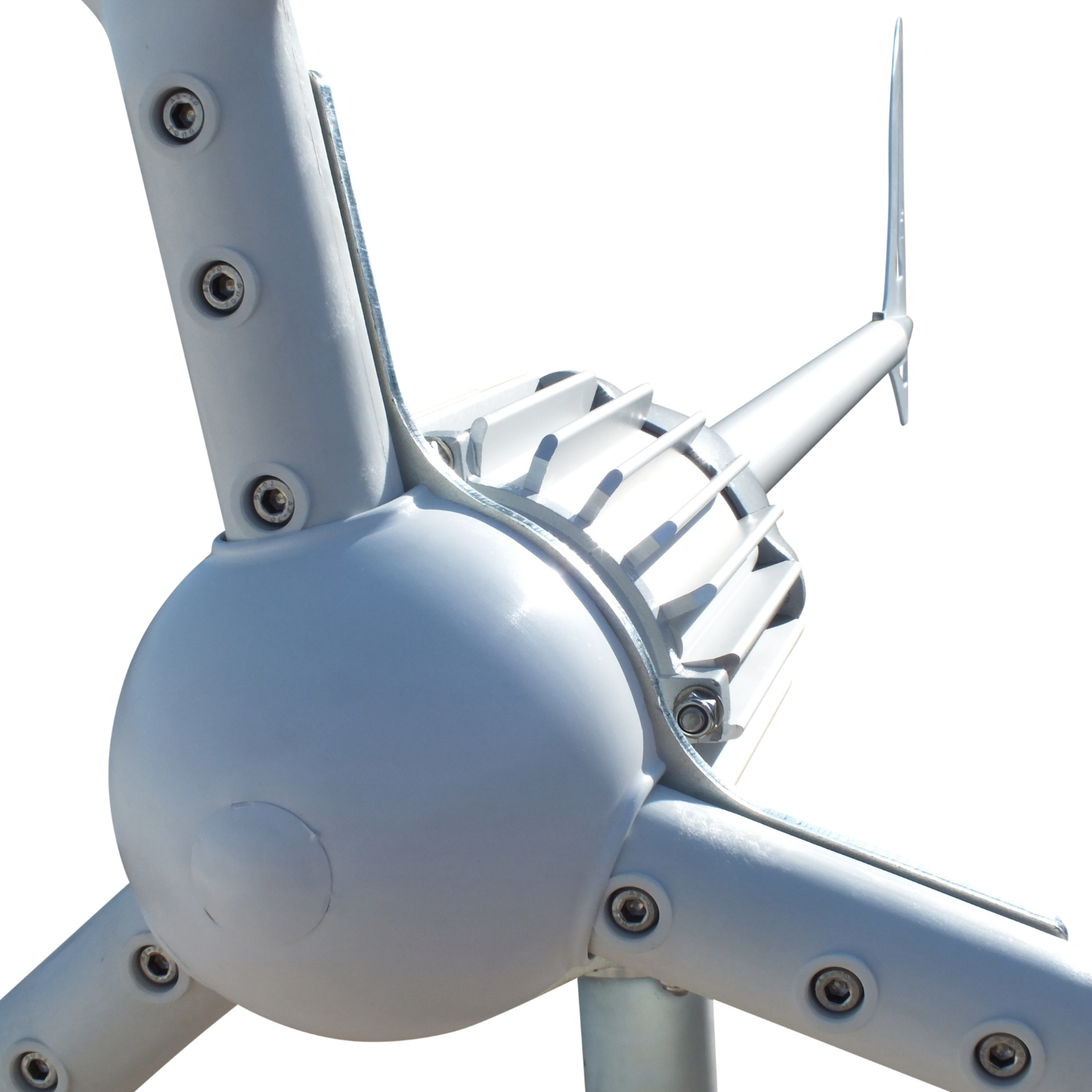

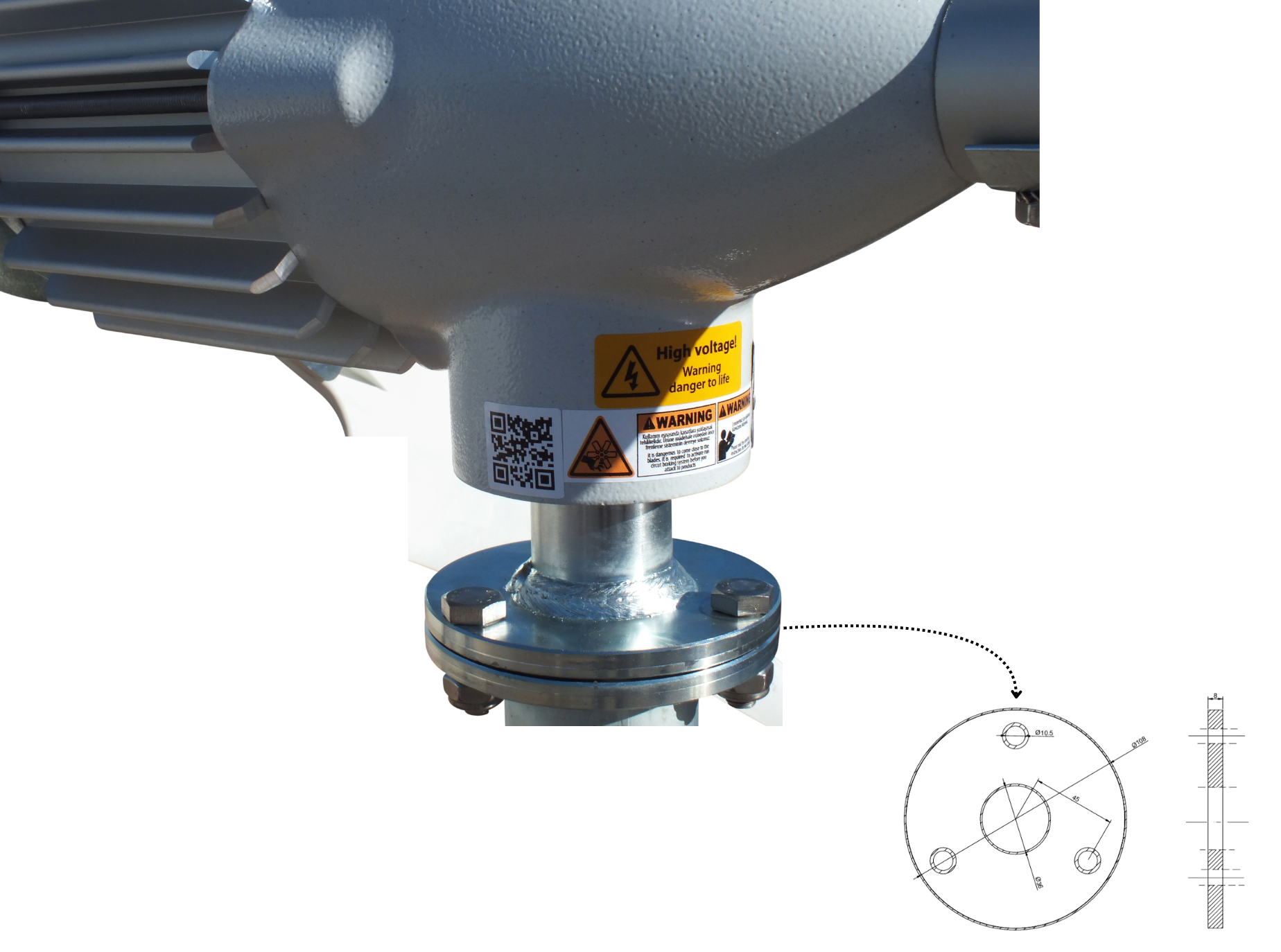

- Nose cone, mounting flange, tail pipe ×1 each
- Connection screw set ×1
- Manual book ×1
Preparation time may add approximately 1 week to standard shipping. Concrete floor anchors not included. Backed by a 2-year manufacturer's warranty.
