Description
IstaBreeze · Wind Power

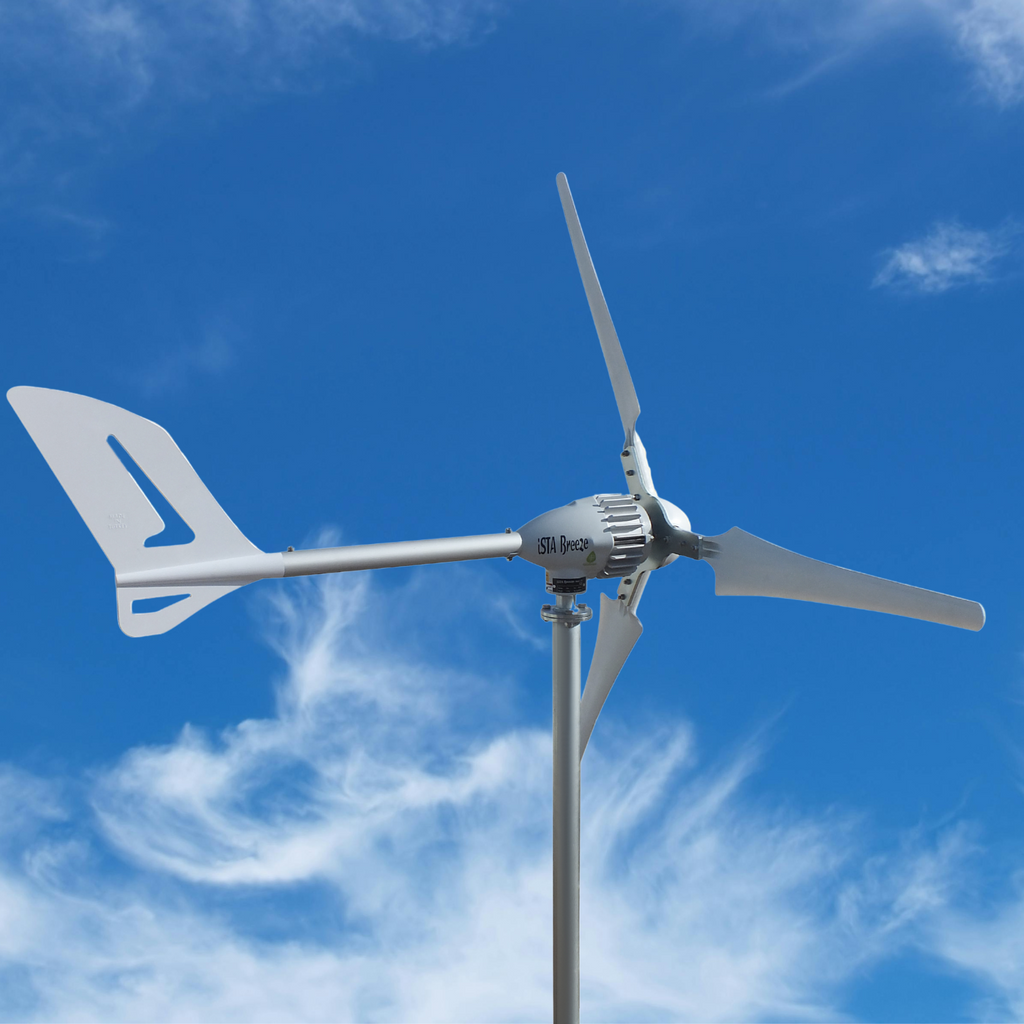

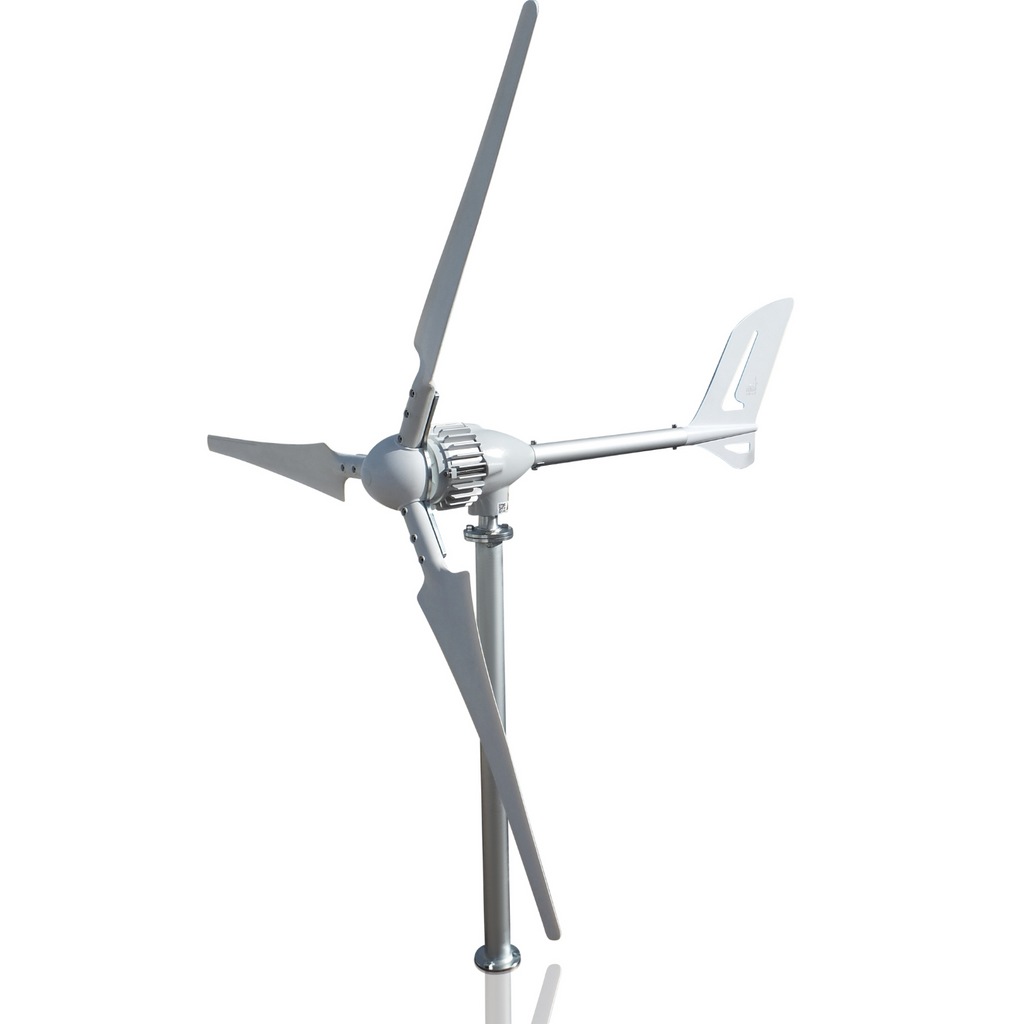

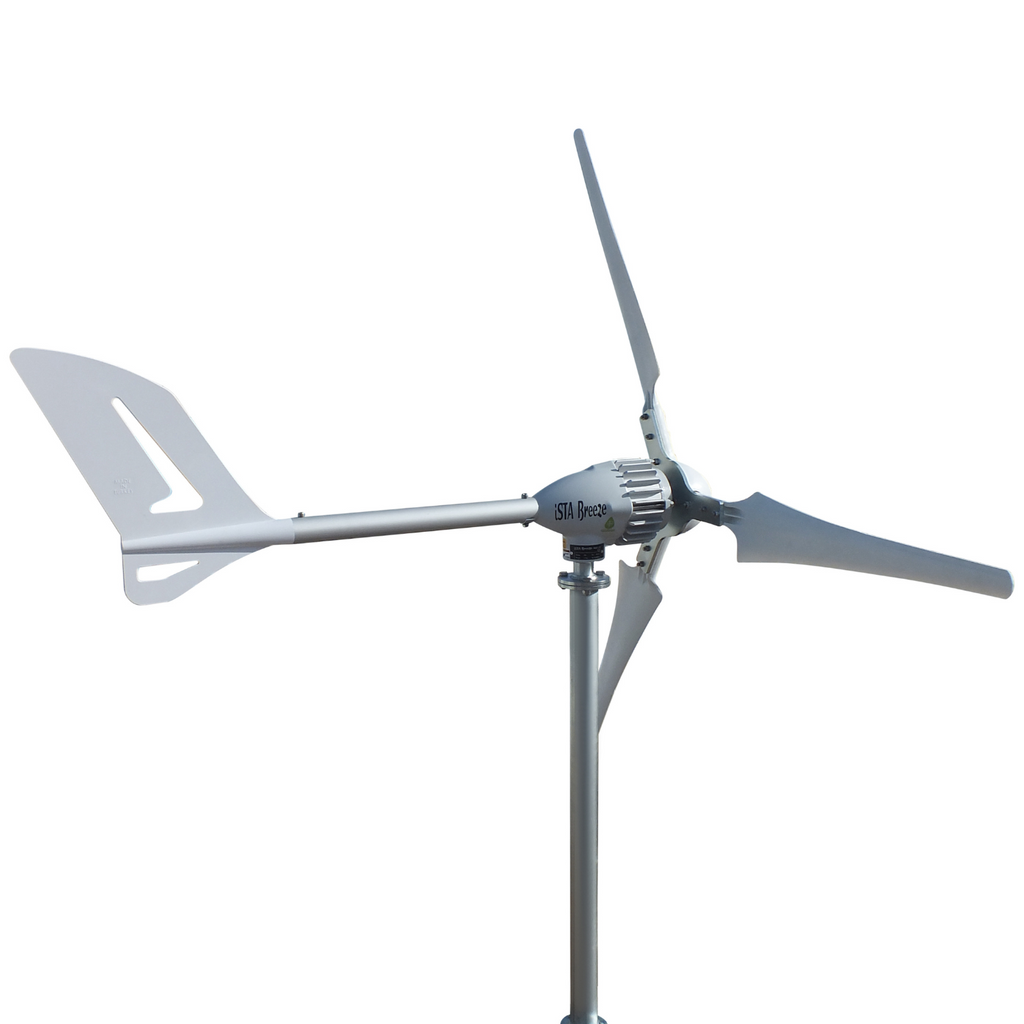

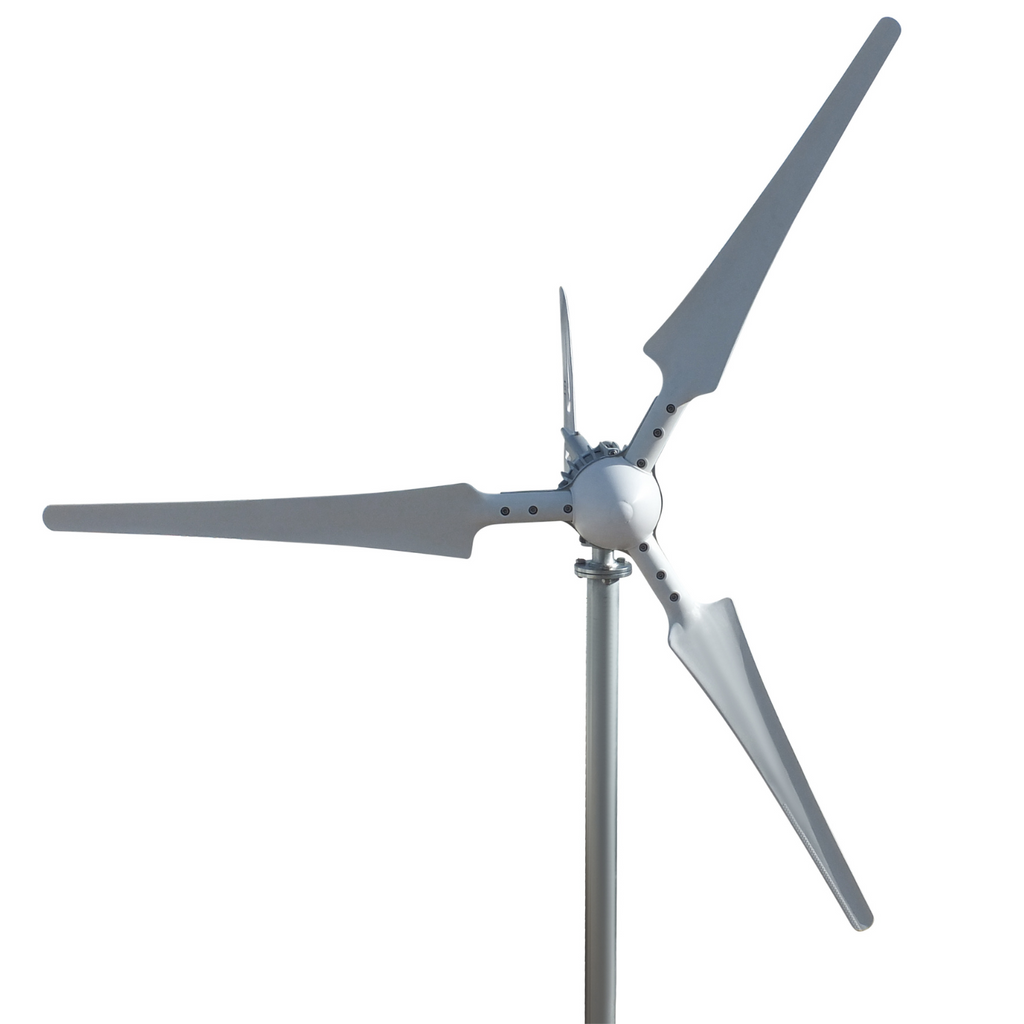

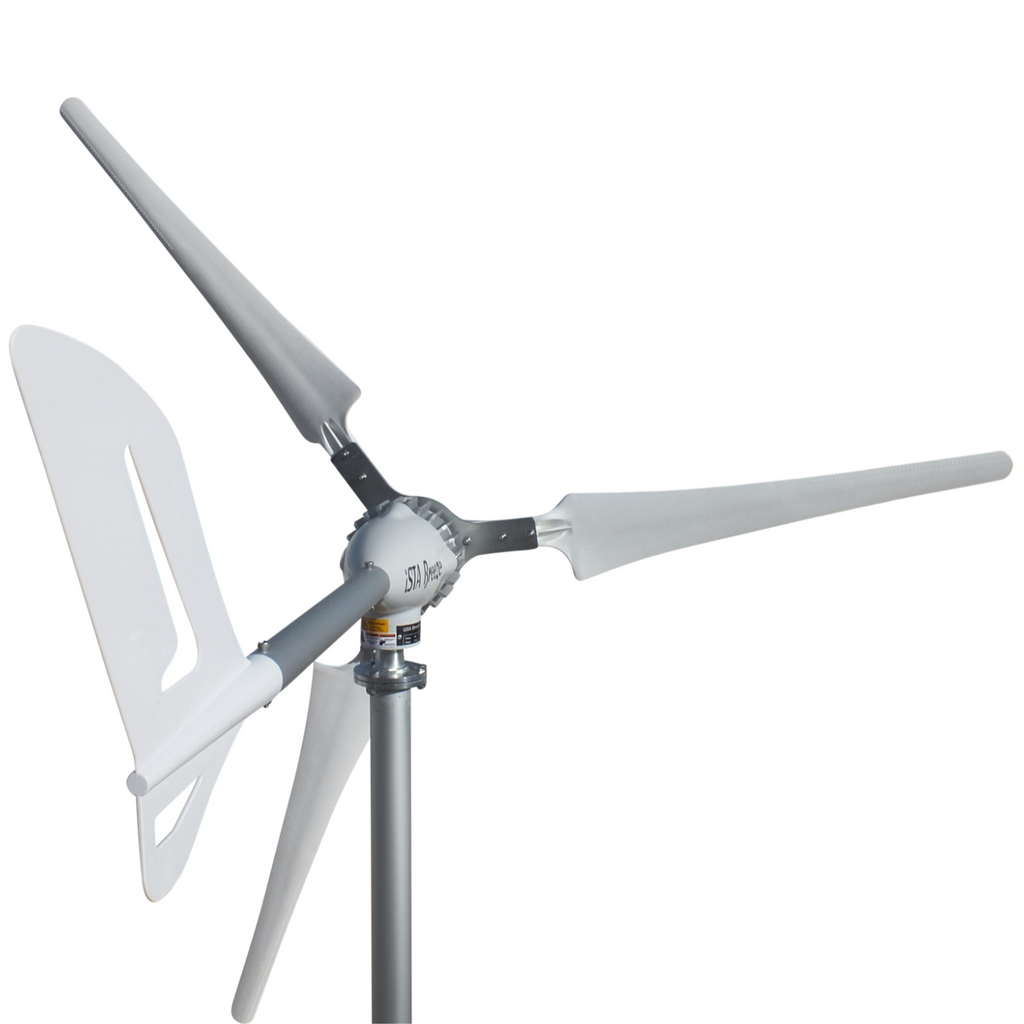

i-700W 12V/24V/48V Wind Turbine
| Rated Power 700W | Voltage 12V/24V/48V | Cut-In Speed 3 m/s | Rotor Diameter 186 cm |
Ideal for camping, garden, and home use, the i-700W is a universal turbine for low, middle, and high wind sites — sold here as the bare turbine unit for customers sourcing their own charge controller and tower. Powder-coated aluminum alternator housing and UV-resistant, glass-fiber-reinforced blades keep it low-maintenance year over year.
Full Specifications
| Electrical | |
| Rated Power | 700W |
| Maximum Power | 800W |
| Current Output | 12V=60A · 24V=30A · 48V=15A |
| Wind Performance | |
| Initial (Cut-In) Wind Speed | 3 m/s |
| Maximum Wind Speed | 14–15 m/s |
| Blade Specifications | |
| Blade Material | Composite |
| Blade Length / Rotor Diameter | 90 cm / 186 cm |
| Noise Level | 40 dB |
| Construction | |
| Body Material | Aluminum Casting |
| Package Weight | 18 kg (3-blade) |
| System Requirements | |
| Compatible Battery Bank | 2,400W – 4,800W |
Engineering Details
- 3-phase permanent magnets (NdFeB, 150°C temperature-resistant) for high efficiency
- Aerodynamic design, powder-coated aluminum alternator
- UV-resistant plastic blades reinforced with 30% glass fiber, independently tested
- Slip-ring power transmission — no cable twisting over the turbine's lifetime
What's in the Box
- Wind turbine generator ×1
- Rotor blades ×3 or ×5 (per selected configuration)
- Nose cone ×1

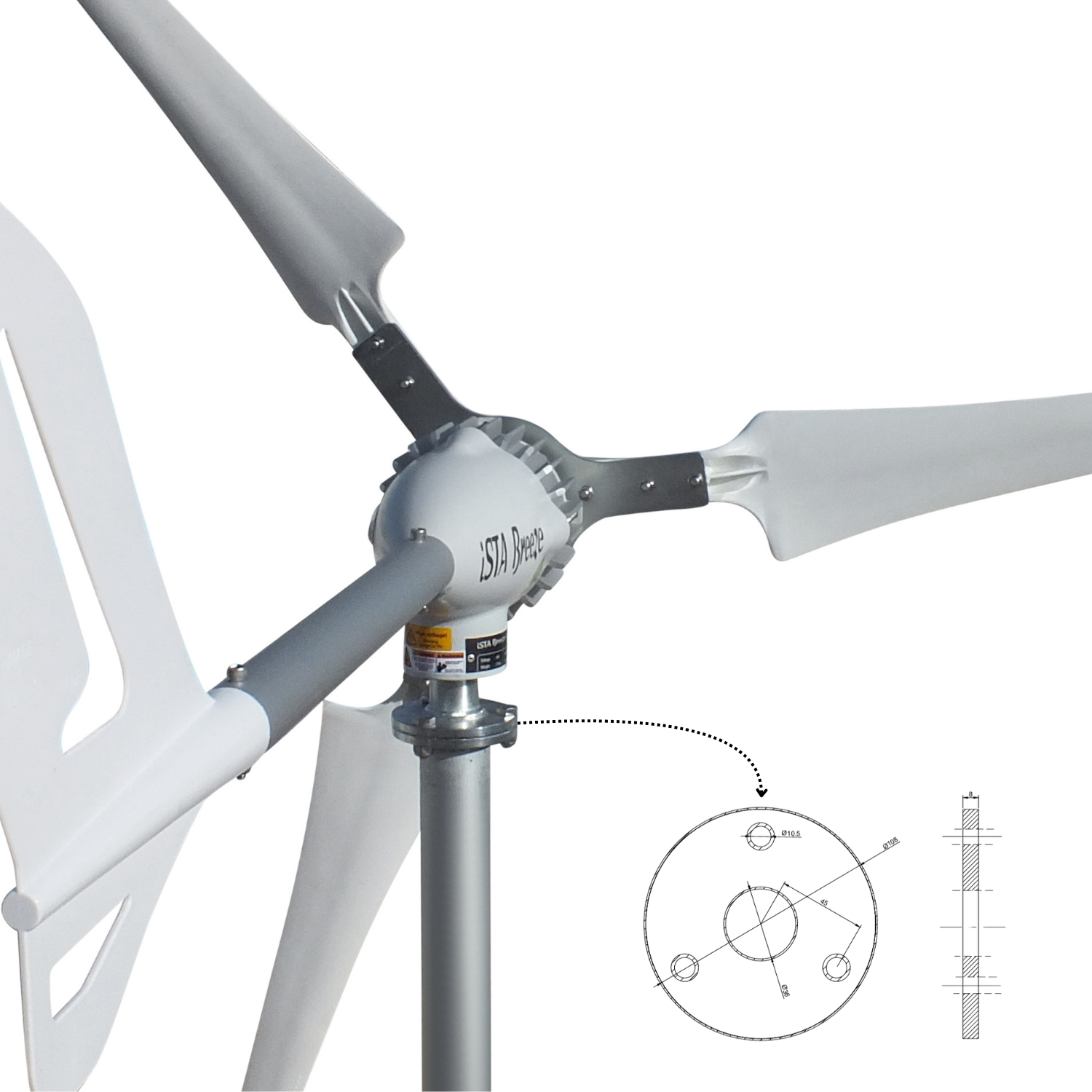

- Mounting flange ×1
- Tail / tail pipe ×1
- Manual book ×1
Mast tower and charge controller sold separately. Requires mast tube inner diameter of 37mm nominal. Backed by a 2-year manufacturer's warranty.
