Description
IstaBreeze · Grid-Tied Wind Power

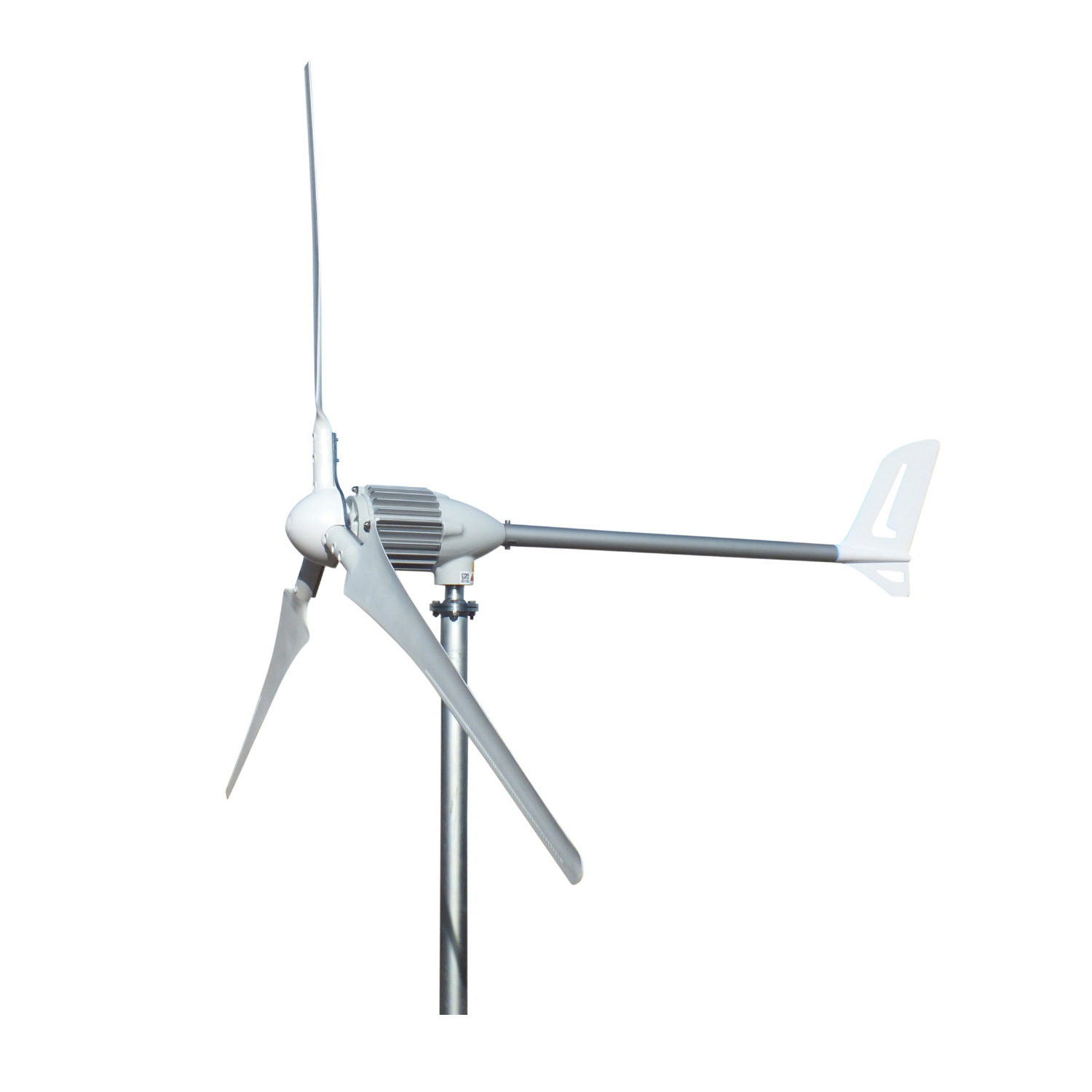

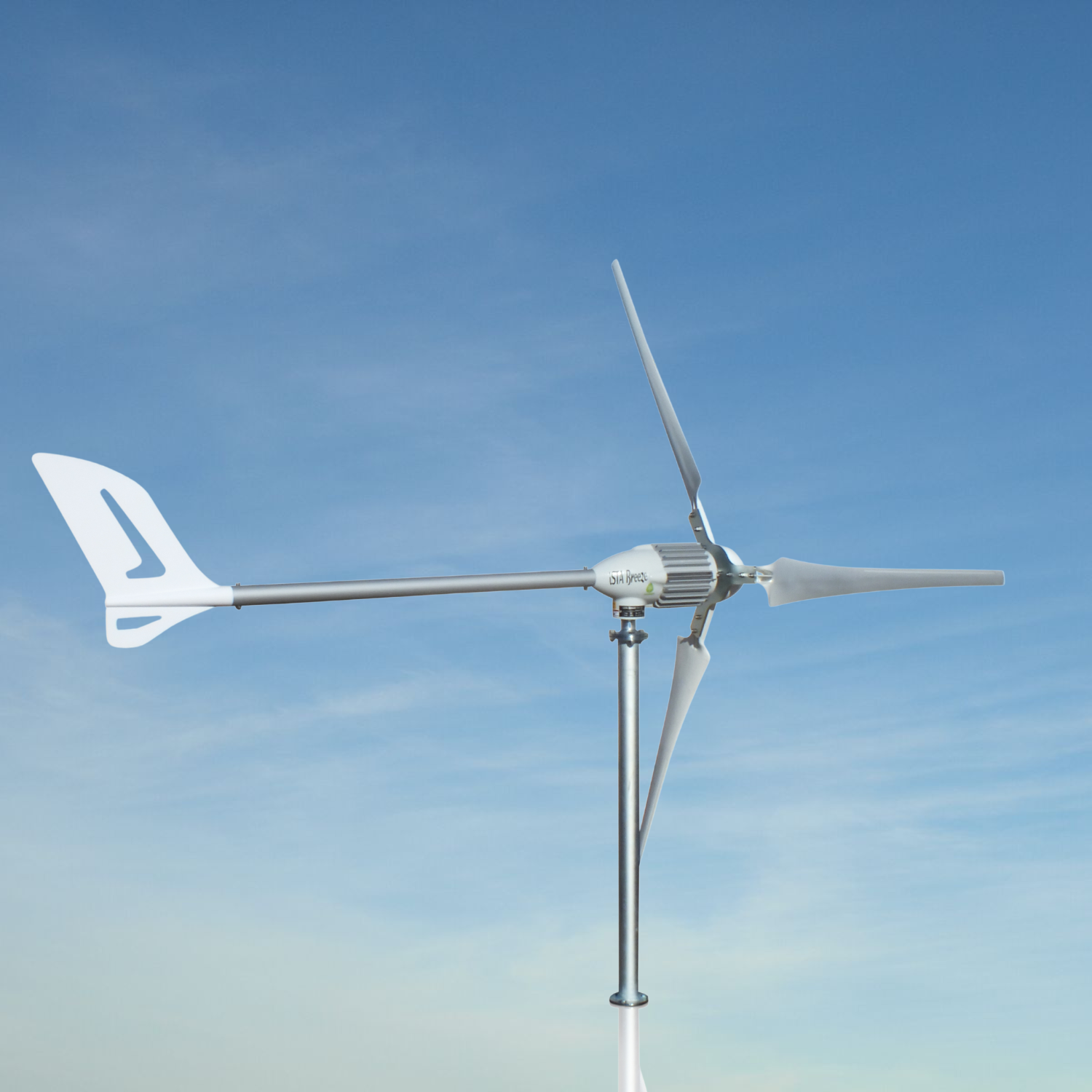

i-1000W On-Grid Wind Turbine
| Max Power 1,200W | System Type On-Grid | Max Open Circuit 350 VAC | Rotor Diameter 220 cm |

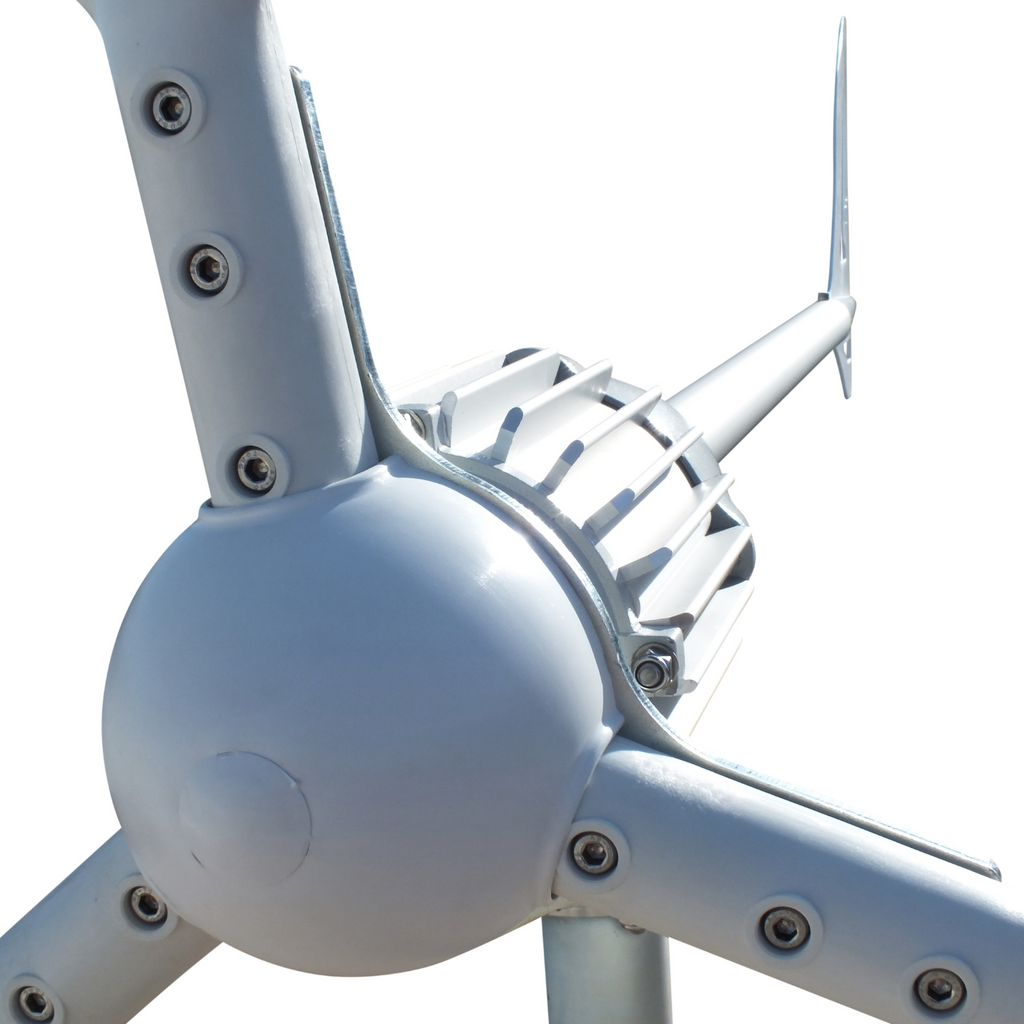

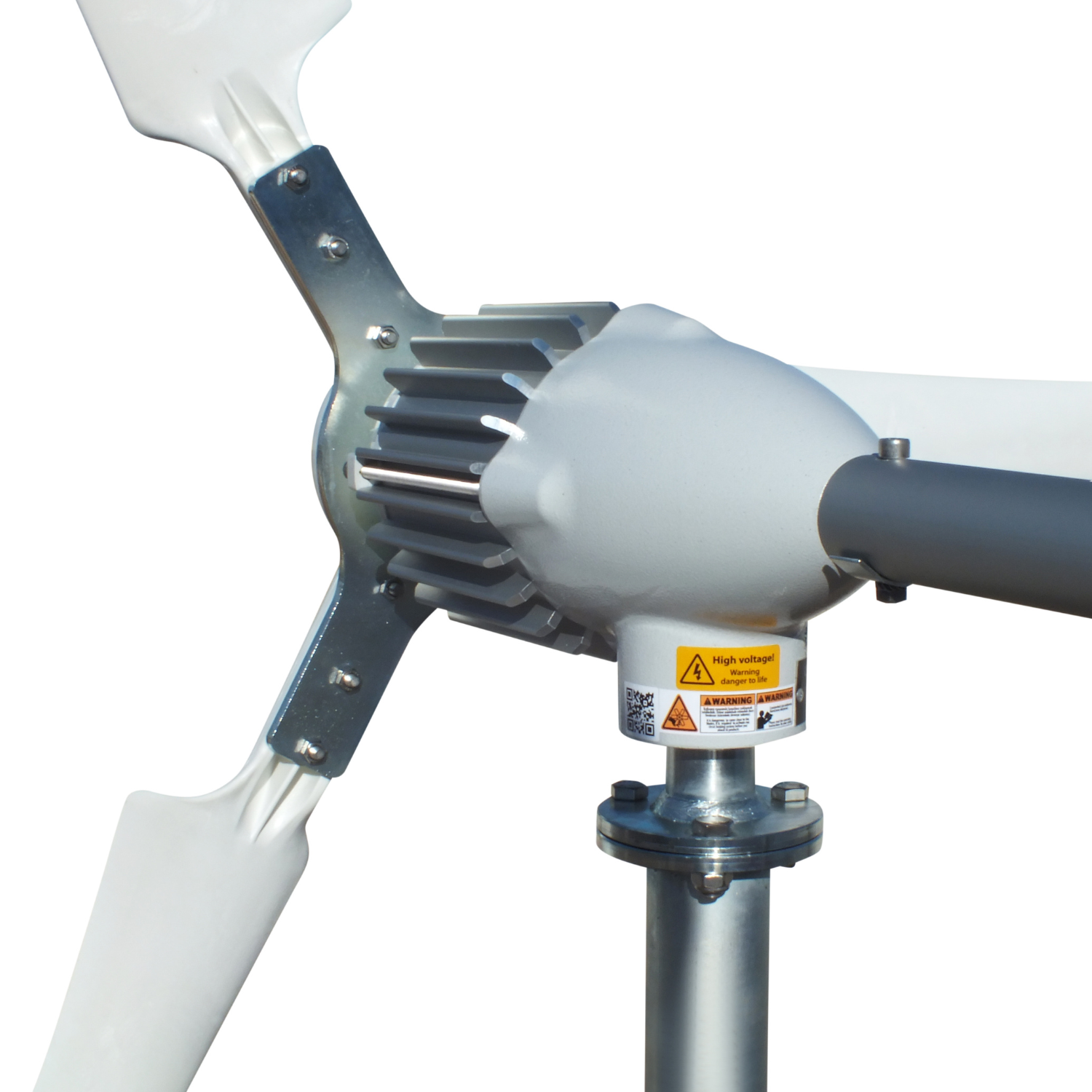

The i-1000W turbine wired for direct grid feed-in rather than battery charging, sold as the bare turbine unit. Universal application across low, middle, and high wind sites. Powder-coated aluminum housing and UV-resistant, glass-fiber-reinforced blades keep it low-maintenance across seasons.
Choosing Your Blade Configuration
3-Blade vs. 5-Blade — Which Fits Your Site

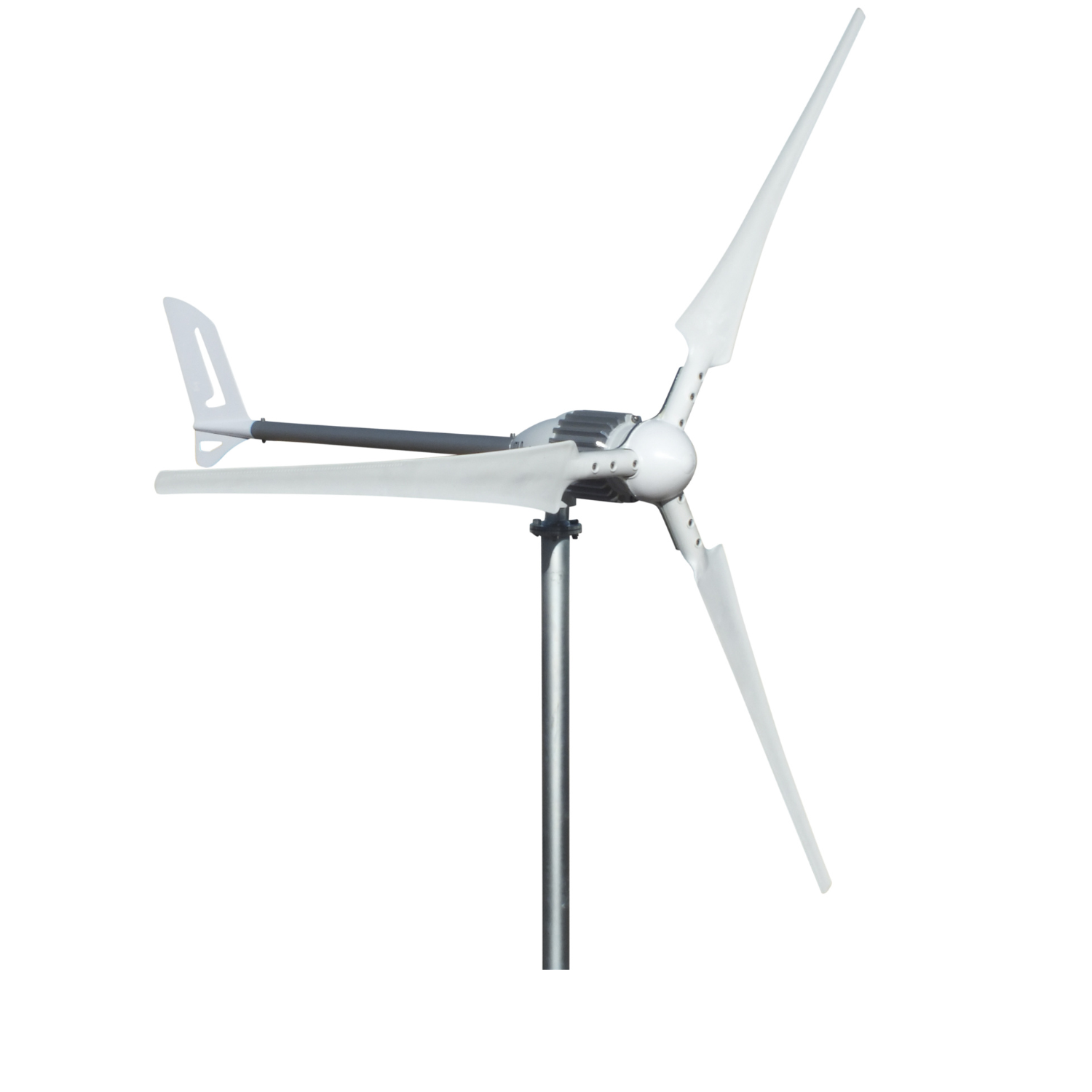

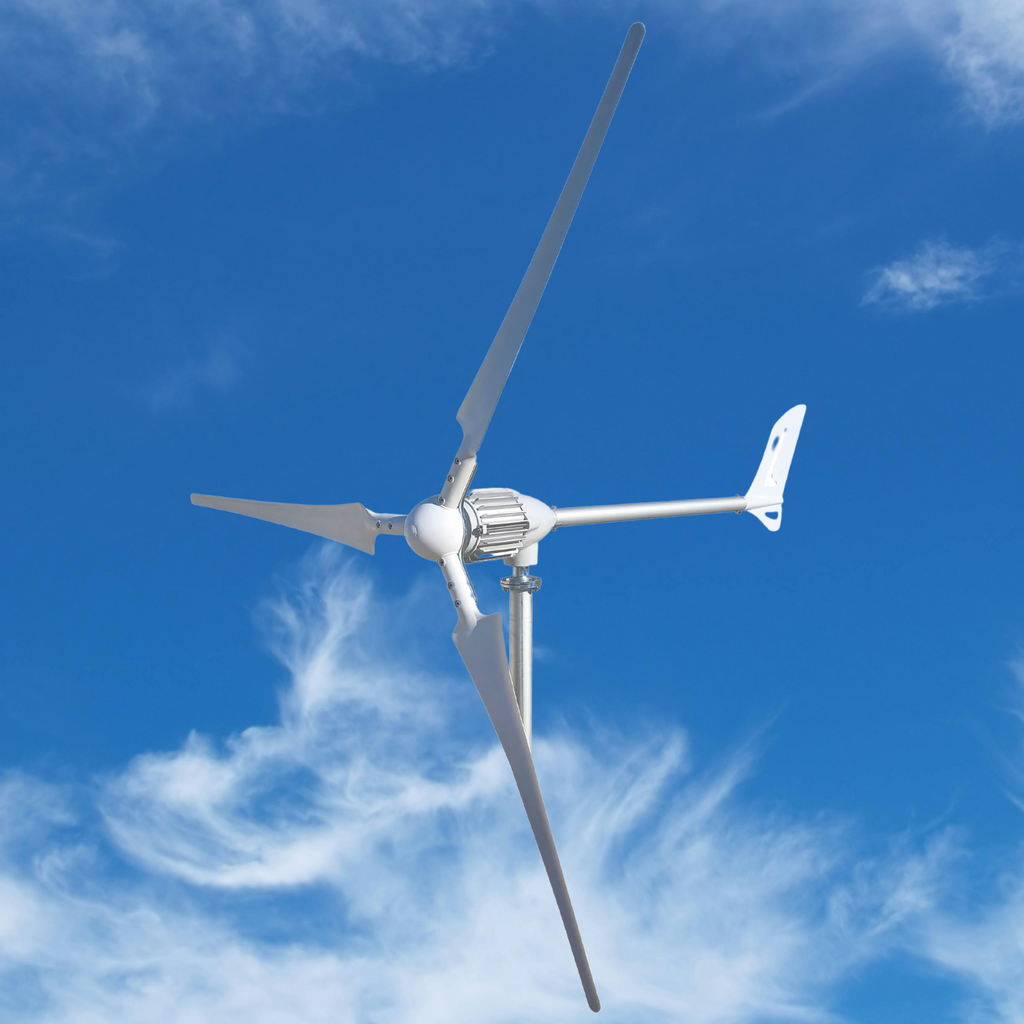

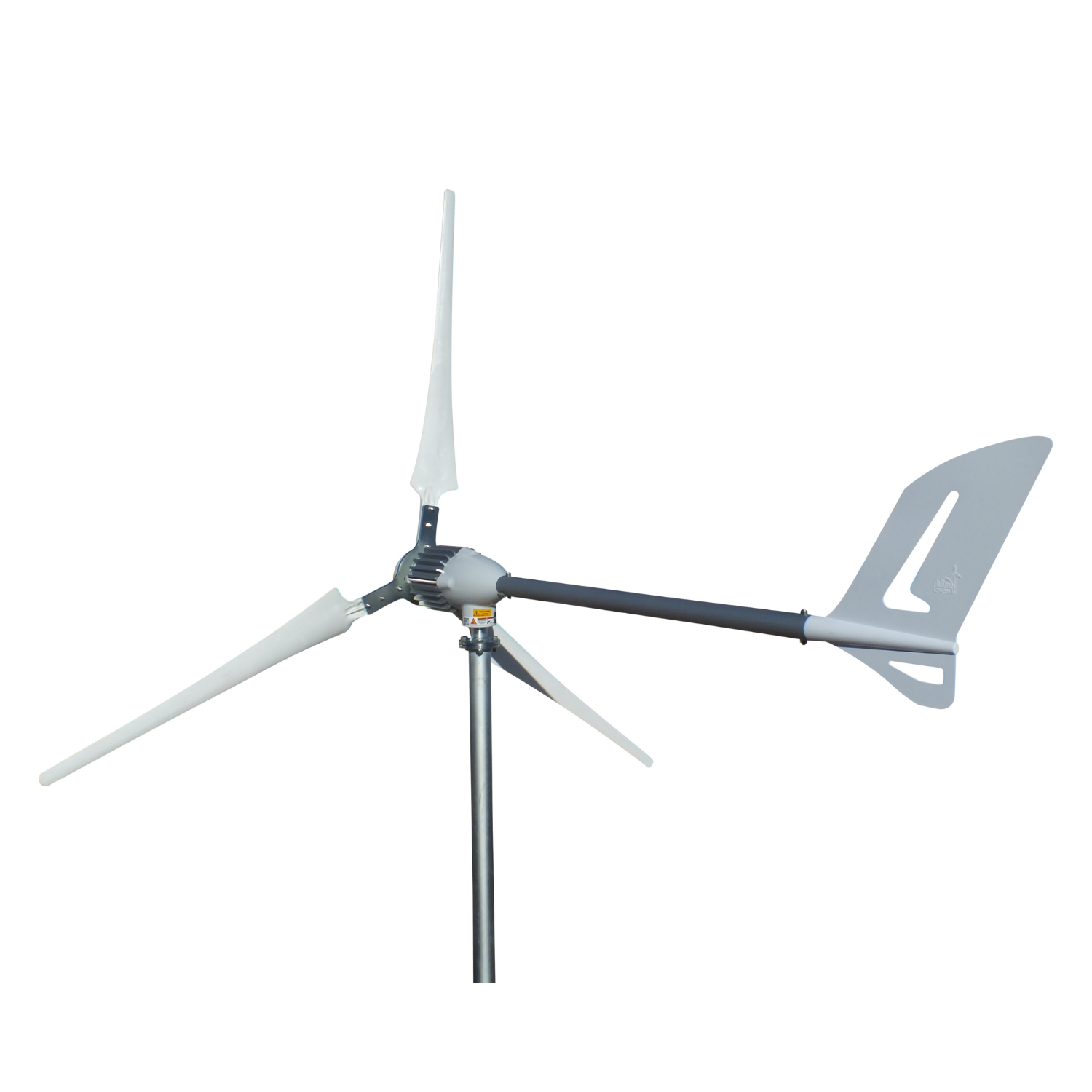

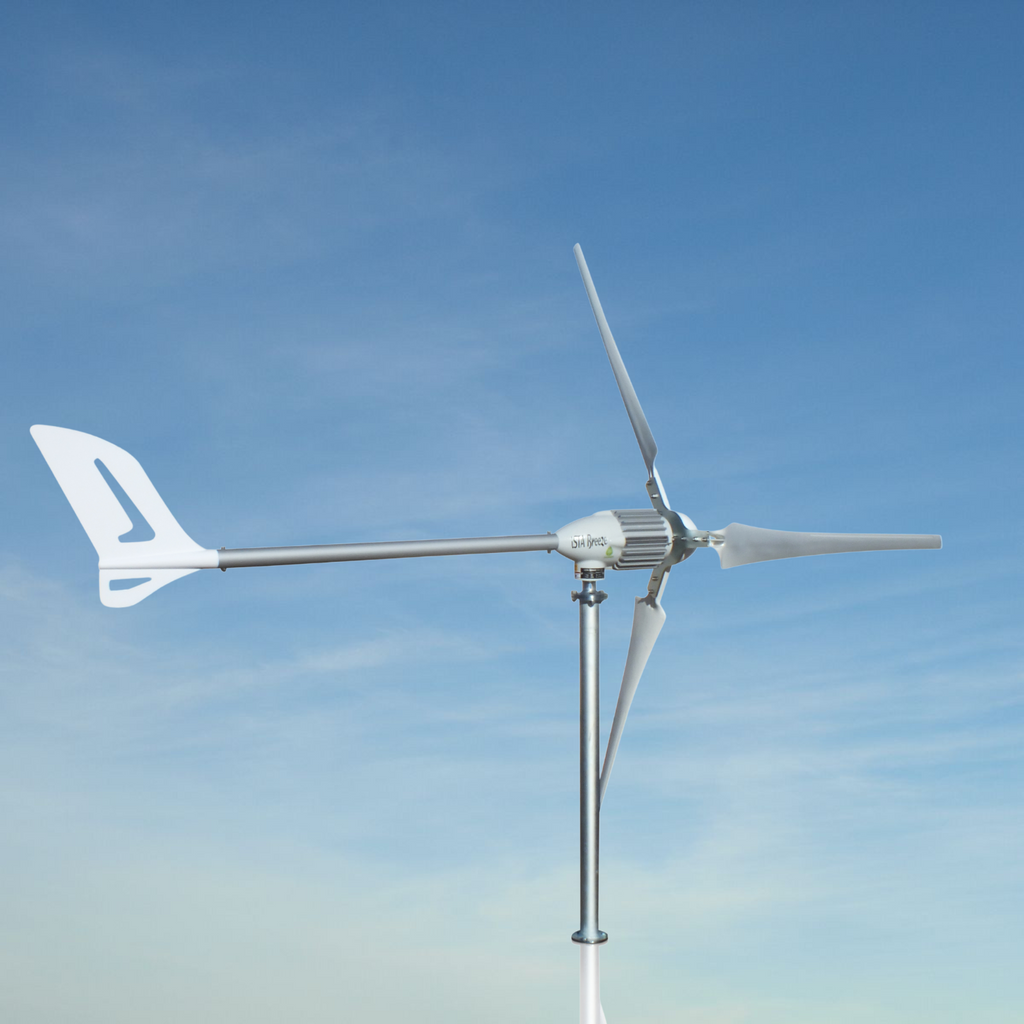

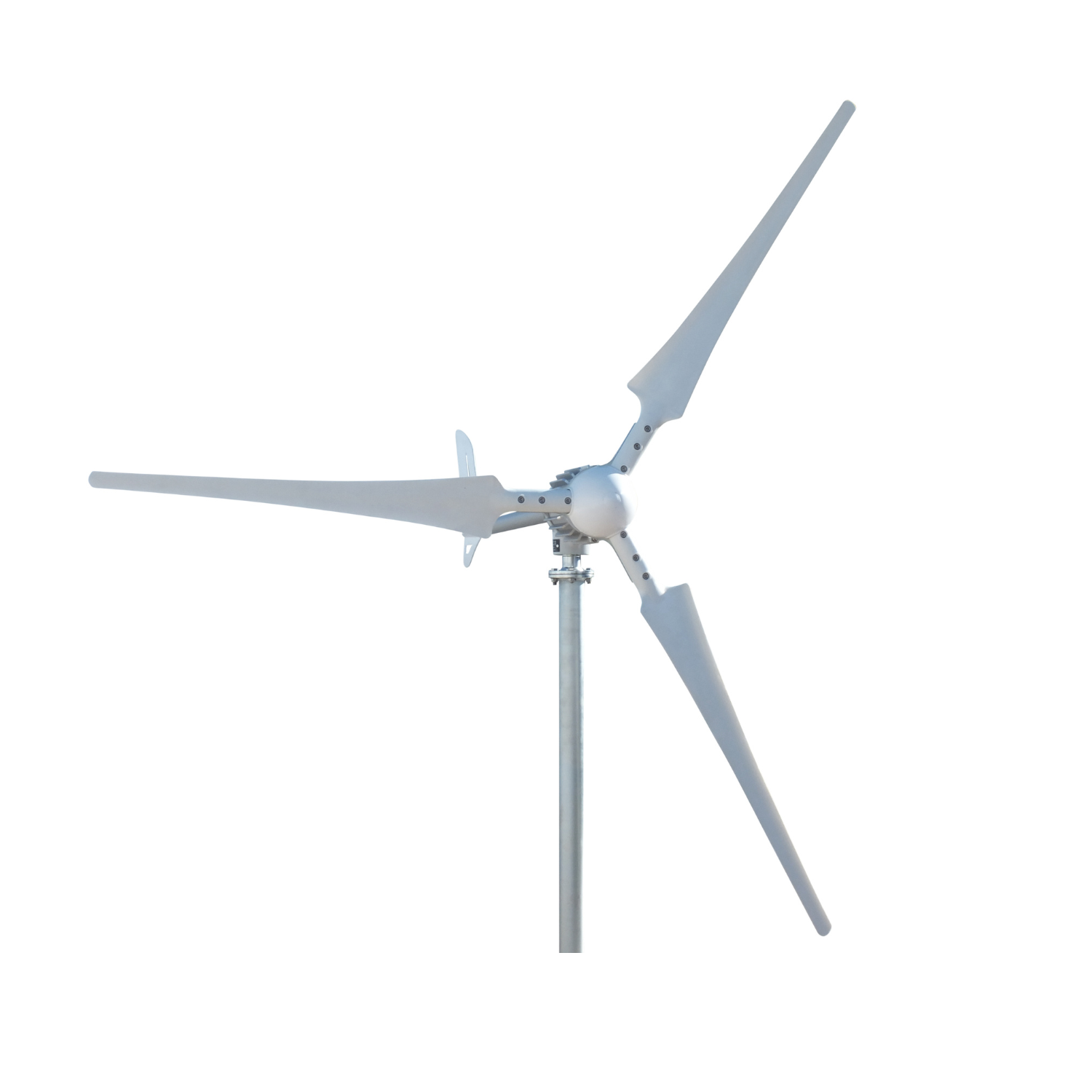

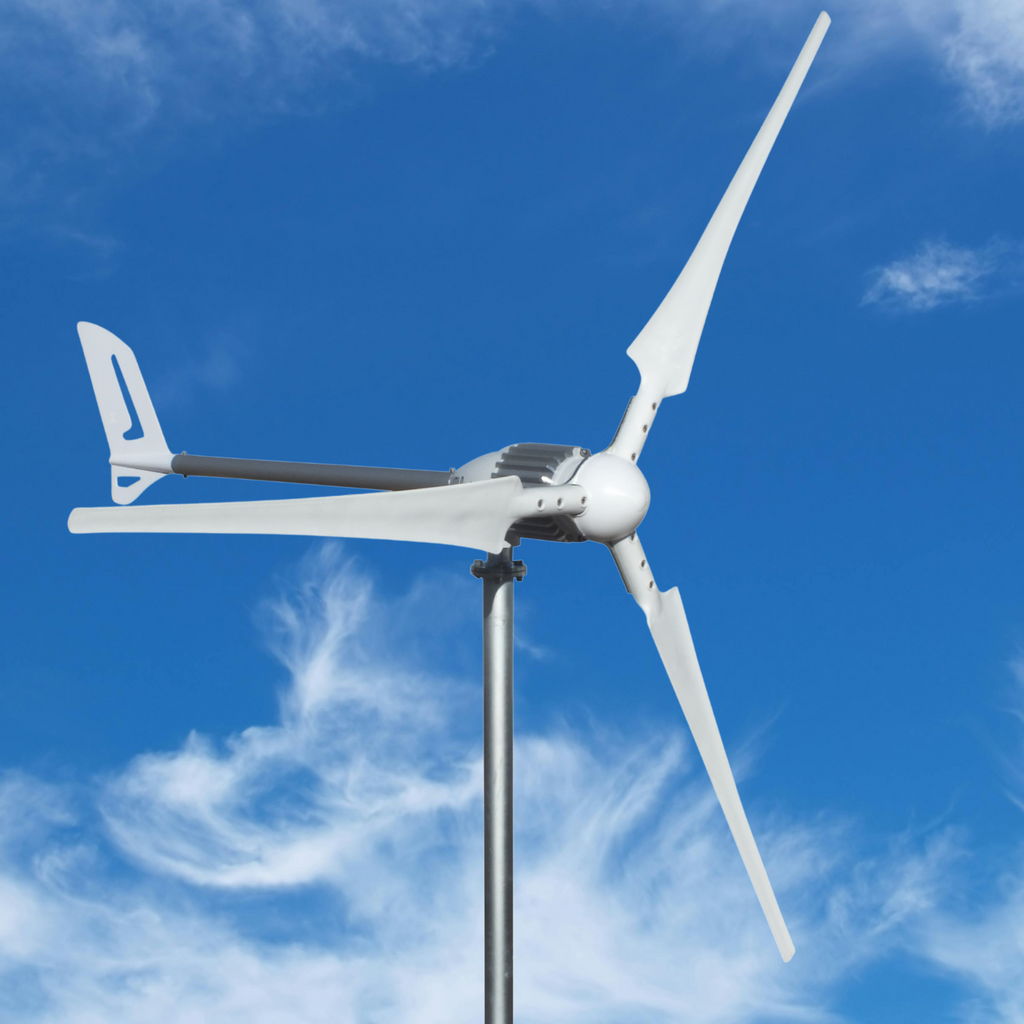

- 3-blade (standard): Better for sites averaging 6–7 m/s or higher.

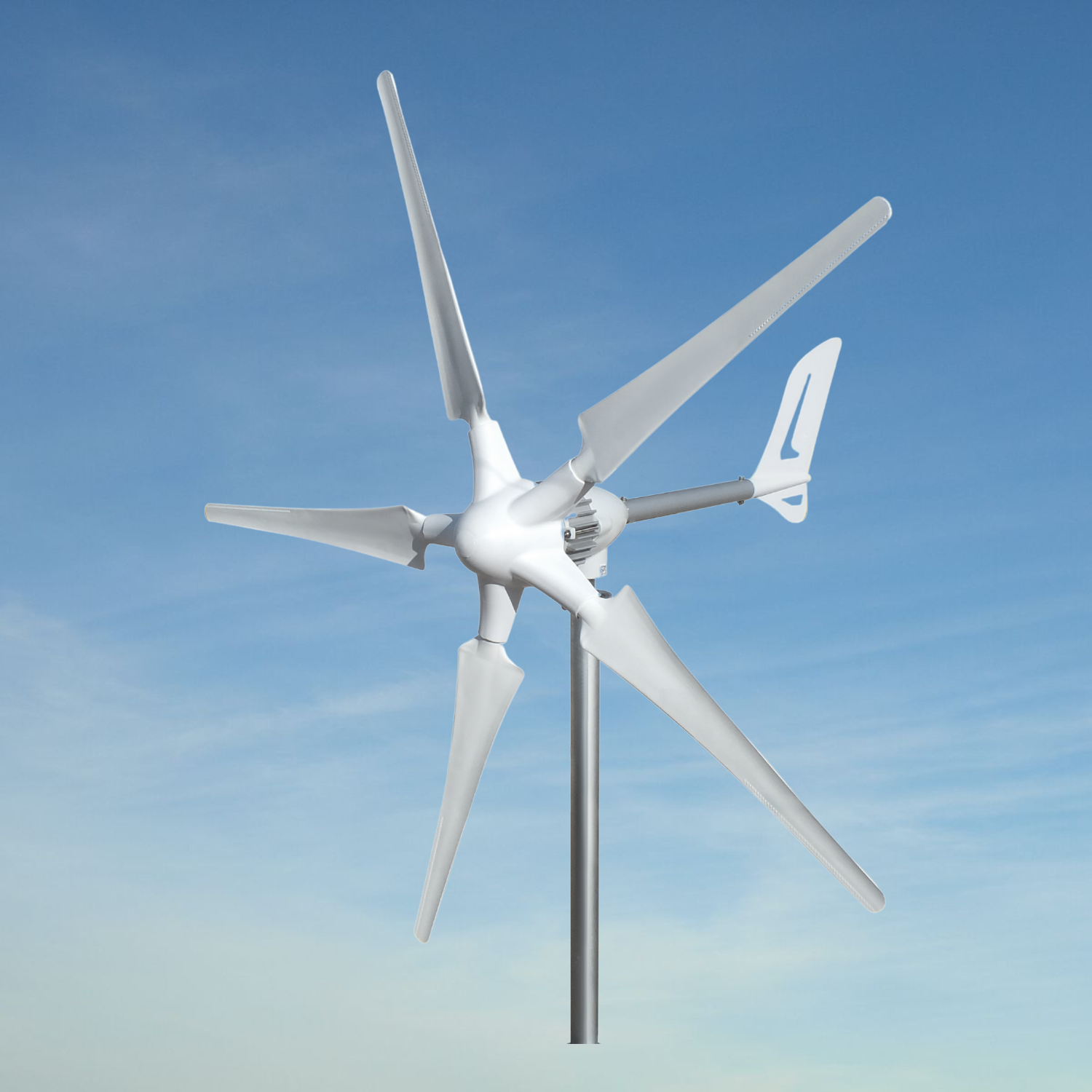

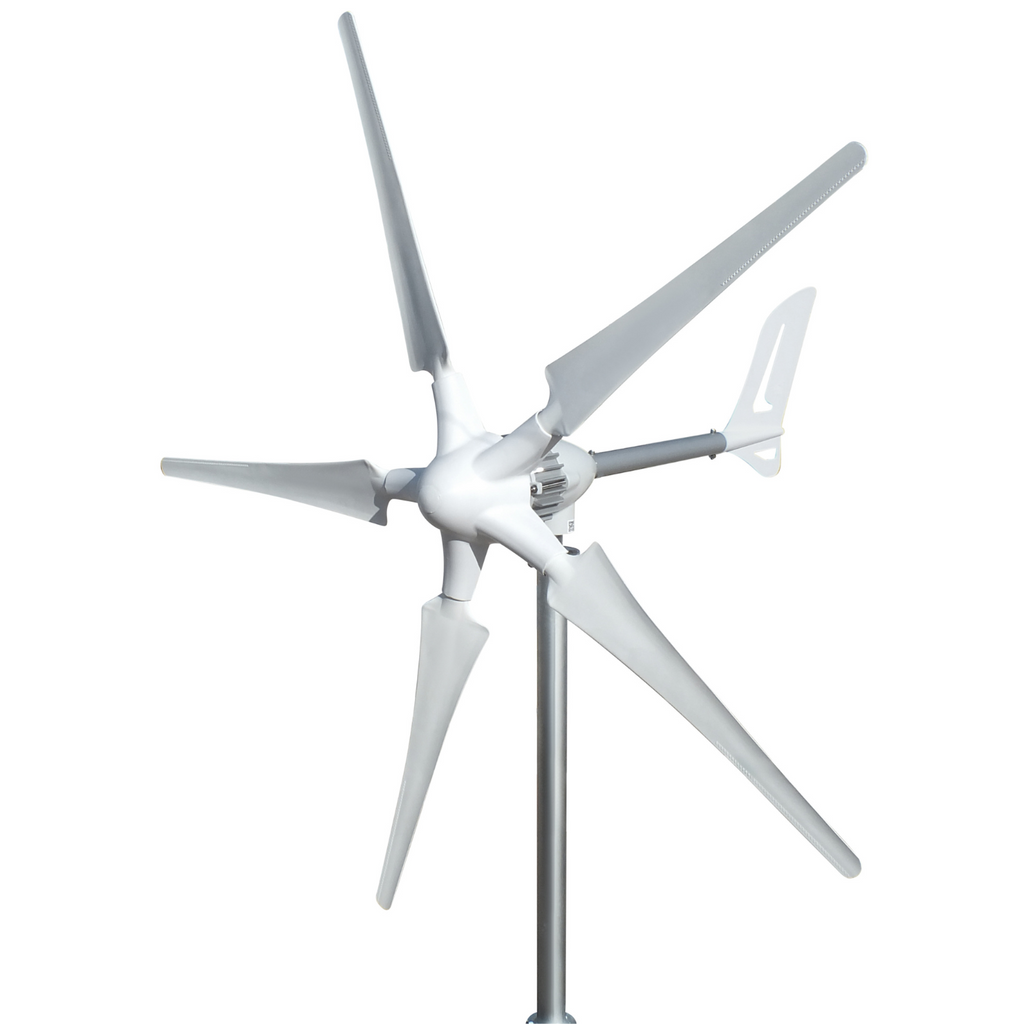

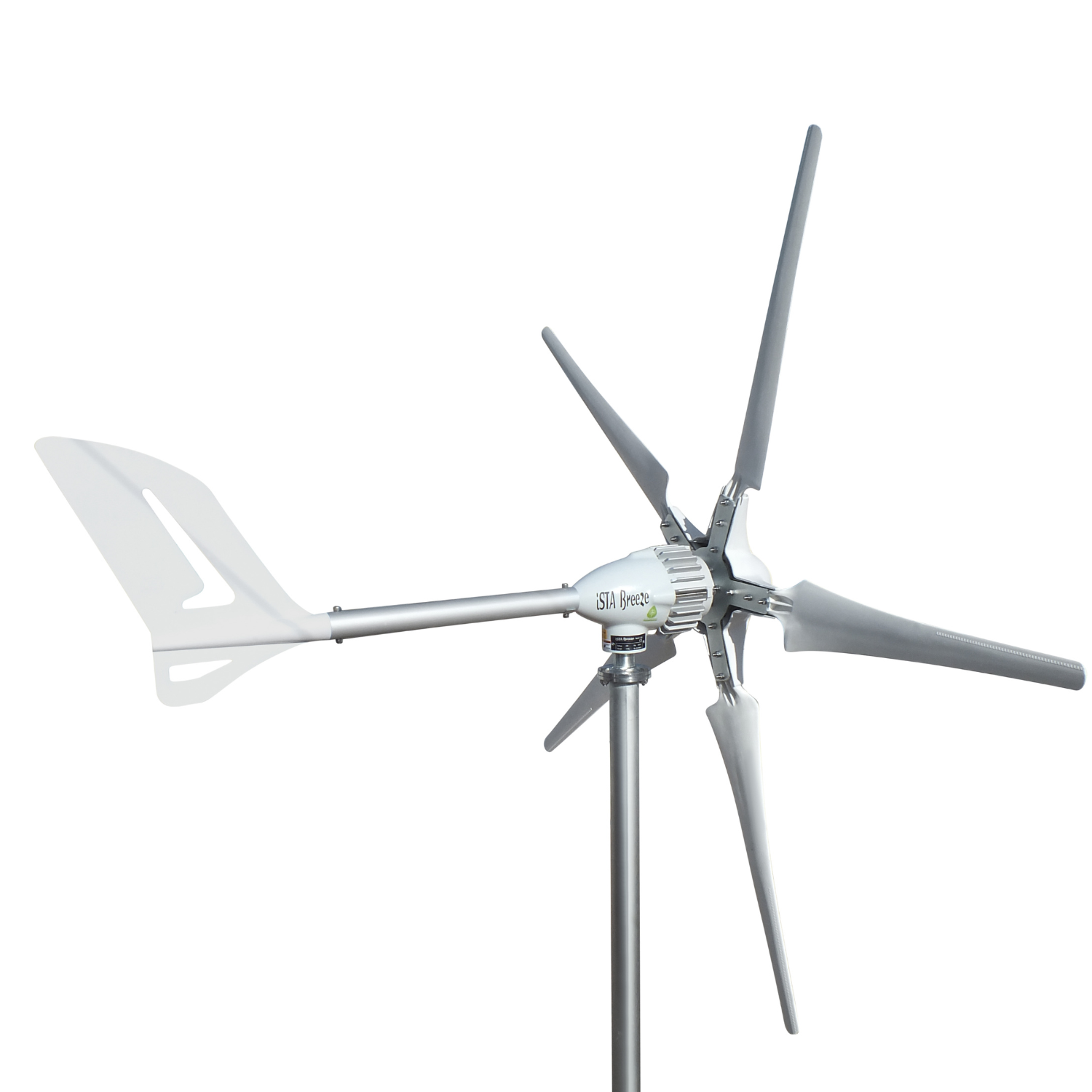

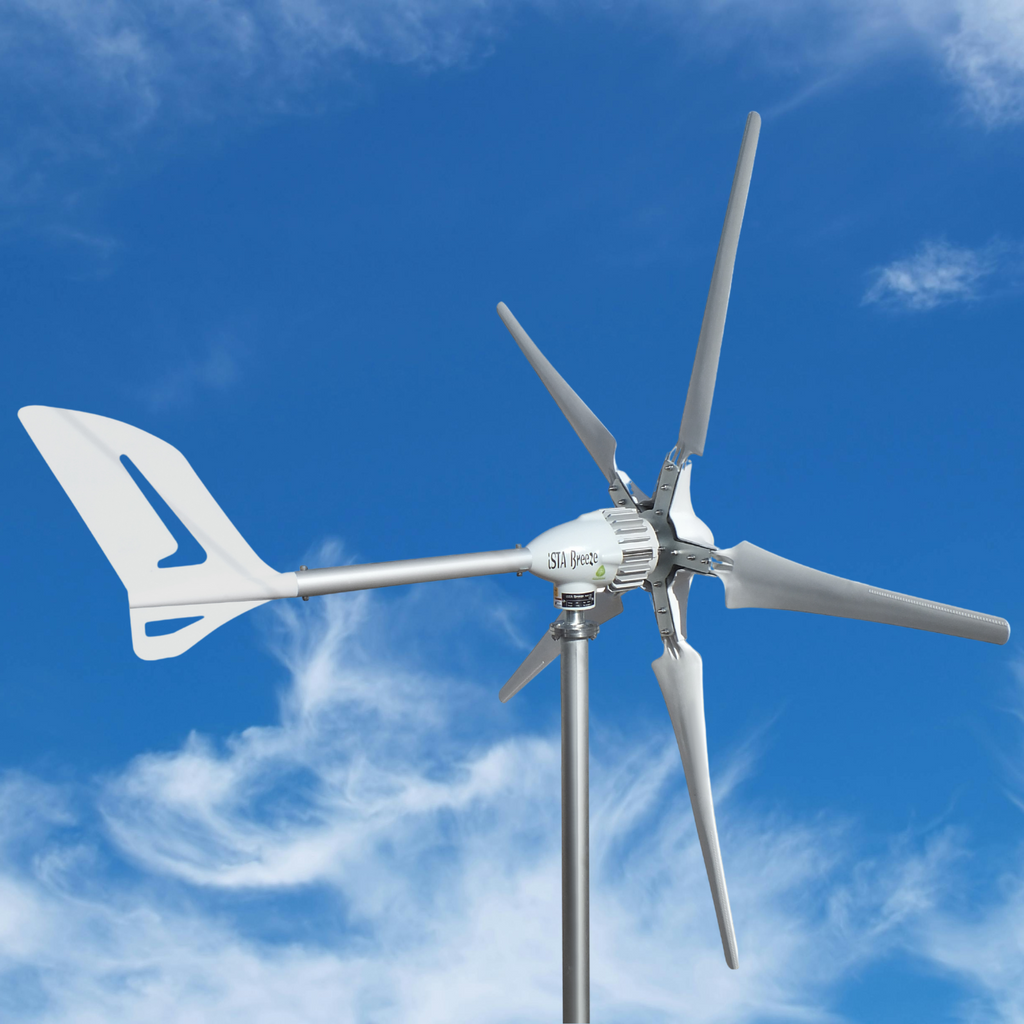

- 5-blade (low-wind): Recommended only for low-wind areas under 5 m/s. Loses up to 35% output versus 3-blade at higher speeds.
- Carbon blade upgrade: Resists bending in strong gusts, can boost output up to 30%.
Requires a compatible grid-tie inverter: This turbine is wired for on-grid feed-in and requires a matched inverter, sold separately.
Full Specifications
| Electrical — On-Grid | |
| Max Power | 1,200W (220VAC / 5.5A) |
| Max Open Circuit Voltage | 350 VAC |
| Wind Performance | |
| Initial (Cut-In) Wind Speed | 3 m/s |
| Maximum Wind Speed | 14–15 m/s |
| Blade Specifications | |
| Blade Material | Composite or Carbon |
| Blade Length / Rotor Diameter | 107 cm / 220 cm |
| Blade Weight | 650g Composite · 770g Carbon |
| Noise Level | 40dB Carbon · 50dB Composite |
| Construction | |
| Package Weight | 21 kg total |
What's in the Box
- Wind turbine generator ×1
- Rotor blades ×3 or ×5 (per selected configuration)
- Nose cone ×1

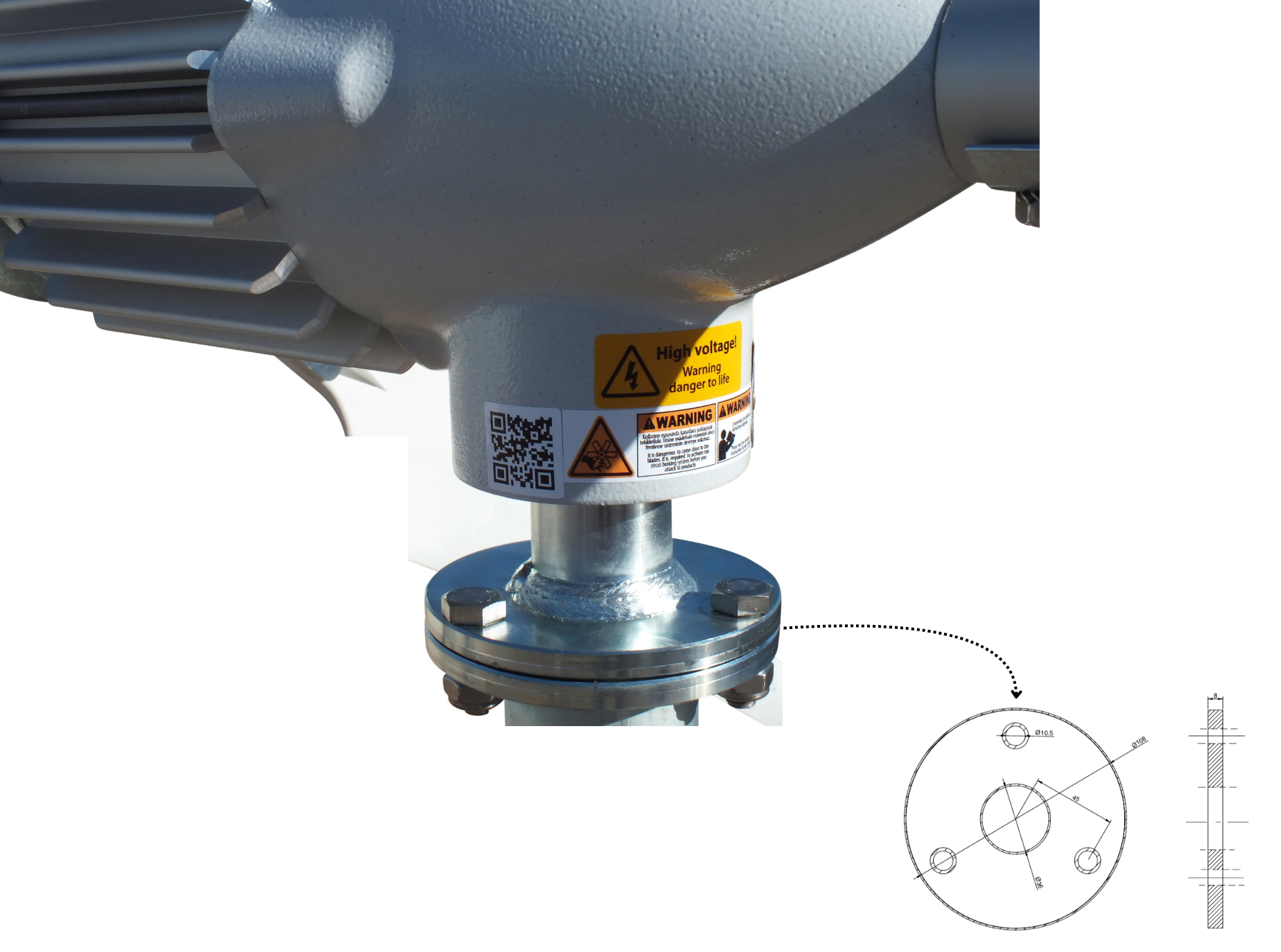

- Mounting flange ×1
- Tail / tail pipe ×1
- Manual book ×1
Grid-tie inverter and mast tower sold separately. Professional electrical installation and grid interconnection permitting required. Backed by a 2-year manufacturer's warranty.
