FJD Trion V100F GNSS-LiDAR Fusion System - RTK Survey Rover
Price on request
Pricing depends on configuration, site and accessories. Request a quote for your project.
- 8 mm + 1 ppmRTK horizontal (RMS)
- ±5 cmSureFix within 20 m
- IP65Ingress protection
- 1.75 kgWeight
Before you buy
Priced by quote. OmniNova confirms the configuration, controller, pole, correction source, FJD Trion Survey and FJD Trion Model licensing, and lead time with your quote.
RTK needs a base station or network corrections.
Warranty terms are set by FJ Dynamics and confirmed with your quote.
Request a quote
Tell us about your site and we will confirm configuration, accessories, lead time and delivered pricing.
Request a quote Email our teamCall (210) 900-2018 · Mon–Fri, 9 AM–5 PM CT
- Free shippingIncluded in the price
- Talk to an expert(210) 900-2018 · Mon-Fri 9-5 CT
- Secure checkoutEncrypted payment by Shopify
- Manufacturer warrantyWarranty terms set by FJ Dynamics
Why Buy from Us
At OmniNova Home Systems, we believe buying premium home technology and lifestyle products should be simple, transparent, and backed by real customer support. We carefully screen our products and partner with reputable manufacturers to help ensure quality, reliability, and long-term value. Customers benefit from competitive pricing, free shipping on most items, responsive customer service, and access to white glove delivery and turnkey solutions on select products. We also offer an online price match program to help ensure you receive exceptional value while maintaining manufacturer-authorized pricing standards. Whether you're upgrading your home with smart technology, renewable energy solutions, security systems, simulators, drones, or advanced entertainment products, our mission is to provide a streamlined shopping experience with dependable support before and after your purchase.
Disclaimers
- Price match requests must comply with manufacturer Minimum Advertised Price (MAP) policies and may not apply to unauthorized sellers, clearance items, auctions, membership-only pricing, or pricing errors.
- Customer service response times are based on availability and may be limited during federal holidays, including but not limited to Christmas Day, Thanksgiving Day, and New Year’s Day.
- Free shipping applies to most products unless otherwise noted on the product page. Additional shipping charges may apply to oversized, freight, remote-area, or specialty items.
- White glove services and turnkey solutions are available only on qualifying products and in select service areas. Availability may vary by manufacturer, carrier, or installation requirements.
- Product screening and manufacturer evaluation do not constitute guarantees, warranties, or endorsements beyond those expressly provided by the product manufacturer.

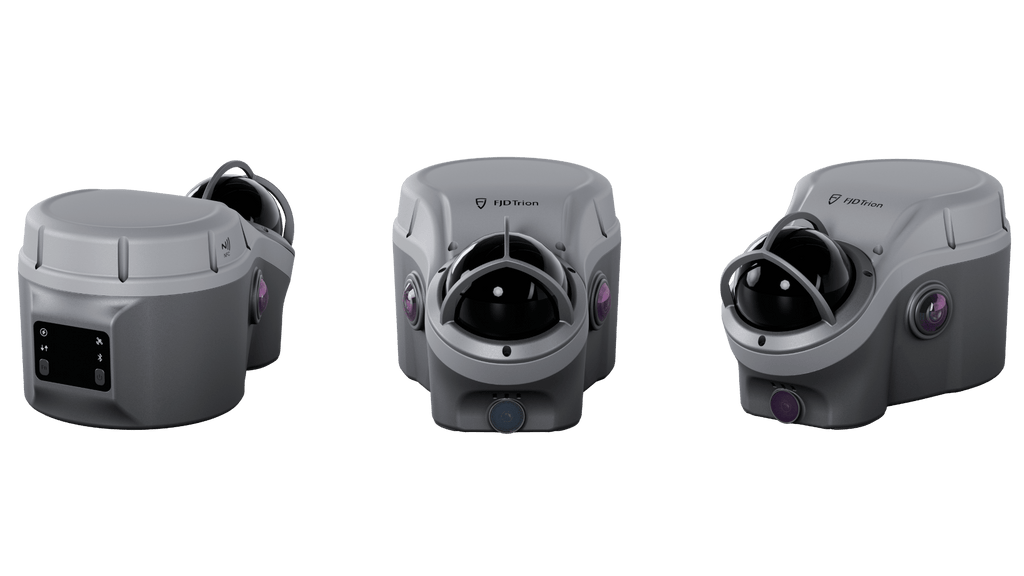

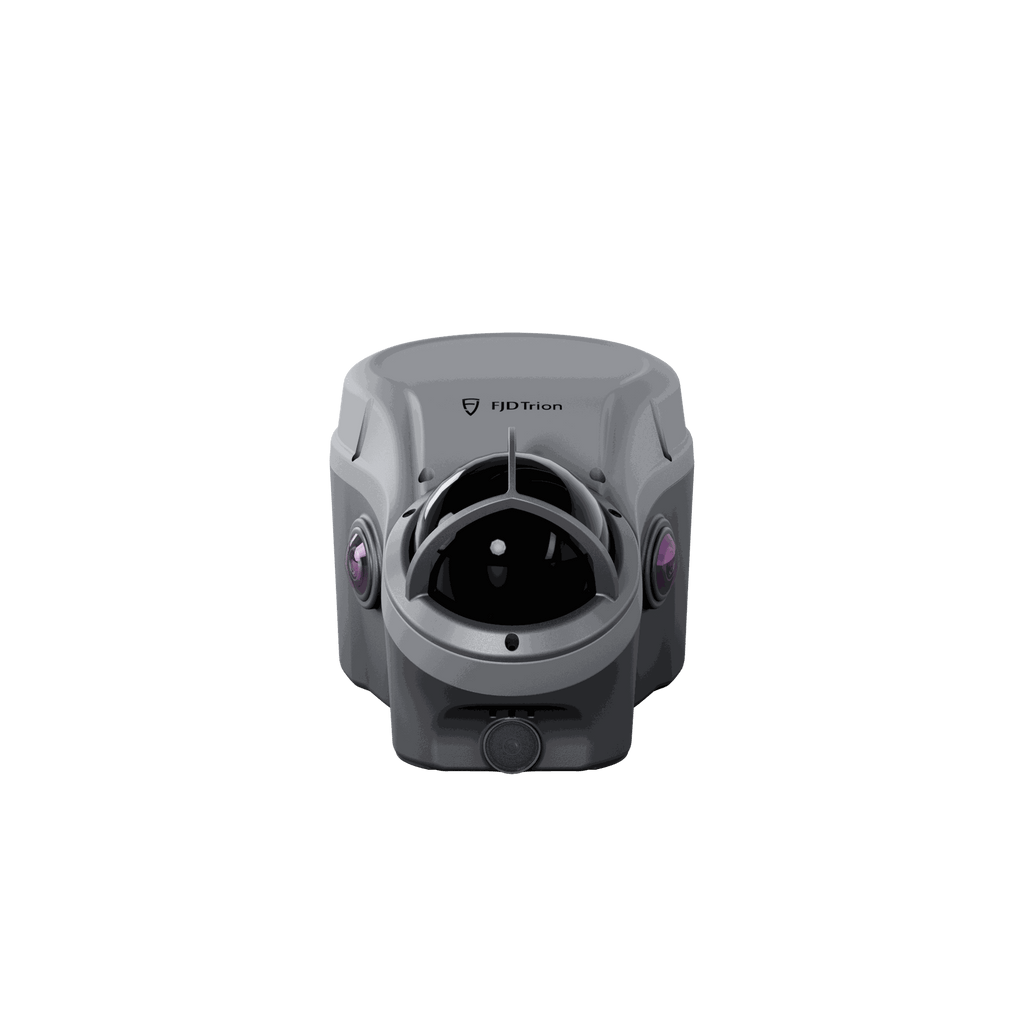

FJ Dynamics Trion V100F · GNSS-LiDAR fusion
Keep surveying where GNSS gives out
GNSS, LiDAR, cameras and IMU work together for continuous capture from open sky into obstructed, GNSS-limited and indoor areas, with cross-sections and volumes ready in the field.
8 mm + 1 ppm
RTK horizontal (RMS)
±5 cm
SureFix within 20 m
IP65
Ingress protection
1.75 kg
Weight
SureFix
Reliable measurement in GNSS-limited areas

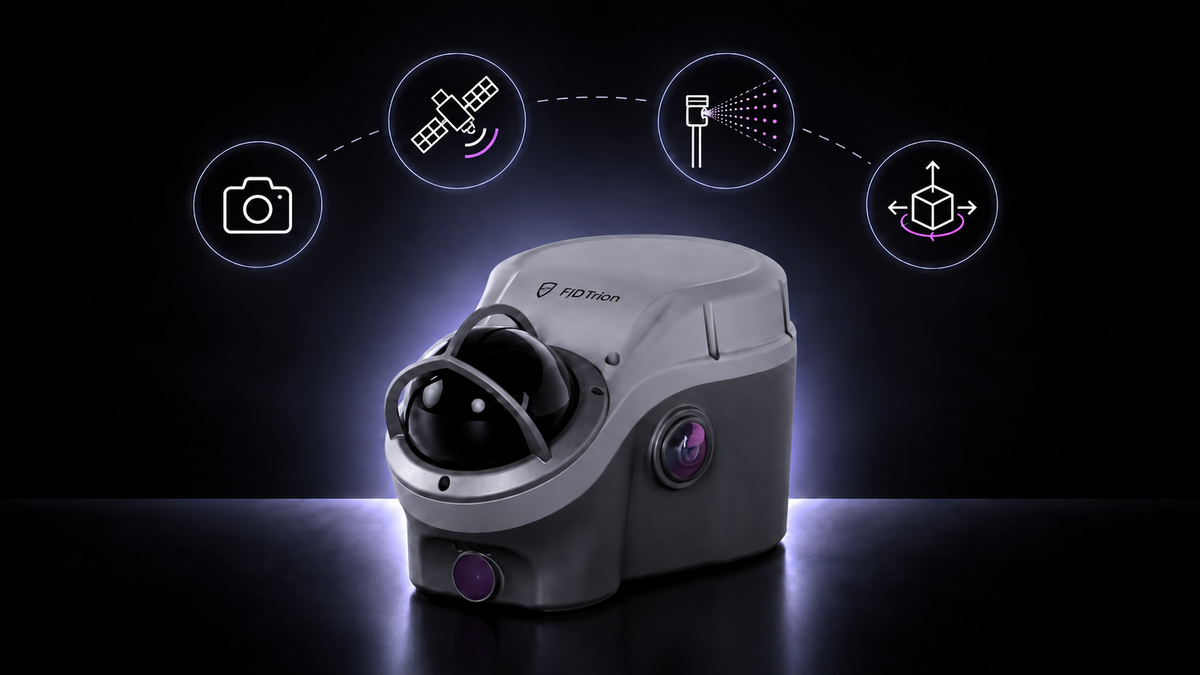

Multi-sensor fusion
Four sensor types in one rover

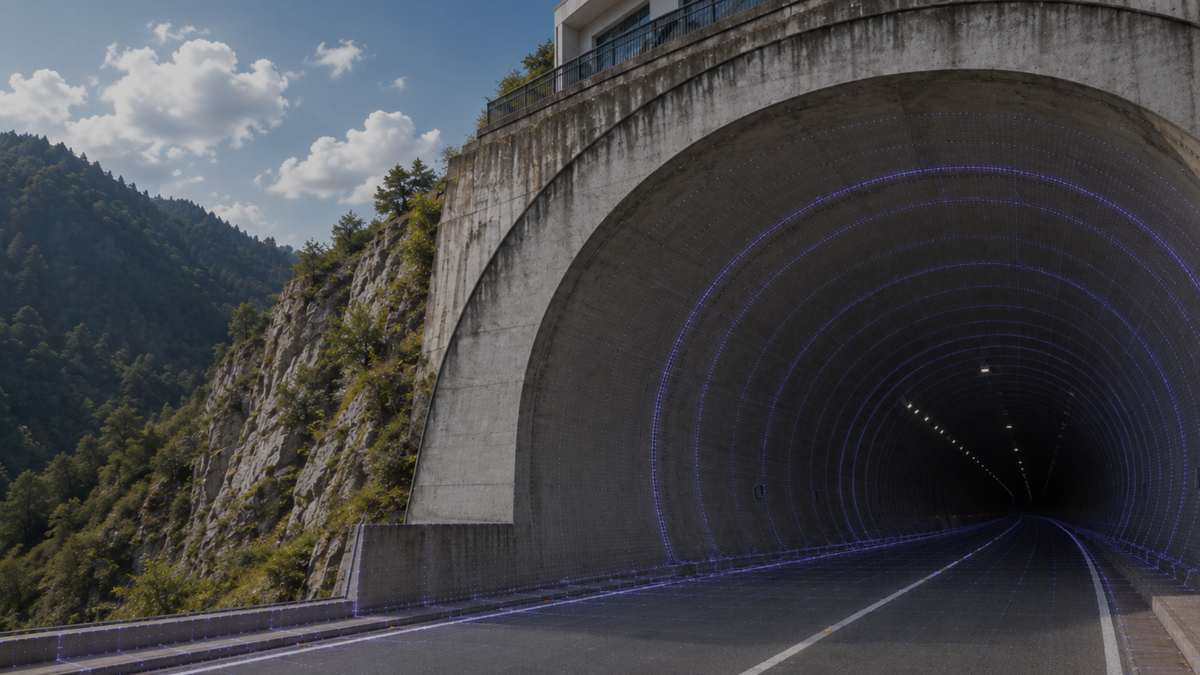

Earthworks
Cross-sections and volumes in one pass

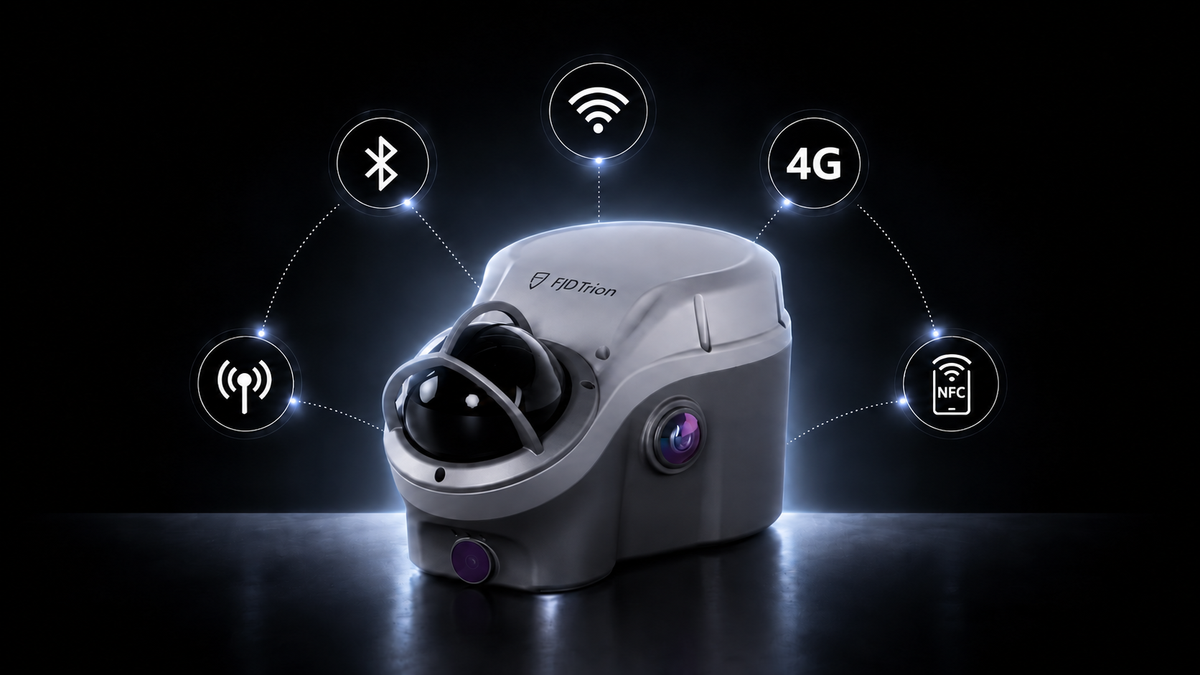

UHF, 4G, Wi-Fi, Bluetooth, NFC
Connected in the field
| GPS | L1 C/A, L1C, L2C, L2P, L5 |
| GLONASS | L1, L2, L3 |
| BeiDou | B1I, B2I, B3I, B1C, B2a, B2b |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1, L2C, L5, L6 |
| NavIC / SBAS | L5 / L1 C/A |
| Positioning rate | 1, 2, 5, 10 and 20 Hz |
| Range | 40 m @ 10% reflectivity; 60 m @ 80% reflectivity |
| Field of view | H 360° × V 62° |
| Lines | 32 |
| Eye safety | Class 1 |
| Surveying camera | 1 × 12 MP; 73° × 58° (87° diagonal) |
| Color cameras | 2 × 12 MP; 240° FOV |
| Bottom camera | 1 × 2 MP; 77° × 62° (92° diagonal) |
| RTK | H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS |
| RTK with tilt compensation | 8 mm + 0.6 mm/° tilt RMS; 0–60° |
| LiDAR survey | ±5 cm @ 20 m typical |
| SureFix | ±5 cm typical within 20 m radius |
| High-precision static | H: 2.5 mm + 0.1 ppm; V: 3.5 mm + 0.4 ppm RMS |
| Post-processing static | H: 2.5 mm + 0.5 ppm; V: 5 mm + 0.5 ppm RMS |
| PPK | H: 3 mm + 1 ppm; V: 5 mm + 1 ppm RMS |
| HAS-PPP | H: 20 cm; V: 40 cm RMS |
| Code differential | H: 0.4 m; V: 0.8 m RMS |
| Autonomous | H: 1.5 m; V: 2.5 m RMS |
| UHF radio | Rx/Tx 410–470 MHz / 902–928 MHz; 2 W; TRIMTALK, TRIMTALK 450S, TRANSEOT, TRIMMARK 3, SATEL, LoRa; typically 6–12 km, up to 16 km in optimal conditions |
| Cellular | TDD-LTE, FDD-LTE, WCDMA, GSM, EDGE; Nano-SIM |
| Wi-Fi / Bluetooth / NFC | 2.4 and 5 GHz 802.11a/b/g/n/ac; Bluetooth 2.1 EDR to 5.0 BLE; NFC |
| Ports | 7-pin LEMO; UHF antenna; USB Type-C |
| Data formats | Output: NMEA-0183, RTCM 3.x, RINEX, LAS; input: RTCM 2.x, RTCM 3.x, CMR |
| Storage | 450 GB (approx. 12.5 h of on-site scan data or 25 h of point cloud data, ideal conditions) |
| Operating temperature | -20 to 55 °C (-4 to 131 °F) |
| Storage temperature | -40 to 75 °C |
| Humidity | 95% non-condensing |
| Protection | IP65; IK08 |
| Battery | 14.8 V / 5,000 mAh / 74 Wh; 45 W PD fast charge, about 3.5 h |
| Runtime | LiDAR scanning: typ. 15 W, up to 5 h; UHF/4G RTK rover: typ. 3 W, up to 22 h |
| Dimensions | 215 × 130 × 120 mm |
| Weight | 1.75 kg |
| Screen | 1.41-inch true-color OLED (320 × 360) |
| Manufacturer warranty | Warranty terms set by FJ Dynamics; confirmed with your quote |
Robotic mowers, line markers and LiDAR for pro grounds care.
Questions buyers ask
Frequently asked questions

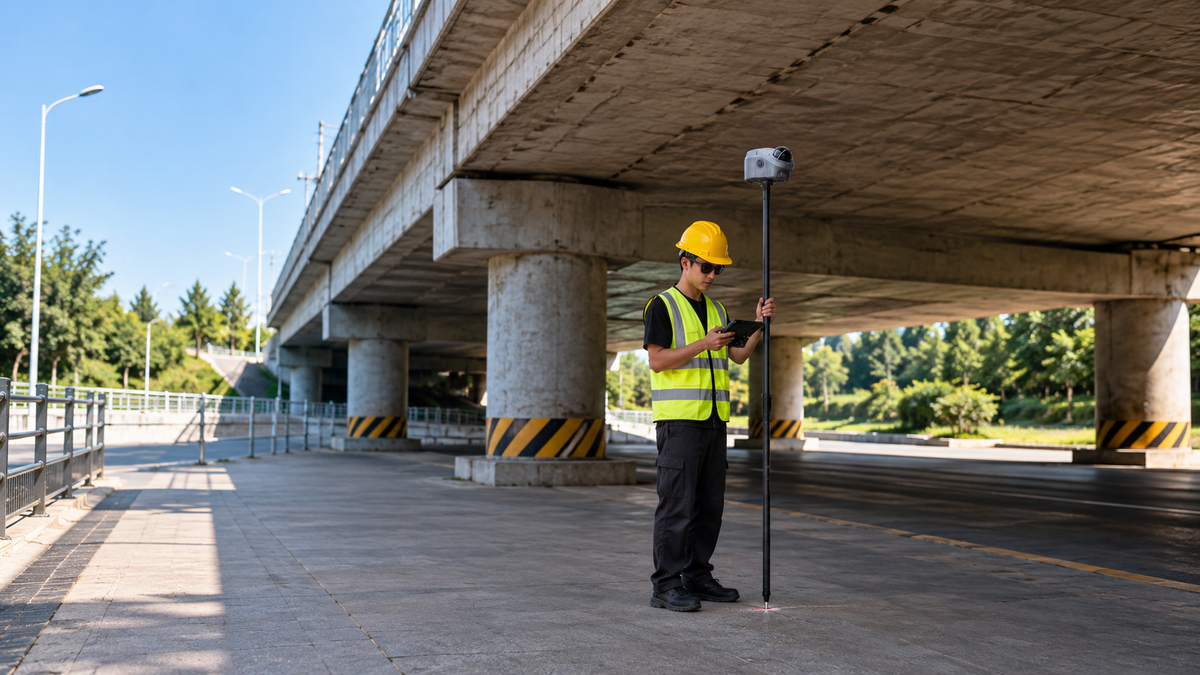

How does SureFix work?
SureFix fuses GNSS, LiDAR, cameras and IMU to maintain pole-based measurements as you move from open sky into nearby GNSS-limited areas, with ±5 cm typical accuracy within a 20 m radius.
Can I measure points I cannot safely reach?
Yes. Select targets from captured images for LiDAR-based coordinate measurement within 20 m at ±5 cm typical accuracy. FJD cites trench edges, wall corners, areas beneath bridges and slope boundaries.
Can it calculate volumes on site?
Yes. Capture stockpiles, slopes and earthworks, and FJD Trion Survey gives volume results in the field. Process point clouds and prepare outputs in FJD Trion Model in the office. Software licensing is confirmed with your quote.
Does it need a base station?
For RTK, you need corrections from a base station (the V100F has a built-in UHF radio) or a network via the built-in 4G modem. We confirm the correction setup, controller and pole with your quote.
How long does the battery last?
Up to 5 hours while LiDAR scanning, or up to 22 hours as a UHF/4G RTK rover. It recharges in about 3.5 hours with 45 W PD fast charging.
