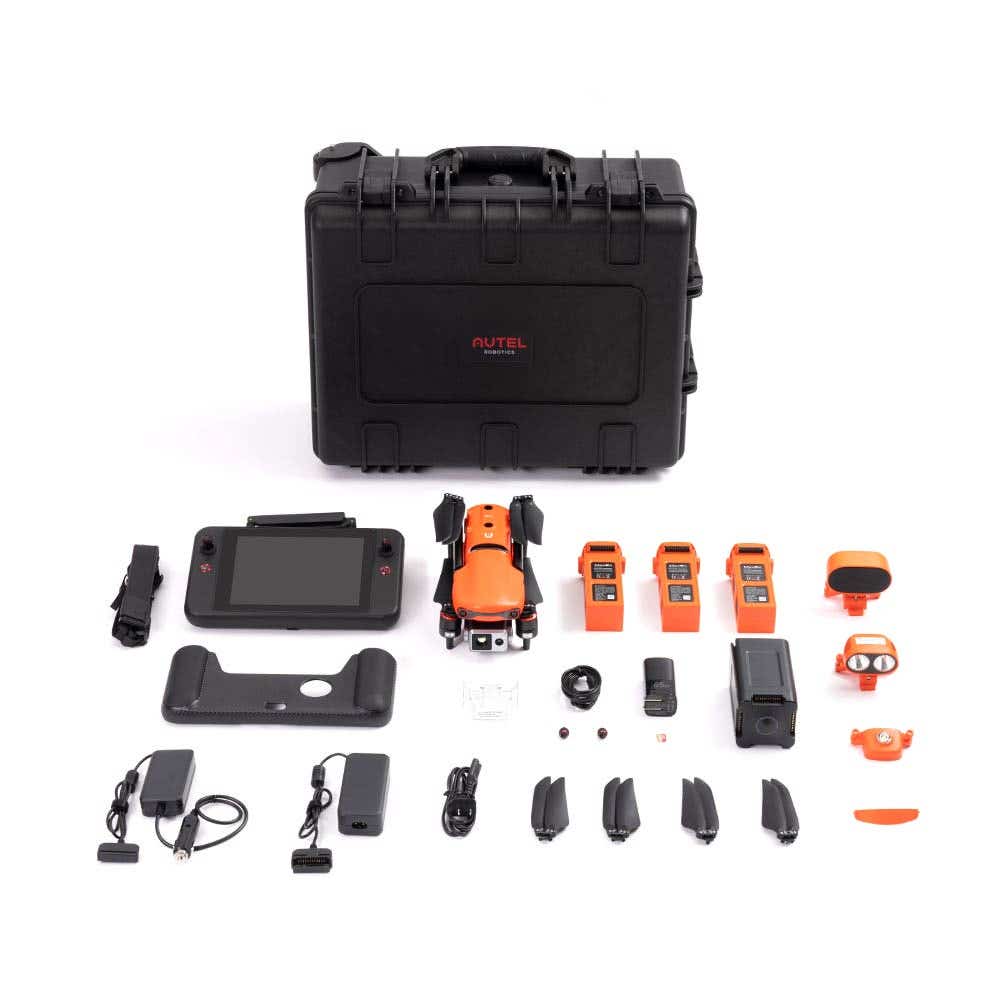

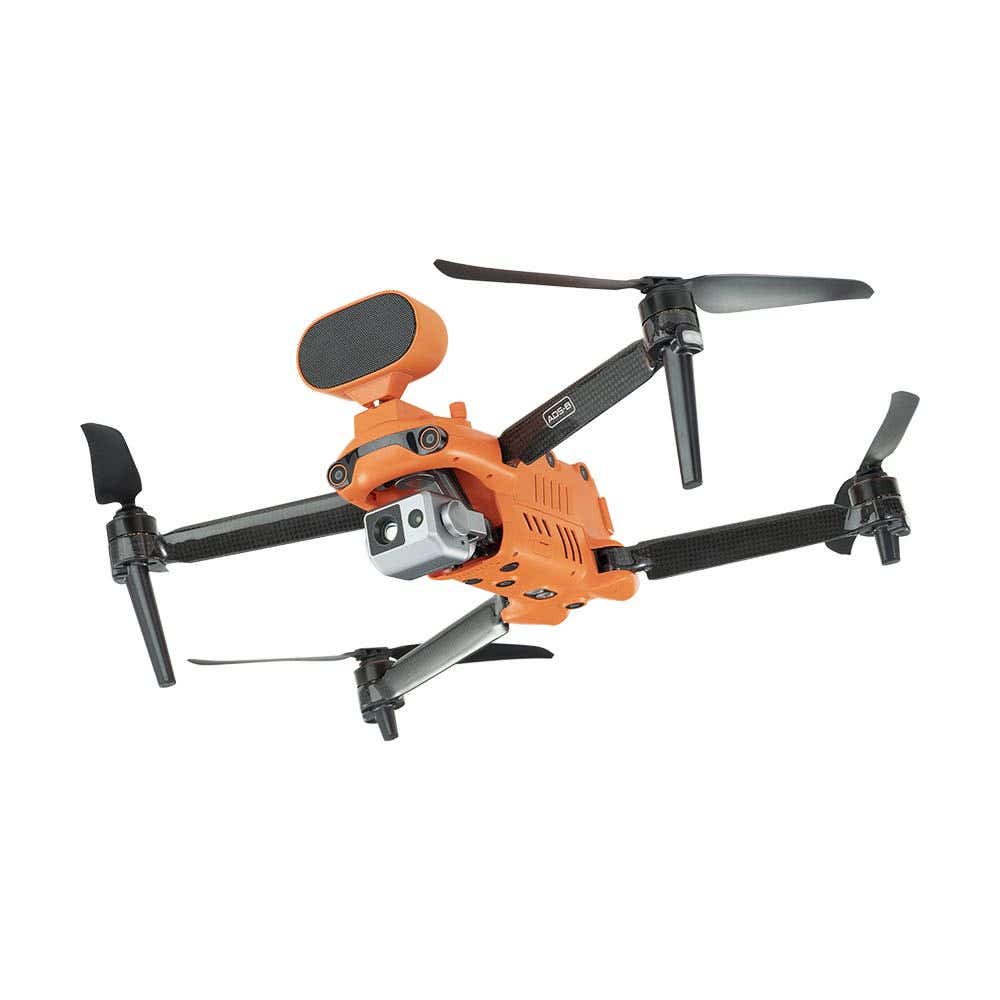

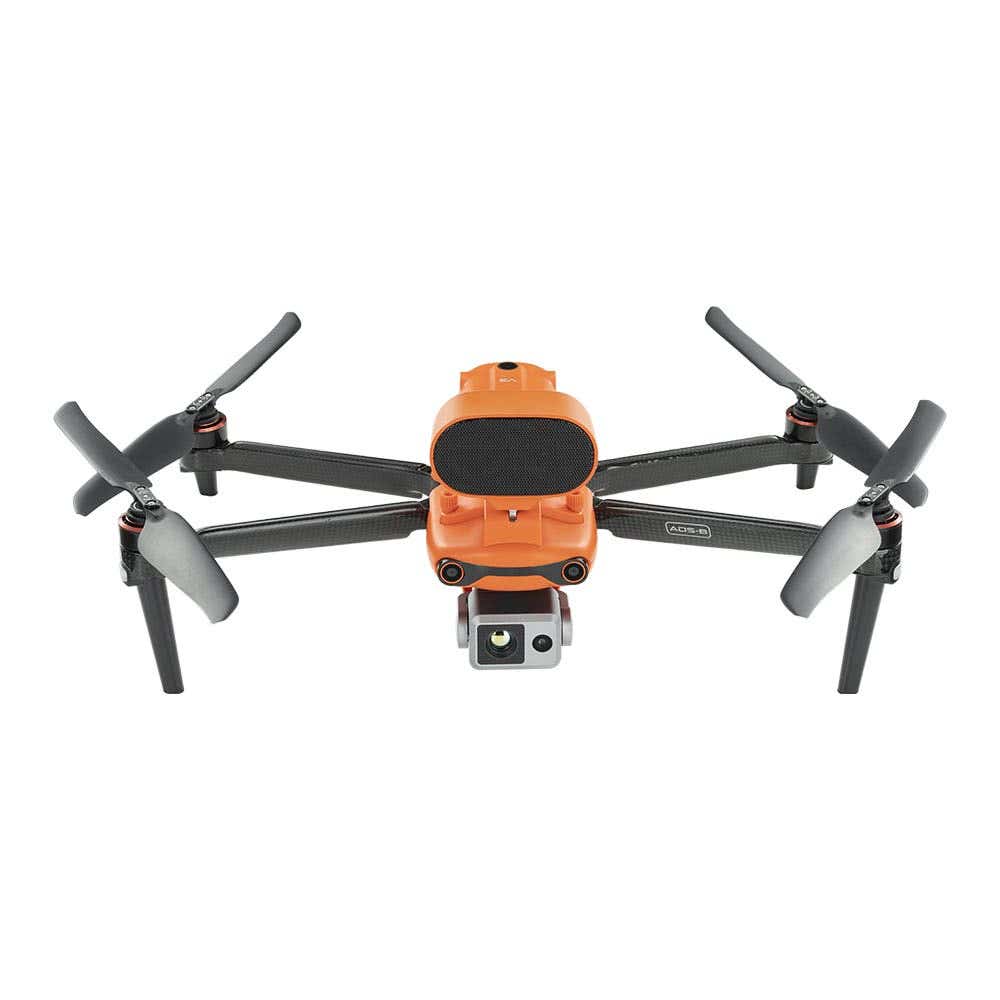

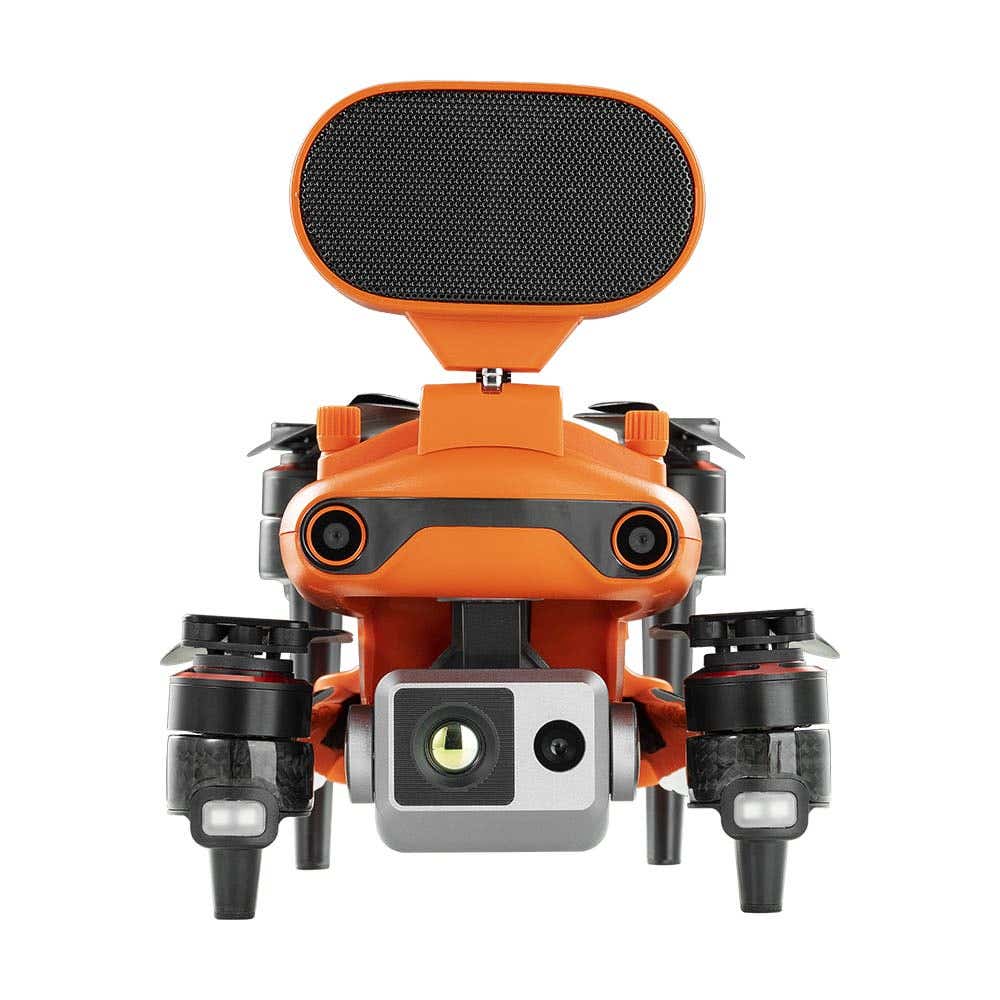

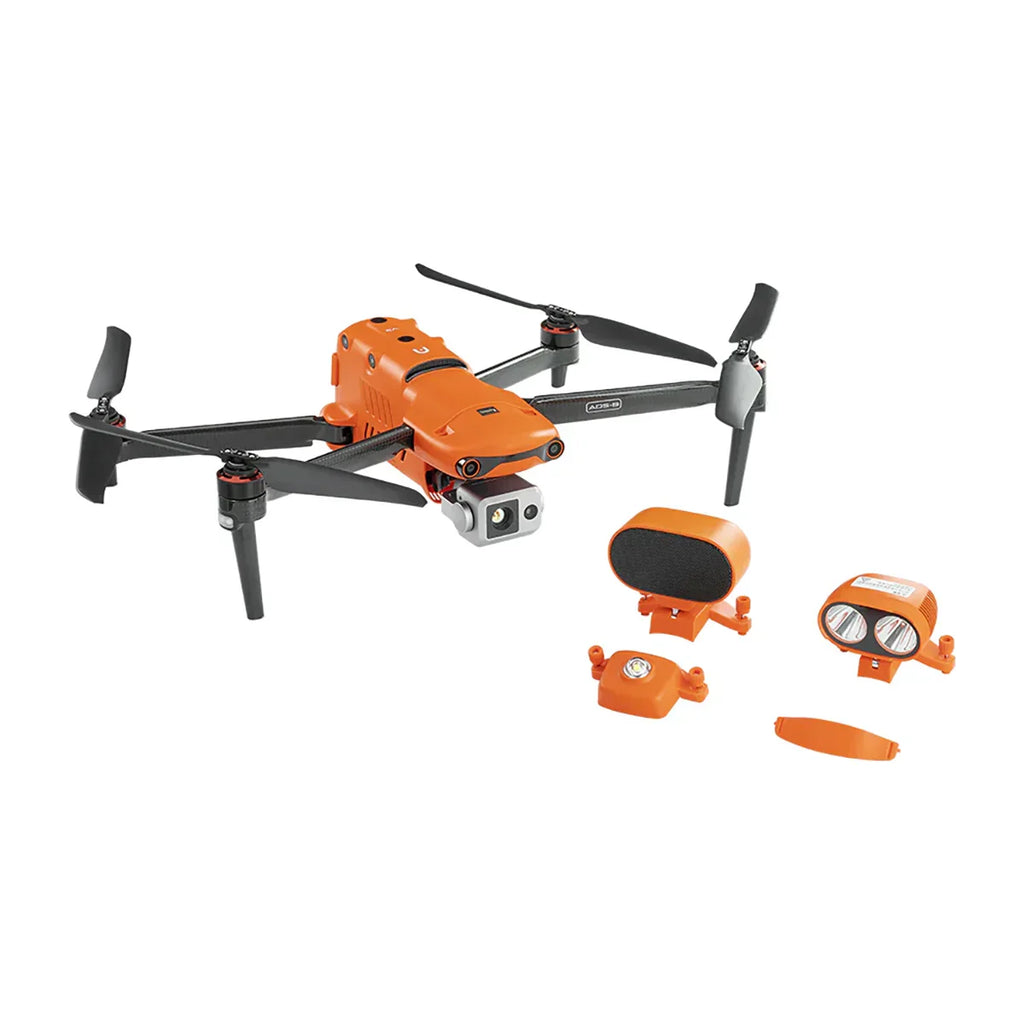

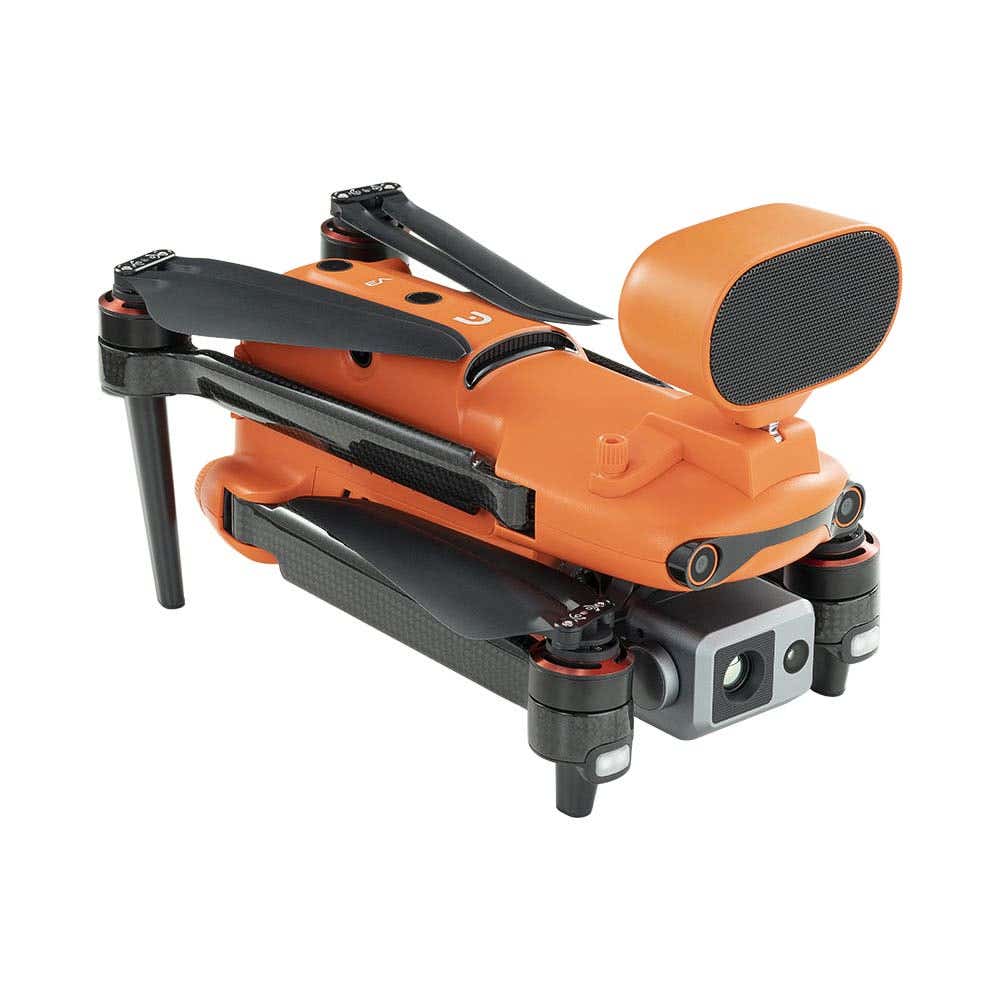

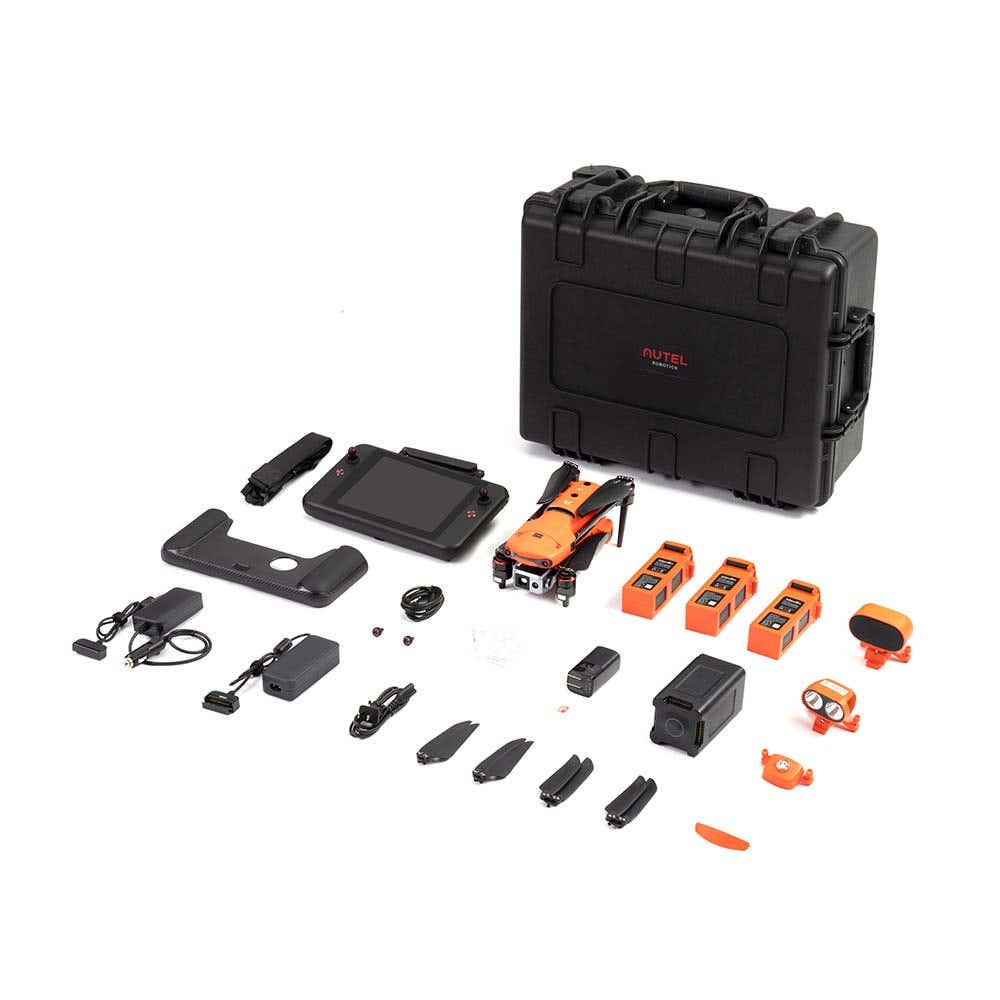

Autel EVO II Dual 640T Enterprise Bundle V3: Dual-sensor thermal and visual capability for enterprise missions
The Autel EVO II Dual 640T Enterprise V3 is a professional-grade thermal drone built for industrial inspections, emergency response, and precision mapping. This latest generation features a high-resolution 640×512 thermal sensor, a 50MP RYYB visual camera, SkyLink 2.0 with a 15 km transmission range, and robust safety tools-all packed into a compact and field-ready platform.
The Autel EVO 2 Dual 640T Enterprise drone combines a high-resolution thermal imaging sensor with a 50MP RGB camera for mission-critical detail.
Thermal Imaging with the 640T Sensor
The EVO II Dual 640T Enterprise V3 integrates a high-resolution thermal camera with:
- Resolution: 640×512 thermal sensor
- Frame Rate: 30Hz for smooth real-time feedback
- Zoom: 16x digital zoom for remote temperature analysis
- Temperature Modes: Multiple temperature measurement modes (spot, regional, etc.)
- Color Palettes: Customizable thermal views for clarity in various conditions
This payload is built for thermal imaging specifications demanded in public safety, firefighting, powerline inspections, and industrial surveys.
50MP Visual Camera with Ultra-Sensitive Sensor
Capture high-detail RGB imagery with advanced low-light performance:
- Sensor Type: RYYB CMOS with Moonlight Algorithm 2.0
- Resolution: 50 megapixels
- Tracking: PDAF + CDAF autofocus keeps moving subjects sharp
- Forensics-Ready: Ideal for documentation, inspections, and search missions
Pairing thermal and visual sensors provides layered data capture for better operational decisions.
Below is a breakdown of both sensors' capabilities so you can evaluate performance at a glance.
| Feature | Thermal Camera (640T) | Visual Camera (RGB) |
|---|---|---|
| Sensor Type | VOx Microbolometer | RYYB CMOS with Moonlight Algorithm 2.0 |
| Resolution | 640 × 512 pixels | 50 Megapixels |
| Frame Rate | 30Hz | 4K/60fps video playback |
| Zoom | 16x Digital Zoom | PDAF + CDAF Autofocus |
| Thermal Modes | Multiple temperature measurement modes (spot, regional, etc.) | N/A |
| Color Palettes | Customizable palettes for heat visualization | Standard RGB imaging |
| Use Case | Hotspot detection, inspections, search and rescue | Forensics, mapping, documentation |
- Transmission Range: Up to 15 km (FCC) with SkyLink 2.0
- Flight Time: Up to 42 minutes on a single battery
- Anti-Interference: Tri-band (900 MHz, 2.4 GHz, 5.8 GHz) frequency hopping
- Sensors: 19 total, including 12 visual sensors and IMUs for obstacle avoidance and real-time 3D path planning
Designed for complex environments where signal interference or challenging terrain are common.
- Display: 7.9" 2000-nit ultra-bright screen
- Battery Life: 4.5 hours continuous use
- Processing: Qualcomm 8-core chipset for responsive UI and 4K video playback
- Storage: 128 GB internal, no need for external cards
Built for field work where visibility, power, and responsiveness matter.
- Public Safety and Emergency Response: Quickly locate missing persons, track fire spread, and coordinate field teams using thermal imaging, live video, and onboard communication tools.
- Industrial Inspection: Assess pipelines, rooftops, and infrastructure with thermal and visual data to identify faults, energy loss, or electrical hazards.
- Surveying and Mapping: Capture accurate RGB and thermal data with optional RTK for detailed 2D/3D mapping in construction, land development, or utility planning.
- Agriculture and Land Management: Monitor crop health, water coverage, and pest activity using thermal overlays to detect issues early and reduce yield loss.
This Autel EVO 2 enterprise 640T drone offers real-world performance that matches field needs:
- Long-range video with SkyLink 2.0
- Rugged imaging in low light, smoke, or heat
- True dual-sensor capture with multiple temperature measurement modes
- Modular payload options for mission flexibility
This drone is constructed to support demanding mission profiles with consistent reliability. Its obstacle-avoidance network, advanced imaging tools, and enterprise accessories create a platform capable of operating across varied environments. With long-range connectivity, thermal measurement functions, and a foldable transport-ready design, it integrates smoothly into existing enterprise procedures and supports rapid operational scaling.
In summary, the Autel EVO II Dual 640T Enterprise Bundle V3 provides a dependable dual-sensor solution for inspection, safety, and analytical workflows. Its enterprise toolset, dependable flight systems, and flexible imaging functions make it a strong long-term investment for aerial operations.
DSLRPros has supported commercial drone operators for more than a decade with tailored solutions, mission-ready equipment, and dedicated after-purchase care. Order the Autel EVO II Dual 640T Enterprise Bundle V3 today to enhance your team’s aerial capabilities.
