- Description
• Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.
• High-Capacity & Broad Compatibility(63A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports up to 50 amps and works with 120V, 120/240V, and 120/208V systems. Fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. Connection Instructions (Video)
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.

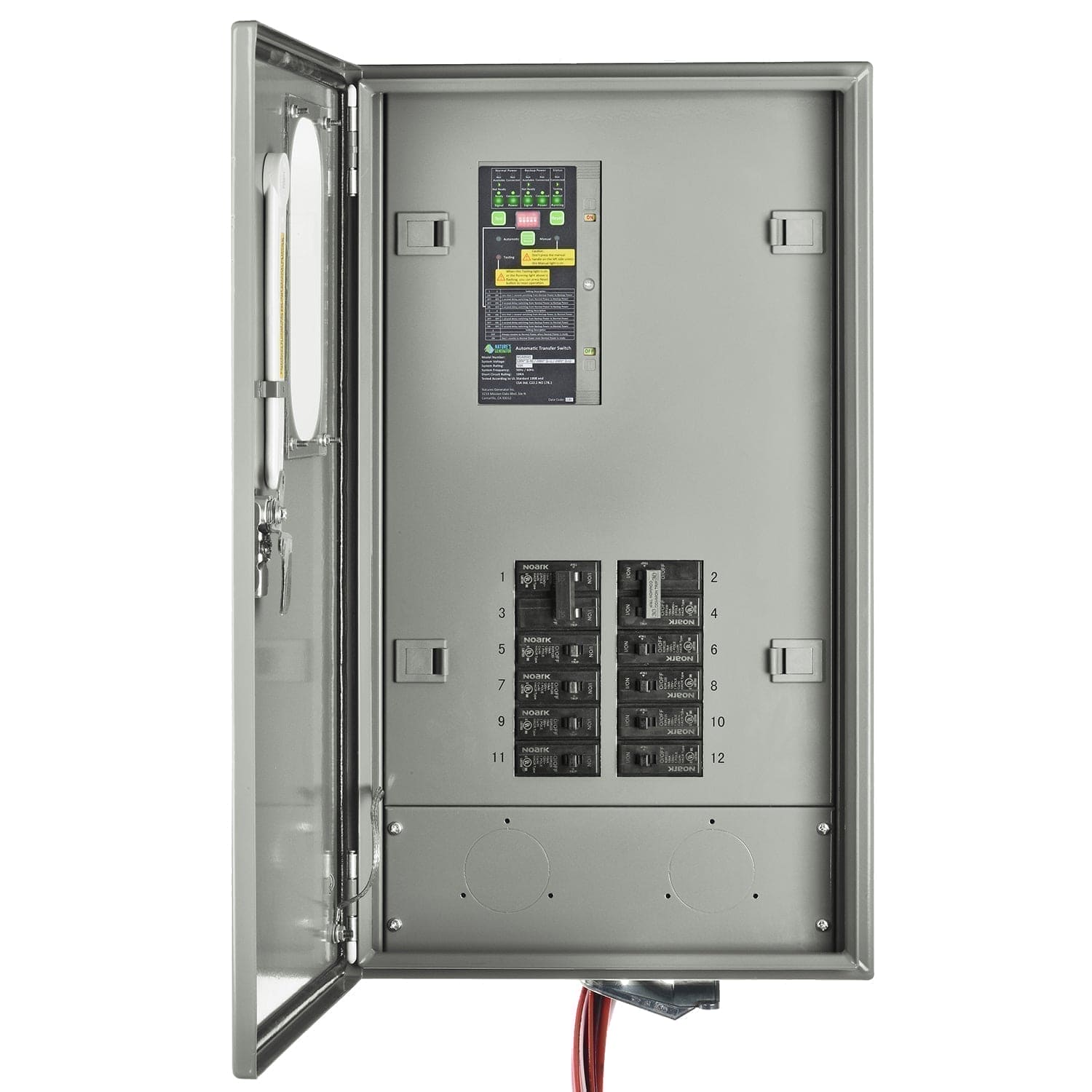

• Extensive Circuit Coverage: Manages up to 24 circuits, allowing essential appliances and systems to stay powered during outages.

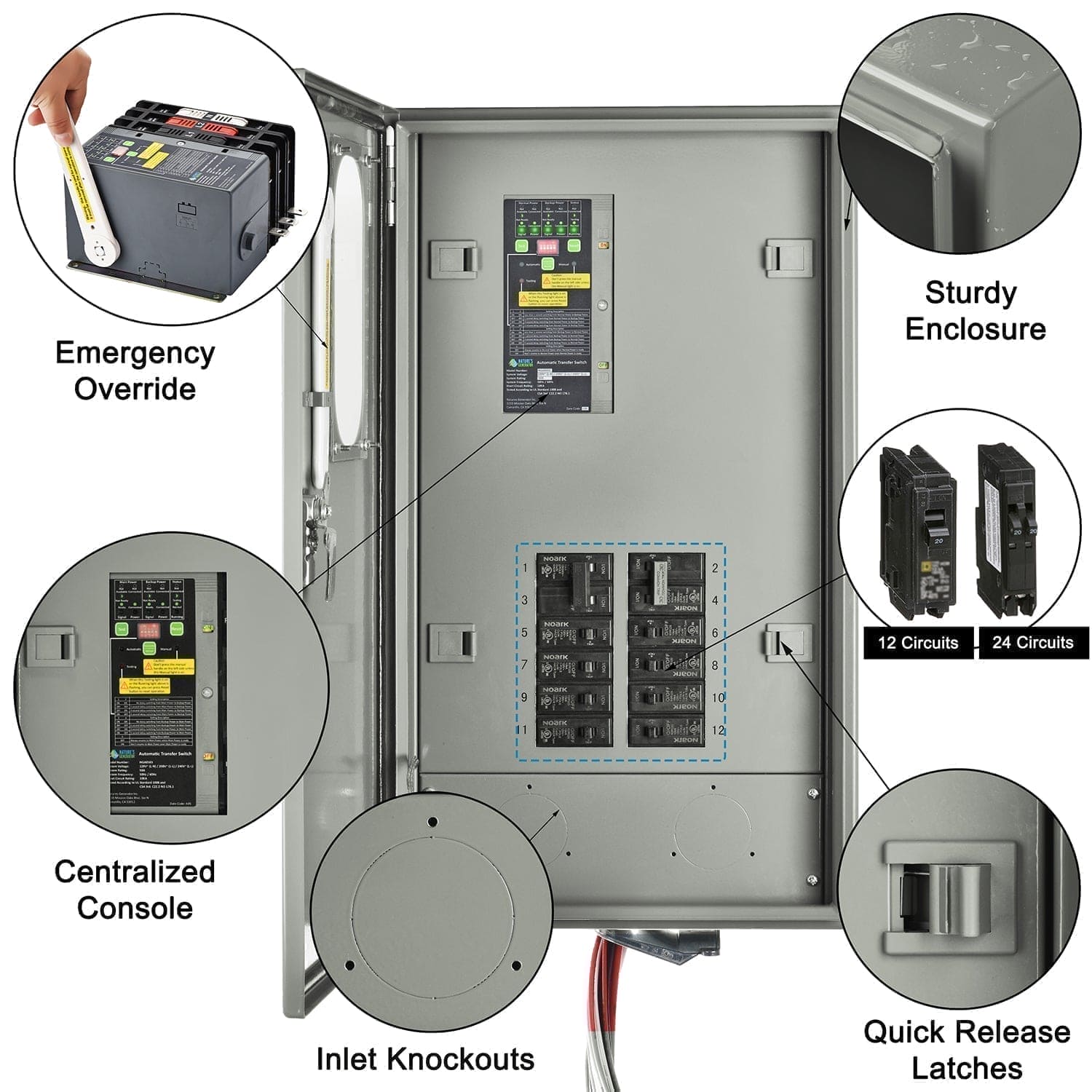

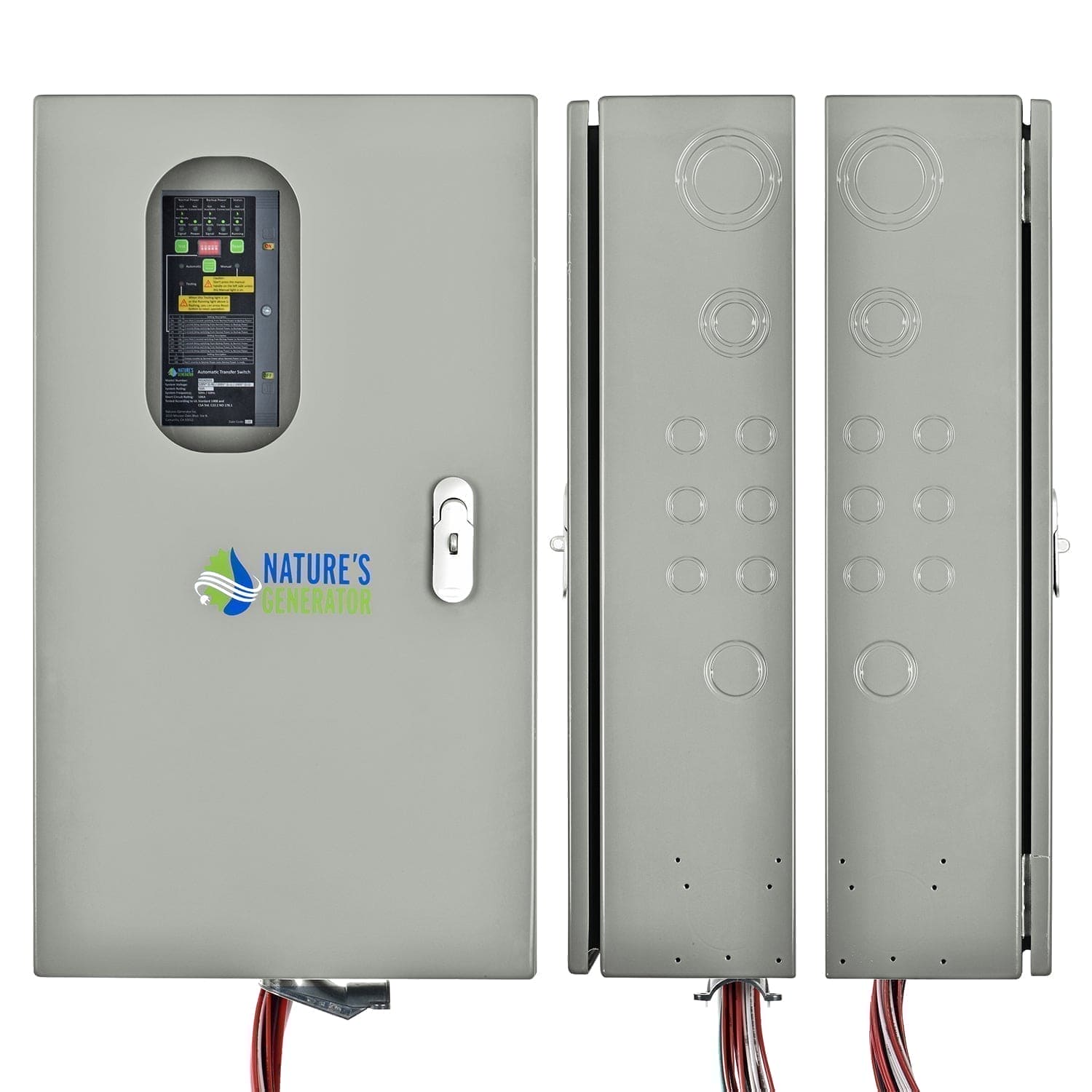

• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.

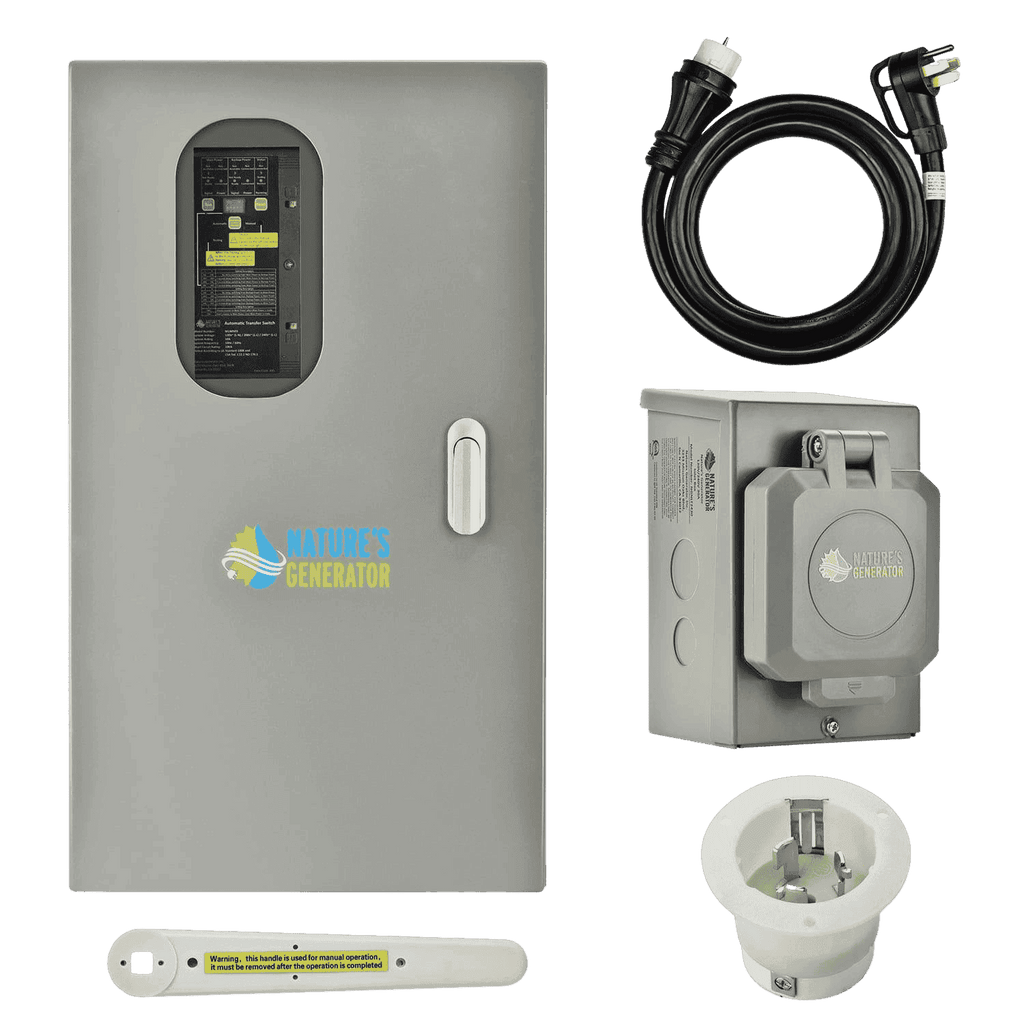

• Complete Connection & Control System: Includes a CS6375 50A inlet and 50A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.
