Description
IstaBreeze · WindSafe Series

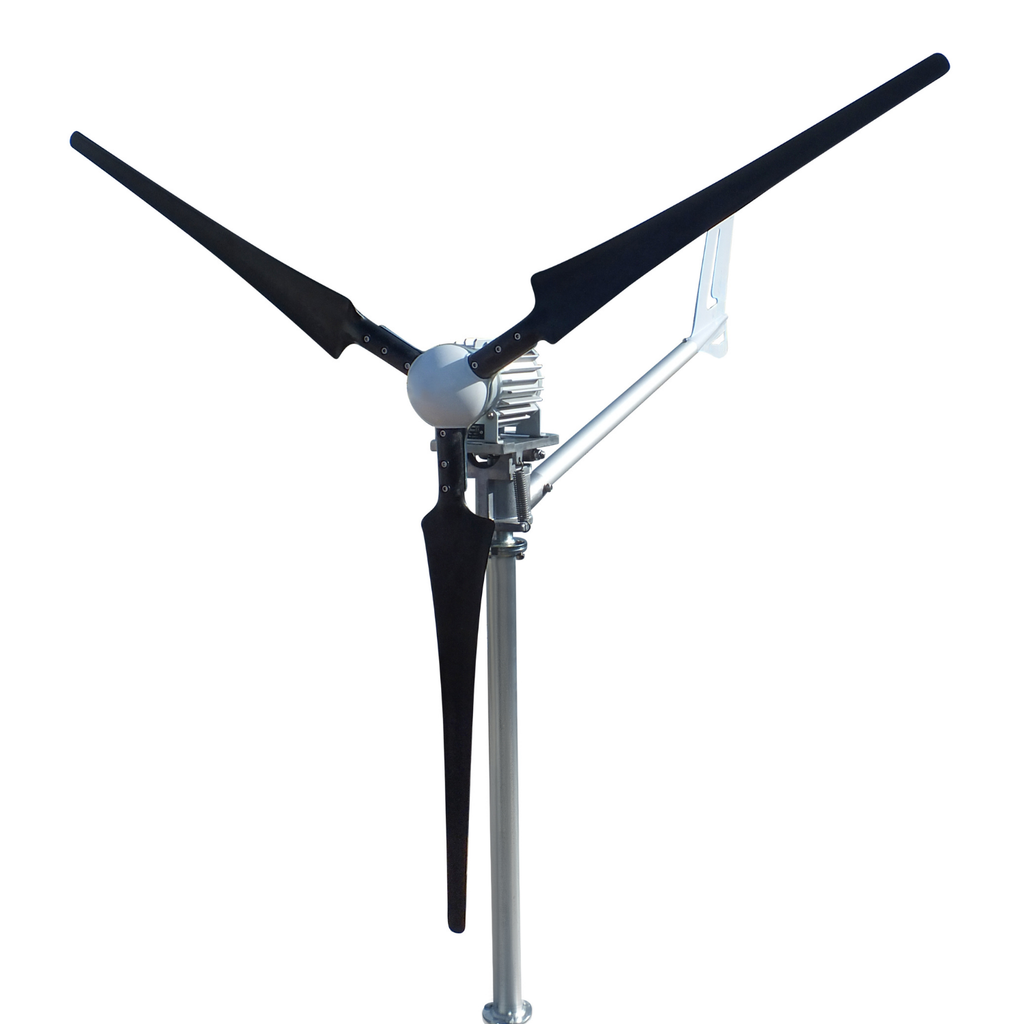

1500W 24V/48V WindSafe Wind Turbine
| Rated Power 1,500W | Storm Protection Automatic | Auto-Tilt Speed 14 m/s | Voltage 24V / 48V |
The WindSafe 1500 is built for long-term professional use in unattended conditions. Its rotor sits on a movable platform that automatically raises the entire structure 90 degrees in gusts or strong wind, angling the blades away from the wind to reduce frontal load. This mechanical protection system keeps the turbine running reliably without manual intervention across low, middle, and high wind sites.
Full Specifications
| Electrical | |
| Rated Power | 1,500W |
| Maximum Power | 1,600W |
| Current Output | 24V=60A · 48V=30A |
| Wind Performance & Protection | |
| Initial (Cut-In) Wind Speed | 3 m/s |
| Maximum Wind Speed | 13–14 m/s |
| Automatic Storm Tilt | 14 m/s (rotor tilts) |
| Blade Specifications | |
| Blade Material | Carbon |
| Blade Weight | 770g |
| Blade Length / Rotor Diameter | 107 cm / 220 cm |
| Noise Level | 40 dB |
| Construction | |
| Body Material | Aluminum Casting |
| Package Weight | 30 kg total |
| System Requirements | |
| Compatible Battery Bank | 4,800W – 9,600W |
What's in the Box
- WindSafe wind turbine generator ×1
- Carbon rotor blades ×3
- Nose cone ×1

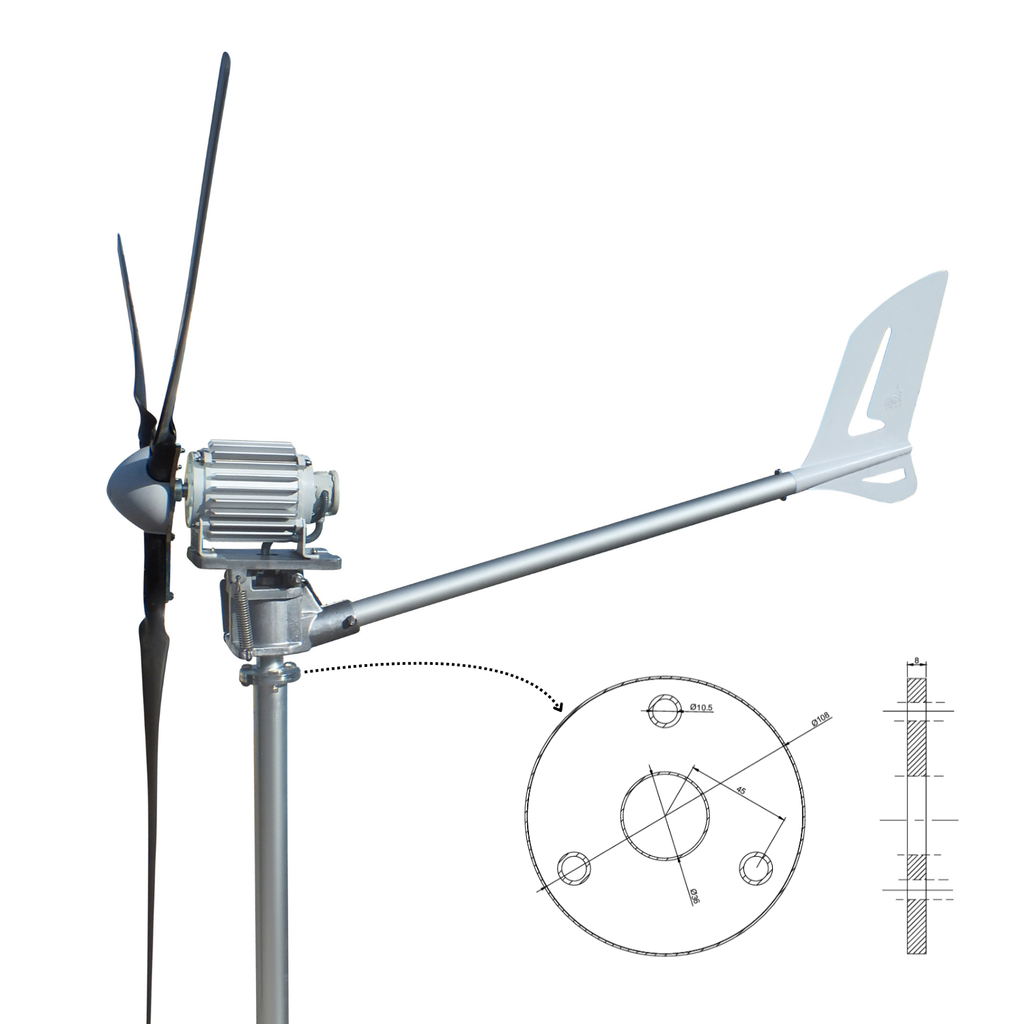

- Mounting flange ×1
- Tail / tail pipe ×1
- Manual book ×1
Mast tower and charge controller sold separately — WindSafe models require a tower adapter (not included with standard i-series towers). Backed by a 2-year manufacturer's warranty.
