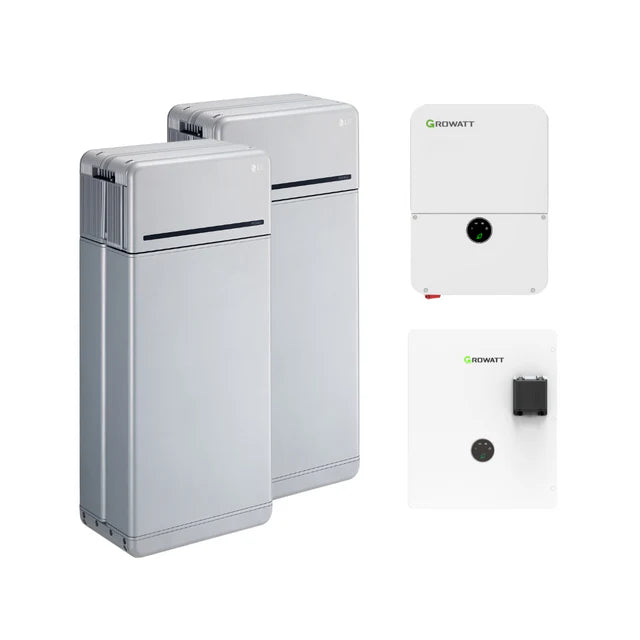

LG RESU 16H Prime 16 kWh High-Voltage Battery + Growatt Inverter Bundle
This professional-grade energy storage bundle pairs LG's flagship 16kWh high-voltage battery with Growatt's inverters. It’s one of the best options for homeowners seeking maximum solar harvest efficiency with options for either optimized self-consumption or complete backup power protection.
- Flexible Configuration Options
- High-Voltage Efficiency
- Future-Ready Scalability
About the Product

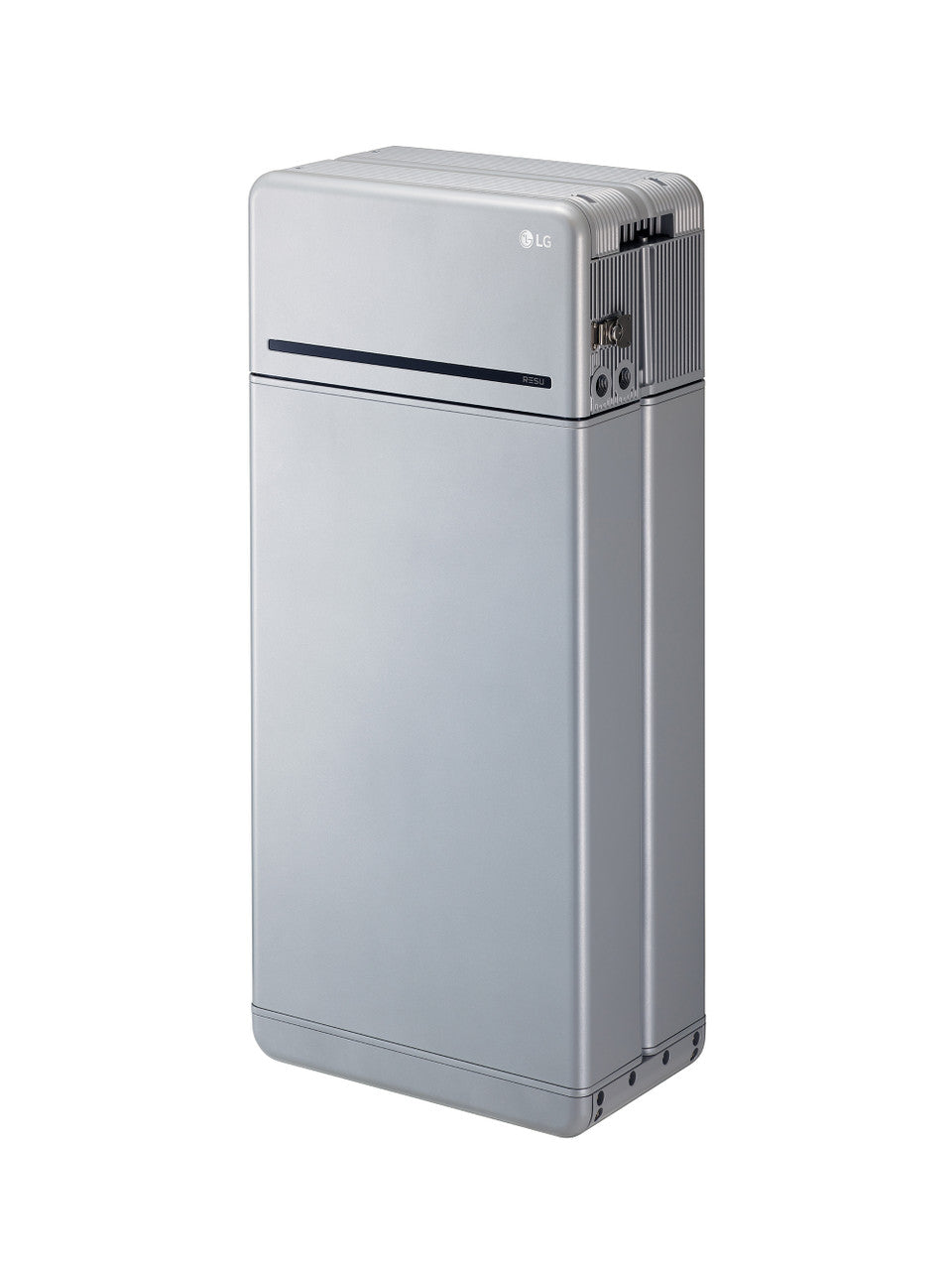

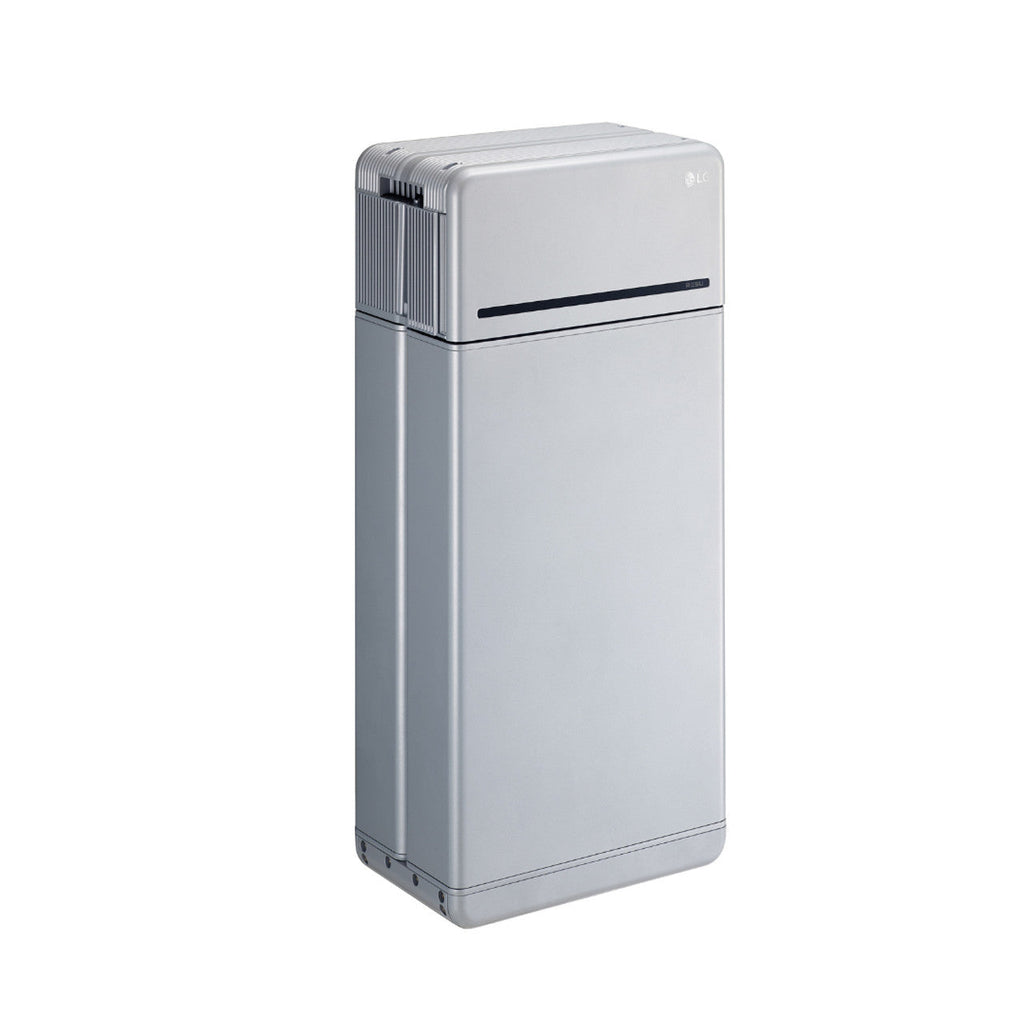

The LG 16H Prime 16kWh high-voltage battery bundle with Growatt inverter delivers tier-one brand reliability. The LG 16H Prime battery features advanced lithium-ion chemistry with intelligent battery management, providing 16kWh of usable capacity. It operates at 400V, enabling improved charge efficiency and conversion performance compared to lower-voltage systems in similar applications.

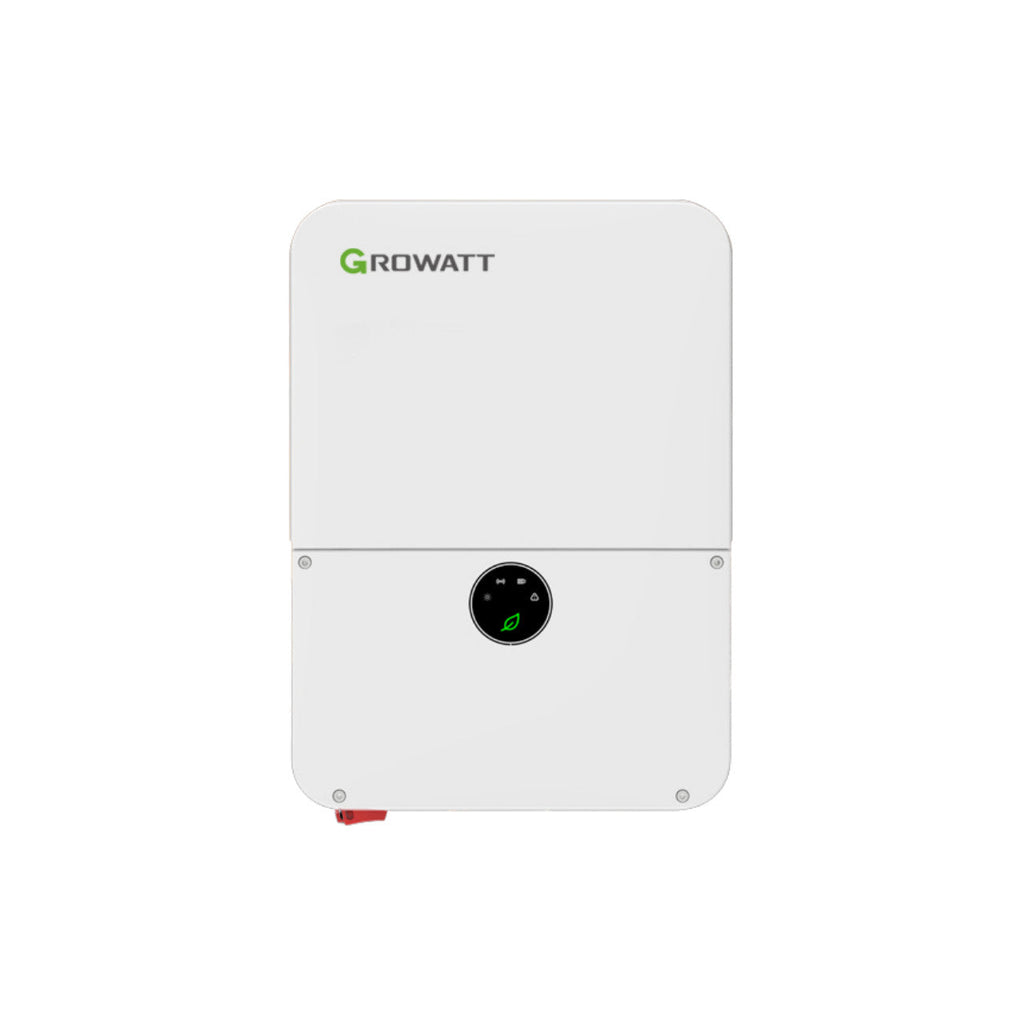

Growatt's inverters feature multiple independent MPP trackers that optimize solar energy harvest from complex roof layouts. The modular architecture supports parallel expansion to 32kWh total capacity, which supports long-term scalability and compatibility with future expansion.
You can choose between two options, with each delivering professional-grade performance:
This package provides optimized self-consumption and dynamic export control for homeowners focused on maximizing utility cost savings through intelligent time-of-use management.
The system provides intelligent energy management through time-of-use optimization, automatically charging the battery during off-peak hours and discharging when utility rates peak to reduce grid consumption during expensive periods. Dynamic export limiting ensures compliance with interconnection agreements by intelligently throttling grid feed-in according to utility restrictions.
For growing energy needs, the system supports future expansion. You can add a second LG 16H Prime battery to reach 32kWh total capacity without replacing the inverter or reconfiguring the system.

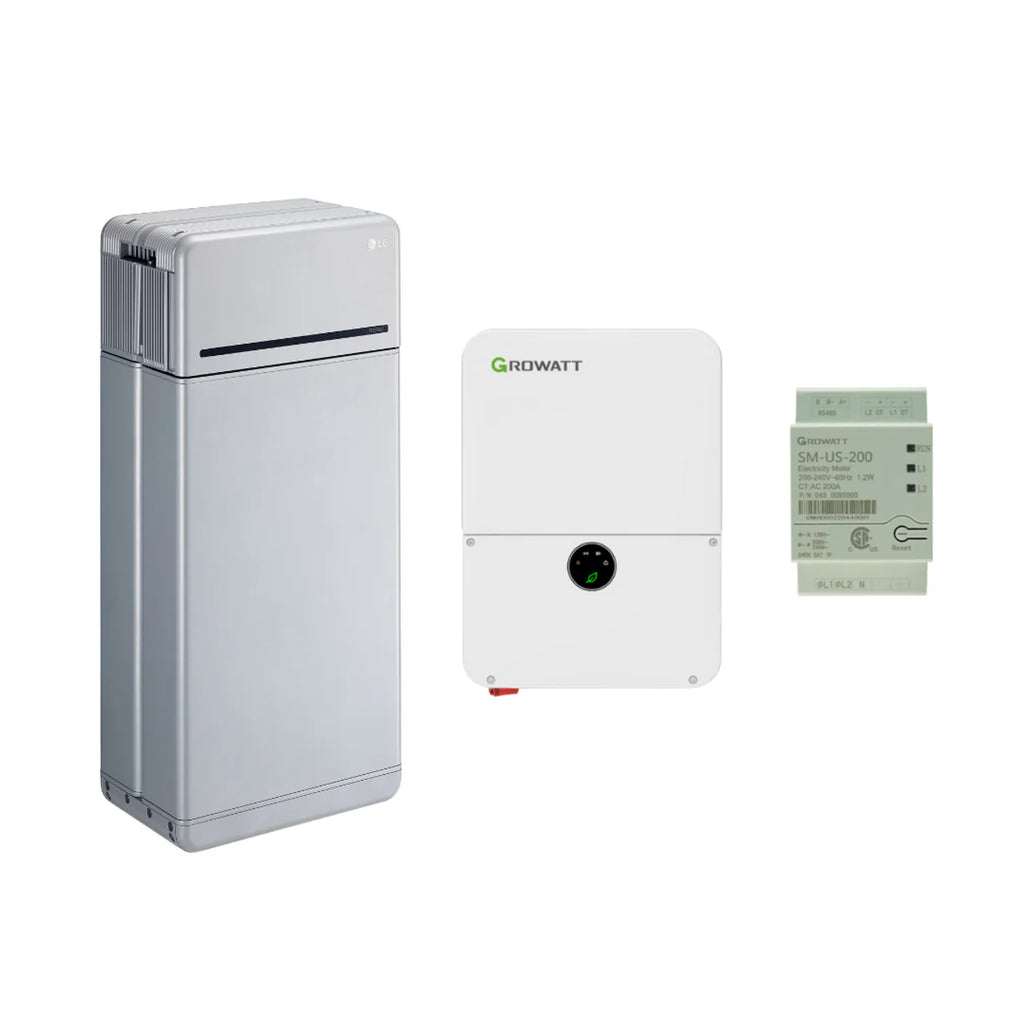

This configuration includes the following professional-grade components:
- LG 16H Prime Battery | 16kWh | 400V | High Voltage (2 pc. max)
- Growatt MIN 7600TL-XH-US Grid-Tie Inverter
- Growatt SM-US-200 Smart Meter
Note: This configuration is designed for energy management and does not provide backup power during grid outages. The system shuts down when the grid goes offline.
Growatt 11.4kW whole-home backup package includes generator integration terminals that provide direct connection points for portable or standby generators. This enables extended or continuous off-grid runtime when paired with a properly sized generator.
Unlike basic backup systems that only protect selected critical loads, this solution delivers whole-home islanding capability, powering all household circuits during grid failures. For properties requiring additional capacity, parallel inverter expansion allows you to add a second unit, scaling the system to 22.8kW AC output and supporting up to 64kWh of LG battery storage.
This advanced backup package includes the following components:
- LG 16H Prime Battery | 16kWh | 400V | High Voltage (2 pc. max)
- Growatt MIN 11400TL-XH-US Inverter
- Growatt SYN 200-XH-US Automatic Transfer Switch
Note: The automatic transfer switch provides seamless backup functionality during grid outages. For extended off-grid operation beyond battery capacity, connect a compatible portable or standby generator to maintain continuous power.
