Jackery Whole-Home Backup Kit 5000 Plus (20kWh)

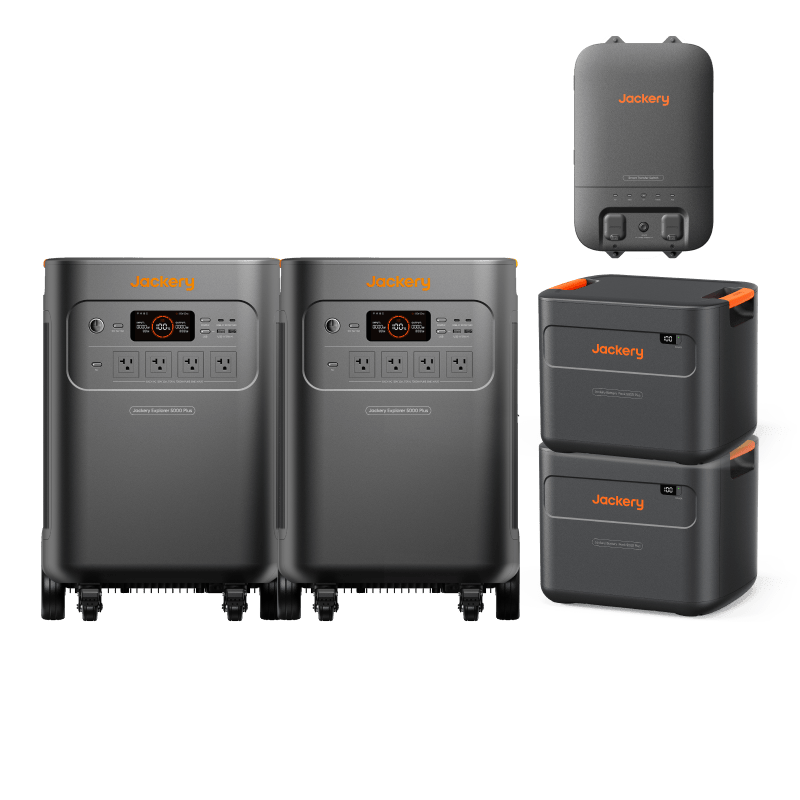

Jackery's flagship whole-home configuration: two Explorer 5000 Plus power stations, each expanded with a Battery Pack 5000 Plus, plus a Smart Transfer Switch to route power automatically to your essential circuits — 20,160Wh of usable capacity built for multi-day outages.
| Total Capacity | AC Output | # of Units Included | Warranty |
|---|---|---|---|
| ~20,160Wh (4× 5,040Wh: 2 units + 2 battery packs) | 7,200W (14,400W surge) | 2× Explorer 5000 Plus + 2× Battery Pack 5000 Plus + 1× Smart Transfer Switch | 5 Years (Jackery.com exclusive) |
No More Spoiled Food or Wet Clothes
Up to 30 Days of Essentials
Scalable from 5–60kWh with 7,200–14,400W output, this whole-home system keeps refrigeration, HVAC, and multiple appliances running for up to 30 days through hurricanes, storms, and extended blackouts.
Your Fridge Stays Cold, Your Zoom Call Stays On

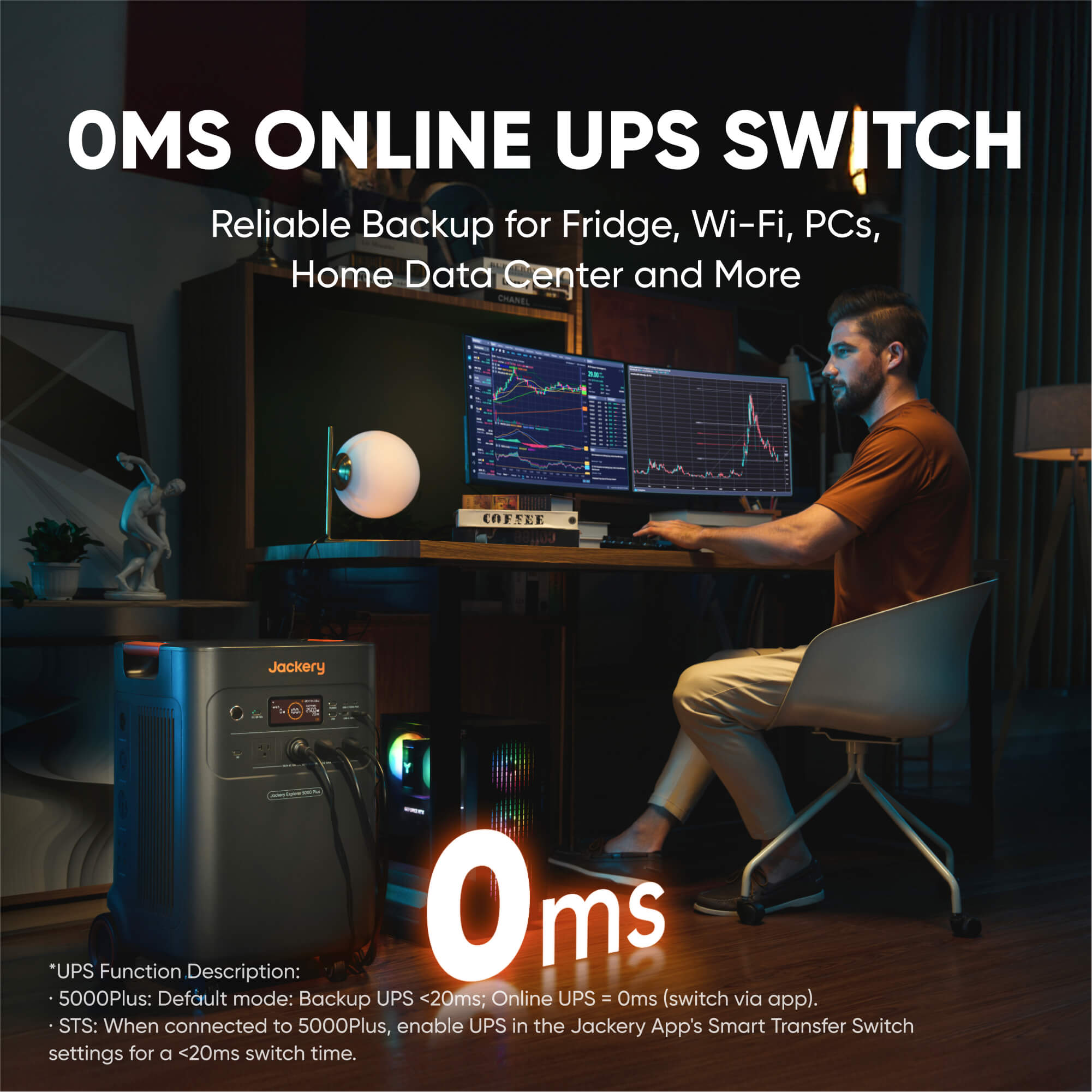

0ms Power Transition
0ms online-mode switching keeps Wi-Fi, NAS drives, and PCs from ever blinking — your calls, uploads, and work stay uninterrupted through a grid failure.
Always Power Your Essential Rooms
Included Smart Transfer Switch
The included Smart Transfer Switch delivers uninterrupted power exactly where it matters most, switching circuits automatically the instant the grid drops. Learn how to install it >
From Indoors to Outdoors
Dual Voltage Flexibility
120V/240V dual voltage output — including a NEMA 14-50R port — supports more loads and more scenarios, from major appliances to EV charging.
Fully Charged in 1.7 Hours
5 Ways to Charge

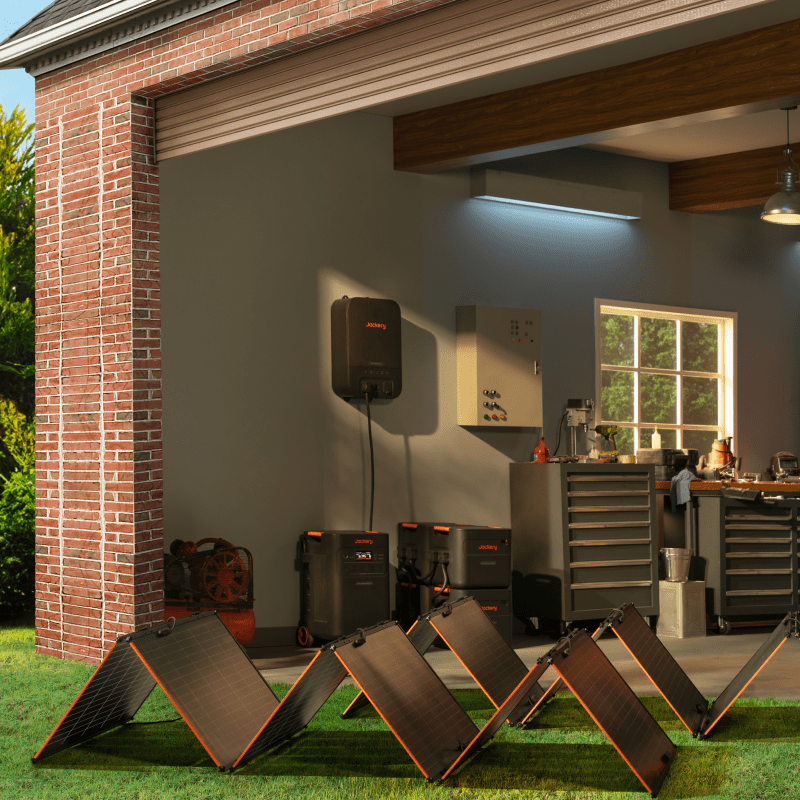

Up to 4,000W of solar input, AC wall charging, hybrid mode, high-voltage PV, and Smart Transfer Switch charging mean you're never left waiting on power.

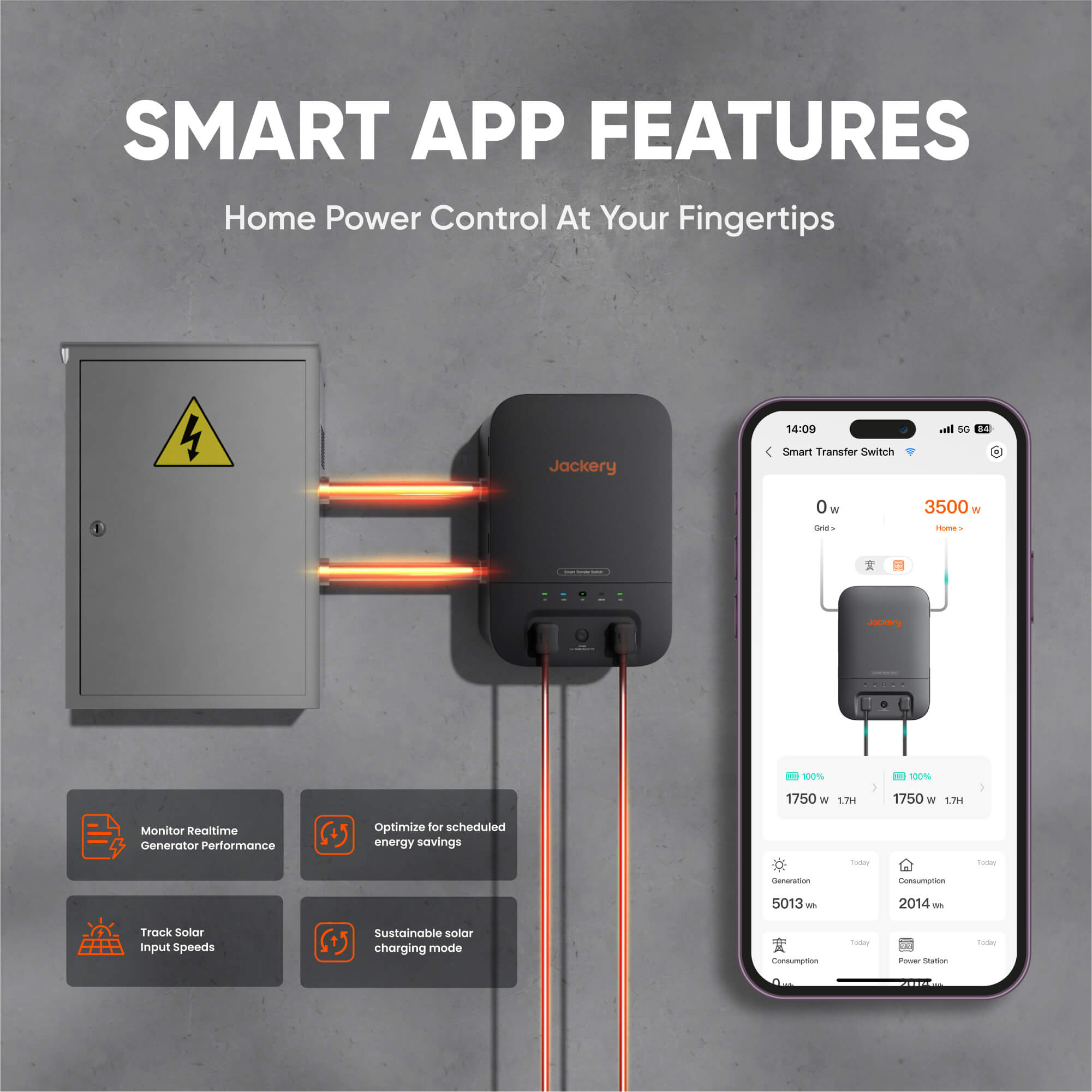

Smart App Control
Monitor From Anywhere
Track real-time performance and control your whole-home system remotely through the Jackery Smart App.
ChargeShield™ 2.0
The Safest Power Yet
Ceramic cells tested to 302°F, surge protection to 2,000V, and UL-certified safeguards protect your home and family through every charge cycle.
Comfort Without Compromise

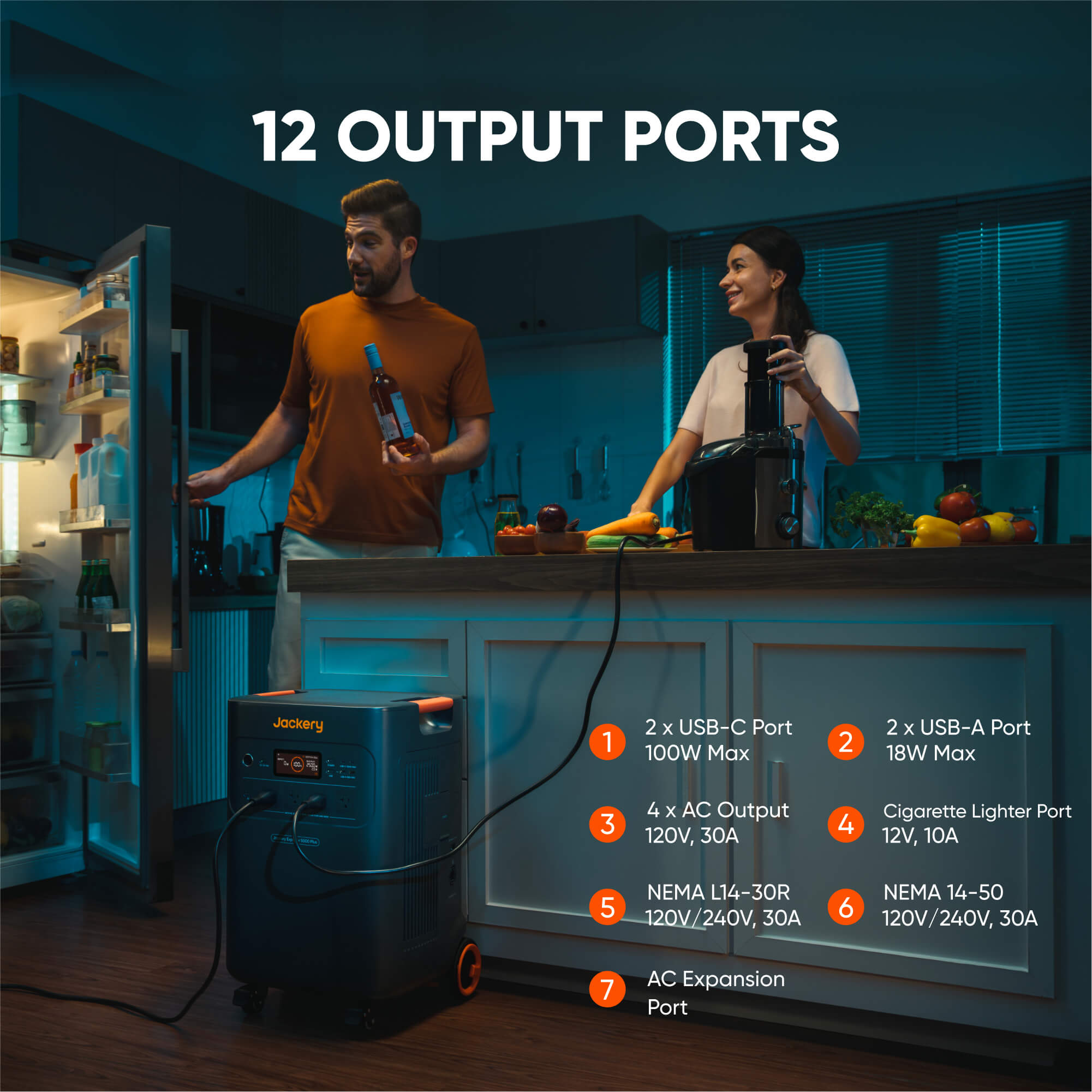

12 Output Ports
12 total output ports, including a NEMA 14-50R port, let you power multiple high-draw devices at once — indoors and outdoors.
| Battery (per unit/pack) | |
| Capacity | 5,040Wh (45Ah / 112V DC) each — 4 total in this kit |
| Chemistry | LiFePO4 with ChargeShield™ 2.0 |

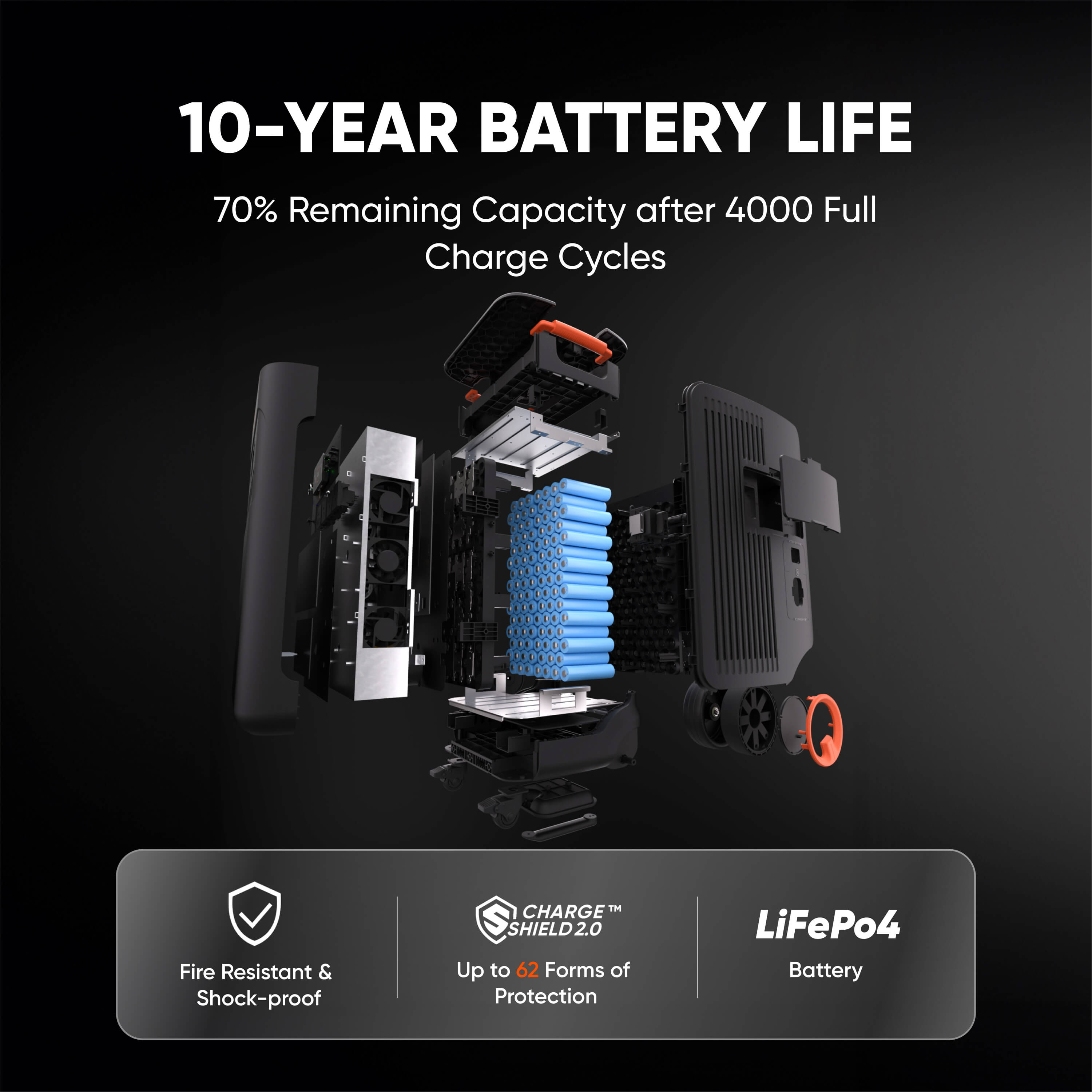

| Cycle Life | 4,000 cycles to 70%+ capacity |
| Weight | ~134.5 lbs (61 kg) per unit/pack |
| Dimensions | 16.5 × 15.5 × 25 in (41.8 × 39.5 × 63.5 cm) each |
| Power | |
| AC Output | 7,200W continuous, 14,400W surge |
| UPS Response | 0ms online mode, <20ms backup mode |
| AC Charge Time | ~3.5 hours per unit |
| Solar Charge Time | 6.5–8.5 hours (solar panels sold separately) |
| Warranty | 5 years, exclusive to Jackery.com purchases |

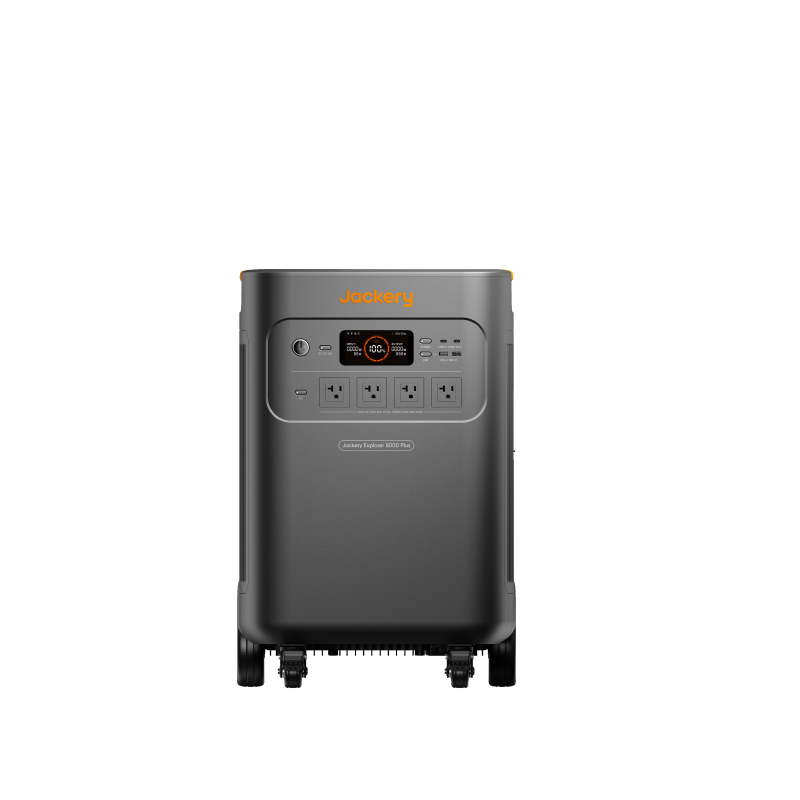

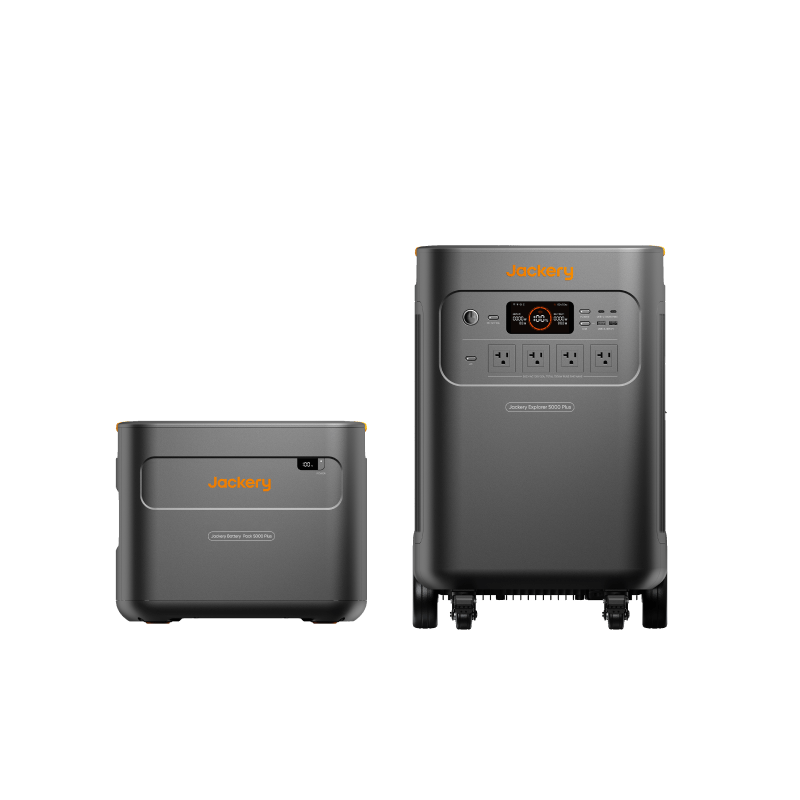

- 2× Jackery Explorer 5000 Plus power stations
- 2× Battery Pack 5000 Plus (expansion units)
- 1× Smart Transfer Switch
- 2× AC Charging Cables
- 2× MC4 Wrenches
- 1× Expansion Cable
Read more: Jackery Solar Generator 5000 Plus platform overview >
| Variant | What's Included | Key Differentiator | Price |
|---|---|---|---|
| Whole-Home Backup Kit 5000 Plus (20kWh) | 2× Explorer 5000 Plus, 2× Battery Pack 5000 Plus, 1× Smart Transfer Switch, 2× AC Cables, 2× MC4 Wrenches, 1× Expansion Cable | Full 20,160Wh whole-home system with included Smart Transfer Switch | $13,489 |
| Explorer 5000 Plus + SolarSaga 500 X x 2 + Smart Transfer Switch | 1× Explorer 5000 Plus unit, 2× SolarSaga 500X panels, 1× Smart Transfer Switch | Single-unit entry configuration with solar charging and transfer switch | $6,089 |
| Explorer 5000 Plus | 1× Explorer 5000 Plus unit only | Single standalone unit, no accessories — lowest entry price | $3,499 |
