Jackery Solar Generator 5000 Plus — Explorer 5000 Plus + SolarSaga Kit
The complete whole-home solar backup system: the Explorer 5000 Plus power station paired with SolarSaga 500X bifacial solar panels, scalable to a 20kWh whole-home configuration with Smart Transfer Switch and Battery Pack expansion.
| Capacity | AC Output | Solar Recharge | Warranty |
|---|---|---|---|
| 5040Wh (expandable to 60kWh) | 7200W rated / 14,400W surge | ~2 hrs @ 4000W input | 5 Years |

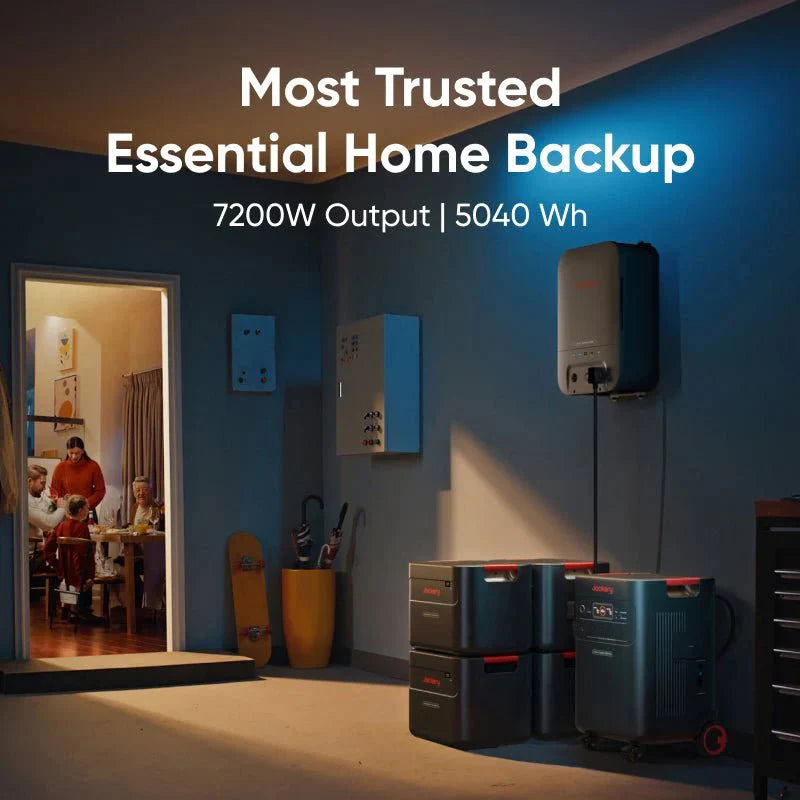

Handles Even the Big Appliances
Whole-Home Capable
Run major home appliances with 7200W of rated power (14,400W surge). Supports both 120V and 240V output, including a 5-ton AC unit or a household water heater.
Backup That Lasts for 13 Days
Expandable Capacity
5040Wh base capacity, expandable up to 60kWh — enough to keep a home running through an extended outage, not just overnight.

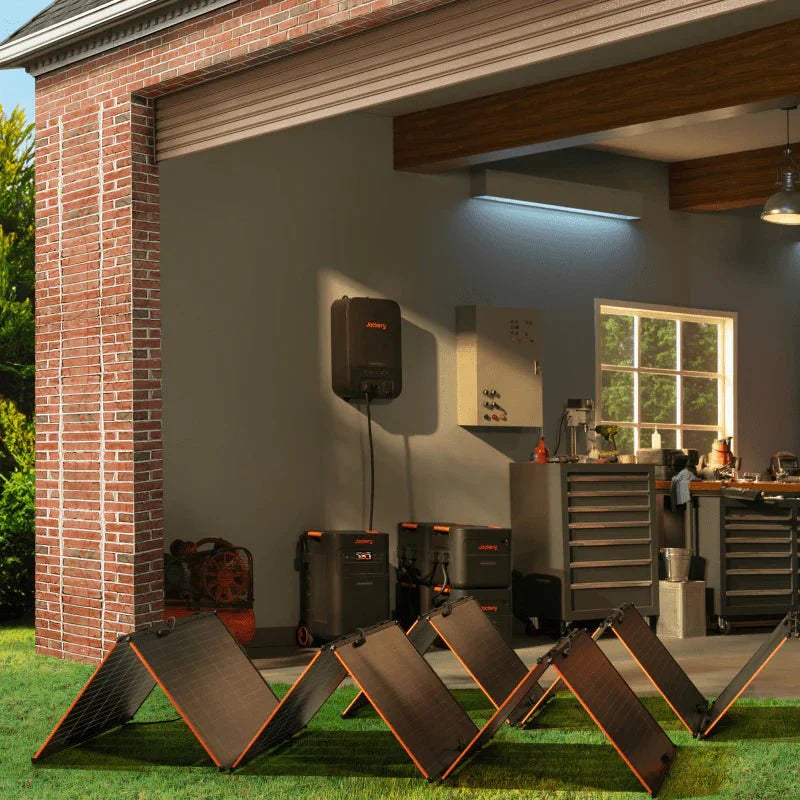

More Power From the Sun
SolarSaga 500X Included

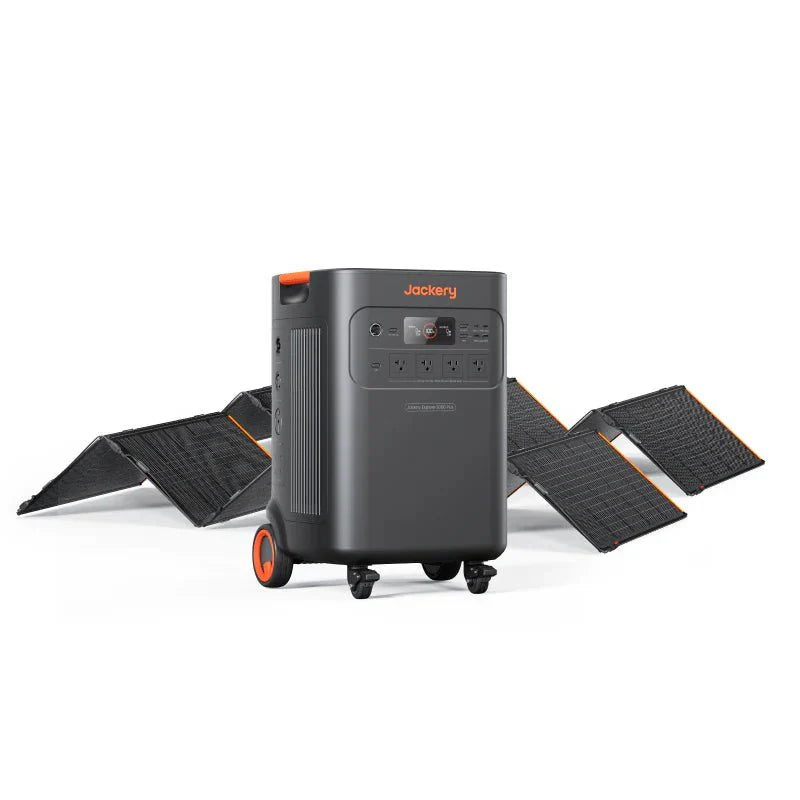

Compatible with high- and low-voltage solar panels, recharging in about 2 hours with up to 4000W of input. Included SolarSaga 500X bifacial panels deliver 500W (STC) / 545W (bifacial boost) each, IP68-rated and built for home or RV use.

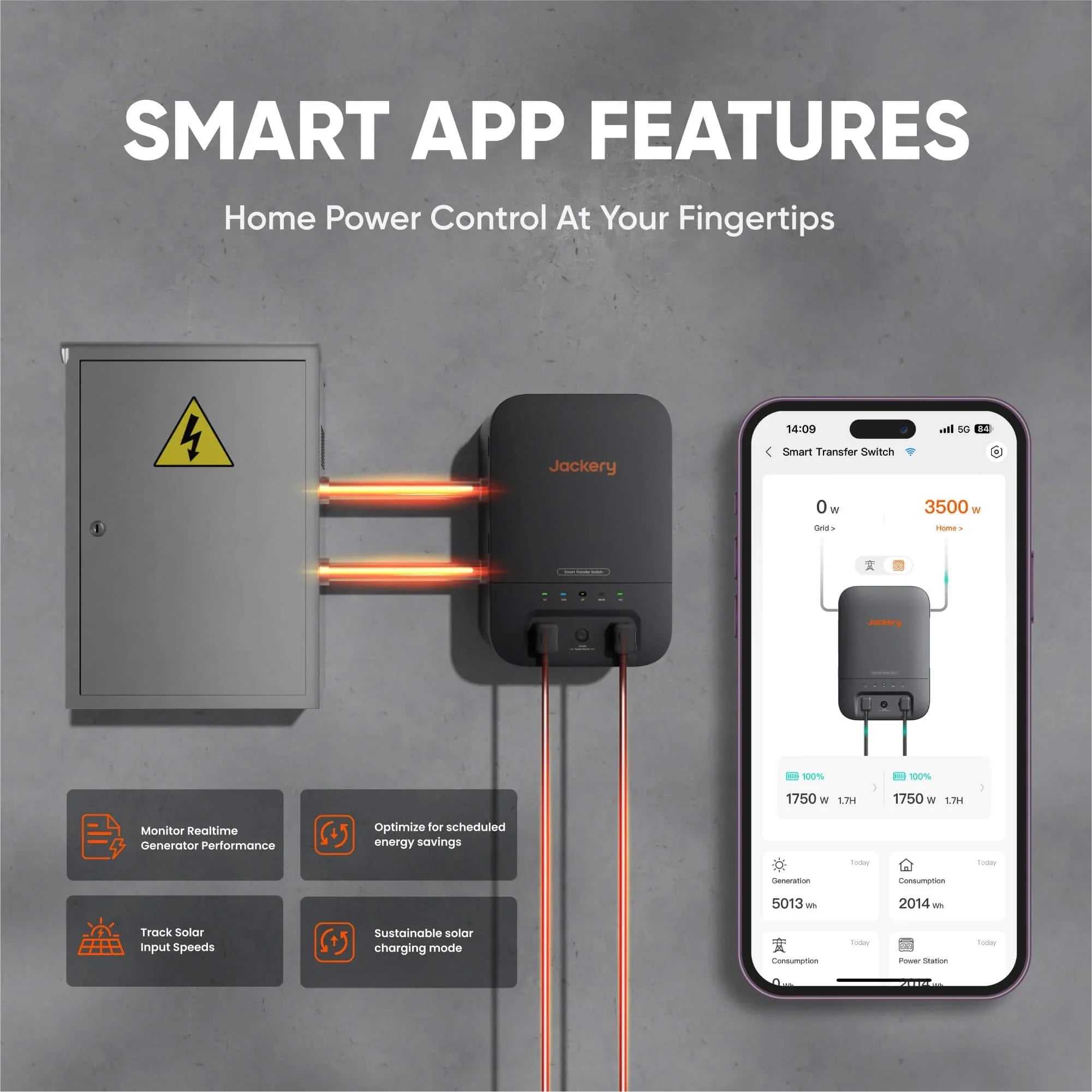

Protect Your Essential Circuits Smartly
Smart Transfer Switch
Pair with the Jackery 60A Smart Transfer Switch (included in Complete and Flagship kits) to power up to 12 circuits at 120V or 6 circuits at 240V, with Wi-Fi/Bluetooth monitoring.
Quieter Than Gas Generators
~30dB Operation
Runs at roughly 30dB — about as quiet as a library — so it can operate indoors or overnight without disturbing the household.
Invest in Saving Up to $11,800
Smart Charging Schedules
Charge during off-peak hours from the included solar array and draw on stored power when utility rates are highest.

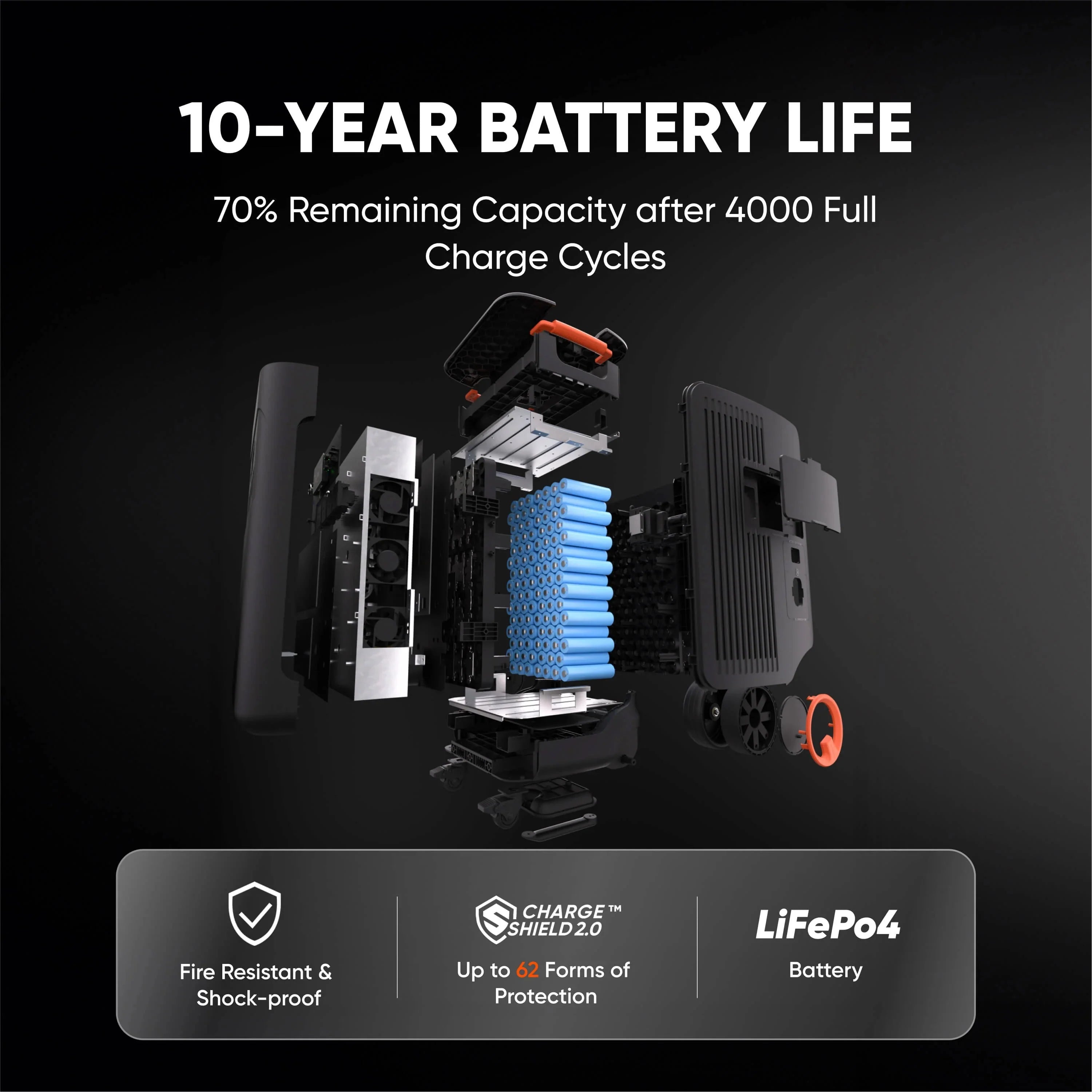

11 Years of Reliable Power
ChargeShield 2.0
Less than $1 a day for up to 11 years of peace of mind. ChargeShield™ 2.0 combines 62 BMS protection algorithms, dual cell protection, and AI variable charging speed on LiFePO₄ cells rated to 4,000 cycles — tested to 302°F with strong cold performance to -4°F.
Outages Won't Interrupt a Thing
True 0ms UPS
True 0ms online UPS switching (under 20ms in standard UPS mode) keeps computers, appliances, and critical devices running without interruption.
Compact for Its Capacity
Built to Move, Plug In and Go

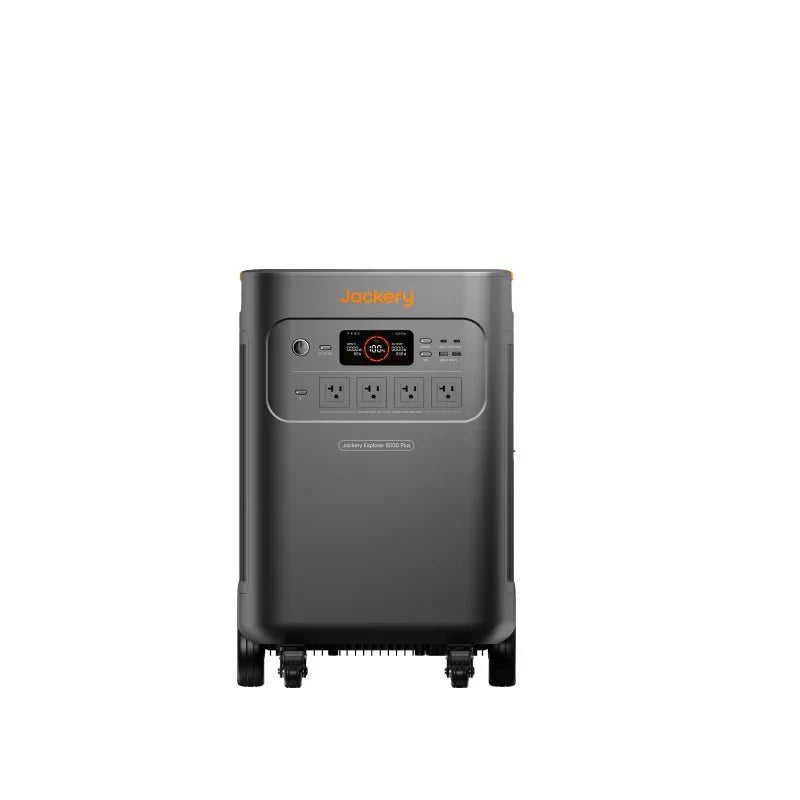

At 134.5 lbs, the Explorer 5000 Plus packs a massive 5kWh of capacity into a body sized like a typical 3kWh unit — one-button start and plug-and-play setup make it easy to move from garage to living room to patio.
| Power Station — Explorer 5000 Plus | |
| Capacity | 45Ah / 112V DC (5040Wh) |
| Cell Chemistry / Cycle Life | LiFePO4, 4,000 cycles to 70%+ |
| Weight / Dimensions | ~134.5 lbs (61 kg); 16.5 x 15.5 x 25 in |
| AC Output | 7200W Max / 14,400W Surge |

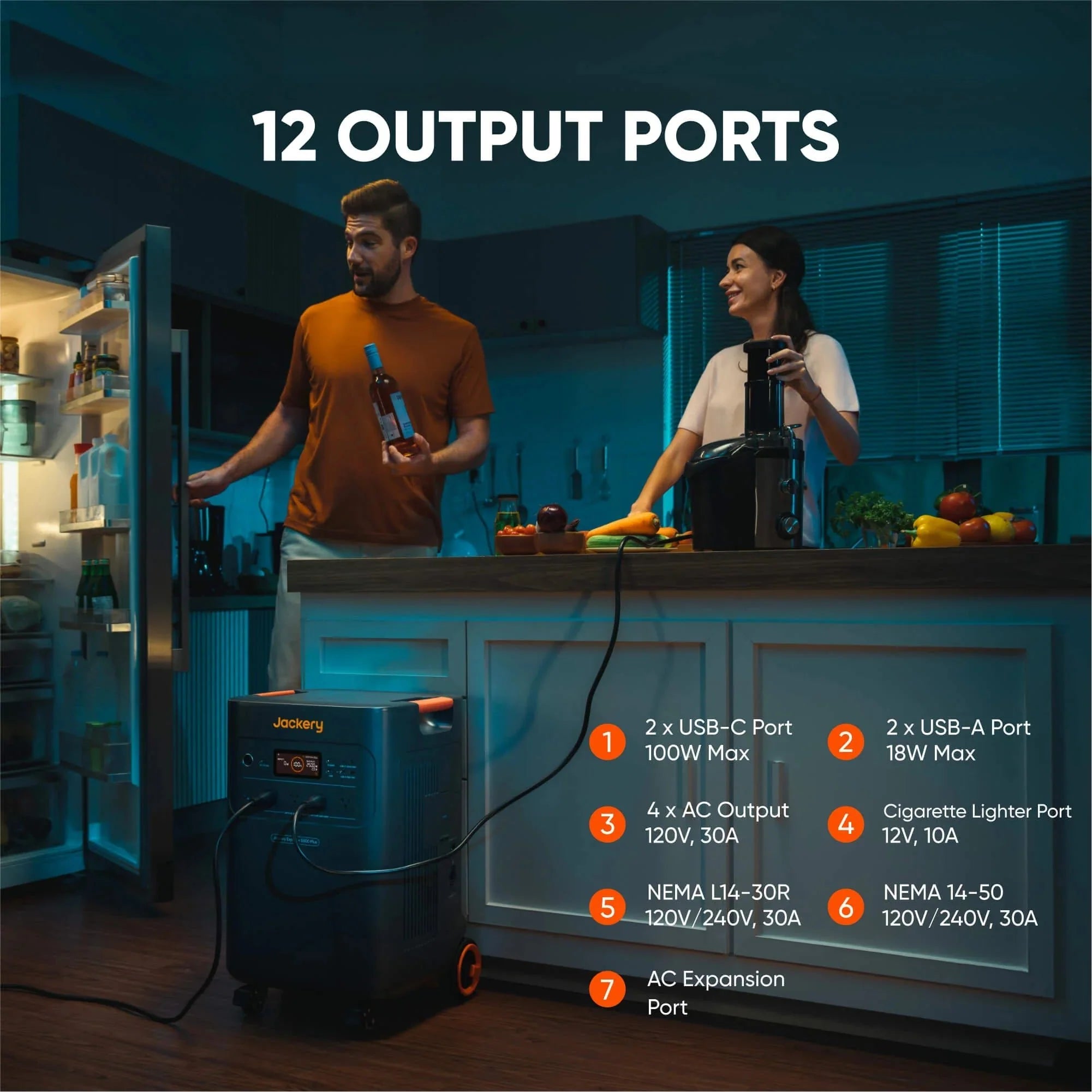

| AC Ports | 4x 120V 20A 3600W Max + 1x NEMA L14-30R/14-50 120V/240V 30A 7200W Max |
| USB Ports | 2x USB-C 100W Max, 2x USB-A 18W Max |
| AC Input Charging | 120V 15A Max (3.5 hr full charge) |
| Solar Charging | 6.5-8.5 hrs; High-PV 135-450V/15A Max; Low-PV 16-60V/10.5A Max |
| UPS Switching | <20ms backup mode / 0ms online UPS |
| Charge / Discharge Temp | 32-113°F charge / 5-113°F discharge |
| App Connectivity | Wi-Fi / Bluetooth (via Smart Transfer Switch) |
| Warranty | 5 Years |
| Solar Panel — SolarSaga 500X | |
| Peak Power | 500W ±5% (STC), 545W ±5% (bifacial boost) |
| Weight / Waterproof Rating | 22.05 lbs ±2.2 lbs (10.5 kg); IP68 |
| Folded / Unfolded Size | 39.21 x 20.71 x 3.82 in / 98.15 x 39.21 x 11.57 in |
| Warranty | 5 Years |
1x Jackery Explorer 5000 Plus • 1x AC Charging Cable • 1x MC4 Wrench • 2x SolarSaga 500X Solar Panels • User Manual
Higher-tier kit variants add the Jackery 60A Smart Transfer Switch and Battery Pack 5000 Plus expansion units, scaling up to a dual-unit 20kWh Whole-Home Kit — see variant options above.
| Variant | What's Included | Key Differentiator | Price |
|---|---|---|---|
| Explorer 5000 Plus | Power station only | Base 5040Wh unit, no solar panels | $3,499 |
| Explorer 5000 Plus + SolarSaga 500X x2 | Power station + 2 SolarSaga 500X panels | Adds off-grid solar recharging | $5,159 |
| Explorer 5000 Plus + SolarSaga 500X x2 + Smart Transfer Switch | Power station + 2 panels + 60A Smart Transfer Switch | Enables whole-home circuit backup (up to 12 circuits) | $6,089 |
| Explorer 5000 Plus (10kWh) + SolarSaga 500X x2 + Smart Transfer Switch | Dual-unit 10kWh + 2 panels + Smart Transfer Switch | Doubles capacity to 10kWh for extended outages | $8,789 |
| Home Backup Kit 5000 Plus (20kWh) | Full whole-home kit, 20kWh configuration | Maximum capacity for whole-home coverage | $13,489 |
