FJD Trion T1 Hybrid Mobile & Terrestrial LiDAR Scanner
Price on request
Pricing depends on configuration, site and accessories. Request a quote for your project.
- 4 mm@ 10 m, terrestrial mode
- 120 mRange, mobile mode
- 640,000Points per second
- 3 × 48 MPPanoramic cameras
Before you buy
Priced by quote. OmniNova confirms the configuration (tripod, handheld, vehicle or airborne mounts), GNSS setup, software licensing and lead time with your quote.
RTK georeferencing needs a correction source (CORS network or base) or PPK.
Warranty terms are set by FJ Dynamics and confirmed with your quote.
Request a quote
Tell us about your site and we will confirm configuration, accessories, lead time and delivered pricing.
Request a quote Email our teamCall (210) 900-2018 · Mon–Fri, 9 AM–5 PM CT
- Free shippingIncluded in the price
- Talk to an expert(210) 900-2018 · Mon-Fri 9-5 CT
- Secure checkoutEncrypted payment by Shopify
- Manufacturer warrantyWarranty terms set by FJ Dynamics
Why Buy from Us
At OmniNova Home Systems, we believe buying premium home technology and lifestyle products should be simple, transparent, and backed by real customer support. We carefully screen our products and partner with reputable manufacturers to help ensure quality, reliability, and long-term value. Customers benefit from competitive pricing, free shipping on most items, responsive customer service, and access to white glove delivery and turnkey solutions on select products. We also offer an online price match program to help ensure you receive exceptional value while maintaining manufacturer-authorized pricing standards. Whether you're upgrading your home with smart technology, renewable energy solutions, security systems, simulators, drones, or advanced entertainment products, our mission is to provide a streamlined shopping experience with dependable support before and after your purchase.
Disclaimers
- Price match requests must comply with manufacturer Minimum Advertised Price (MAP) policies and may not apply to unauthorized sellers, clearance items, auctions, membership-only pricing, or pricing errors.
- Customer service response times are based on availability and may be limited during federal holidays, including but not limited to Christmas Day, Thanksgiving Day, and New Year’s Day.
- Free shipping applies to most products unless otherwise noted on the product page. Additional shipping charges may apply to oversized, freight, remote-area, or specialty items.
- White glove services and turnkey solutions are available only on qualifying products and in select service areas. Availability may vary by manufacturer, carrier, or installation requirements.
- Product screening and manufacturer evaluation do not constitute guarantees, warranties, or endorsements beyond those expressly provided by the product manufacturer.
FJ Dynamics Trion T1 · Hybrid mobile & terrestrial LiDAR
One scanner across the whole project
Move through large sites in Mobile Mode for complete coverage, then switch to Terrestrial Mode for millimeter-level accuracy where it counts. No second scanner required.
4 mm
@ 10 m, terrestrial mode
120 m
Range, mobile mode
640,000
Points per second
3 × 48 MP
Panoramic cameras

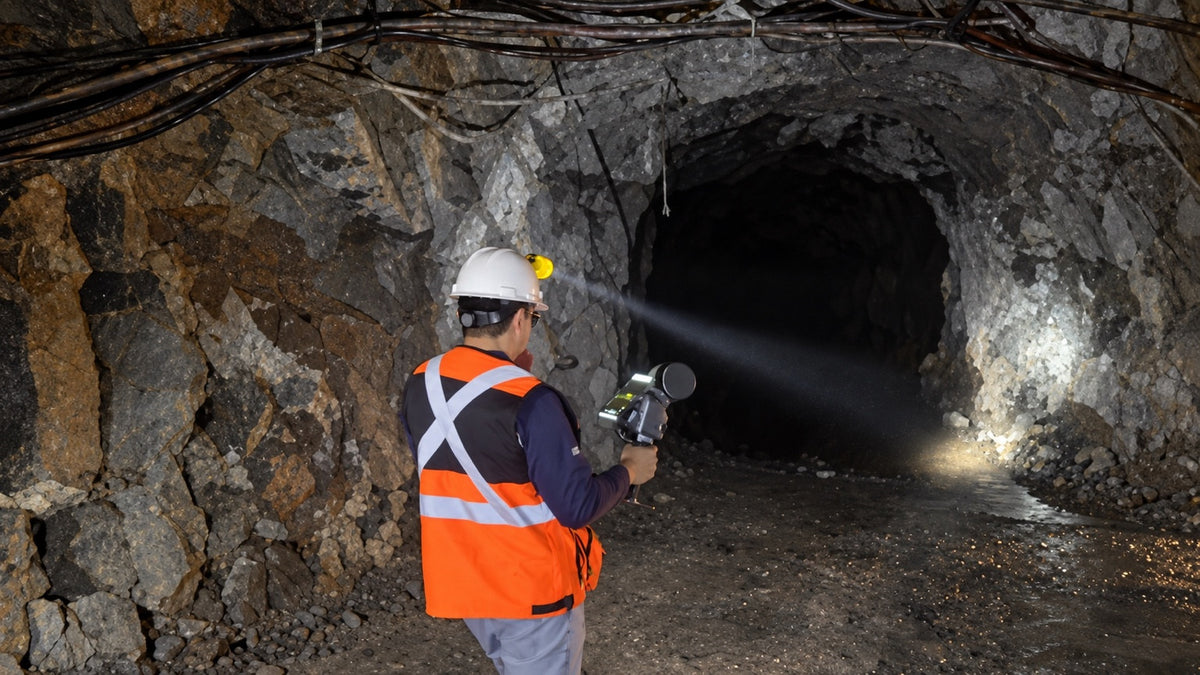

Mobile Mode
Cover more ground

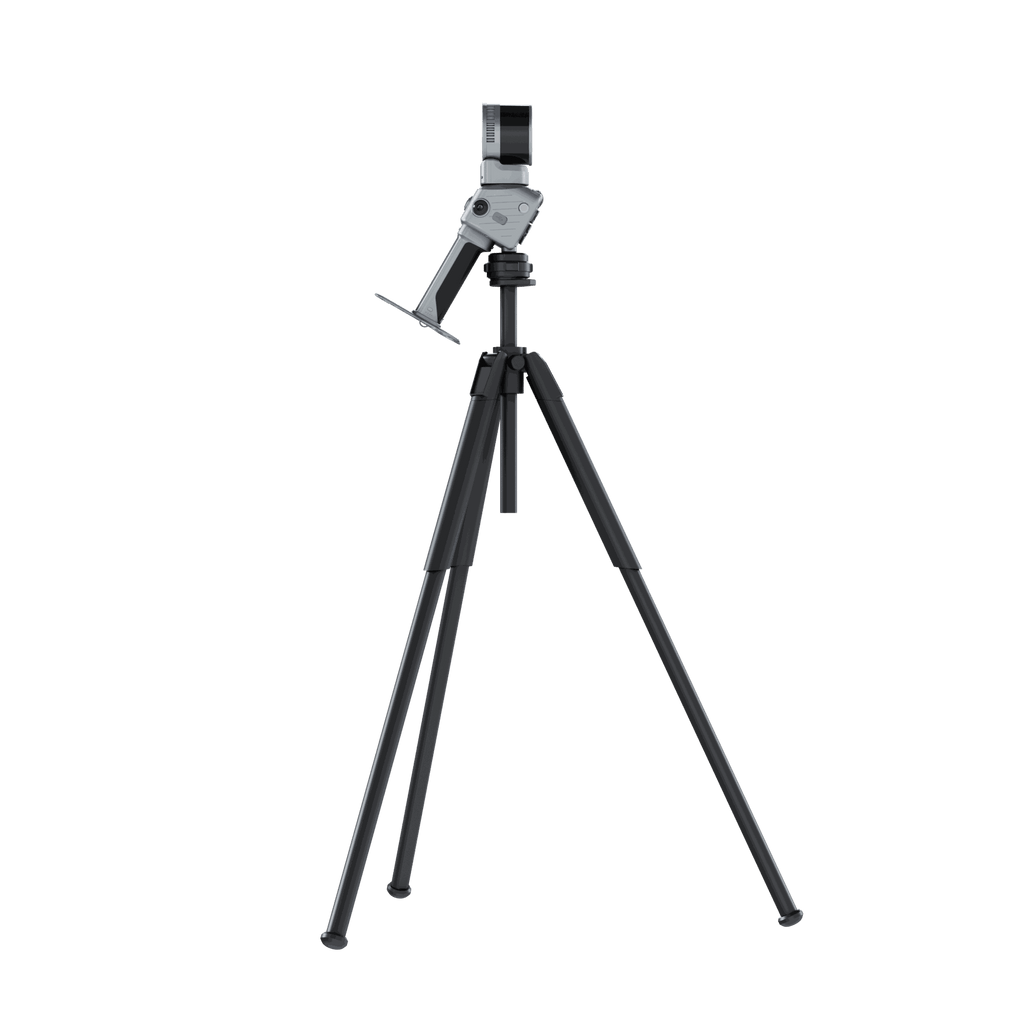

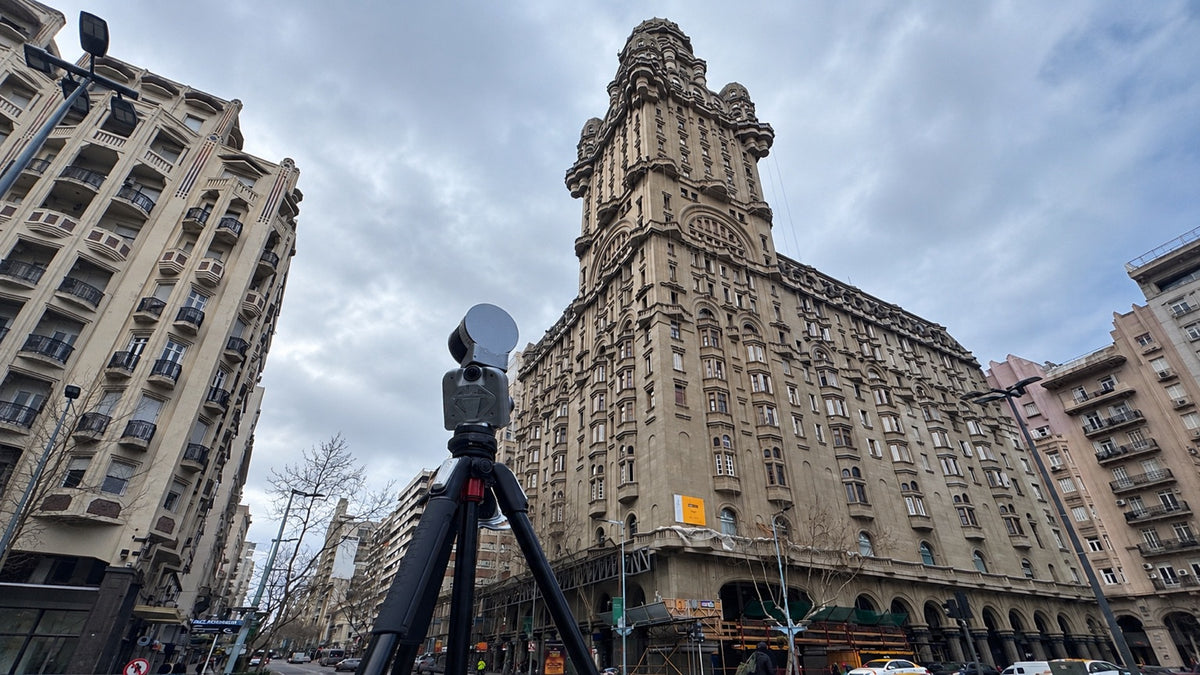

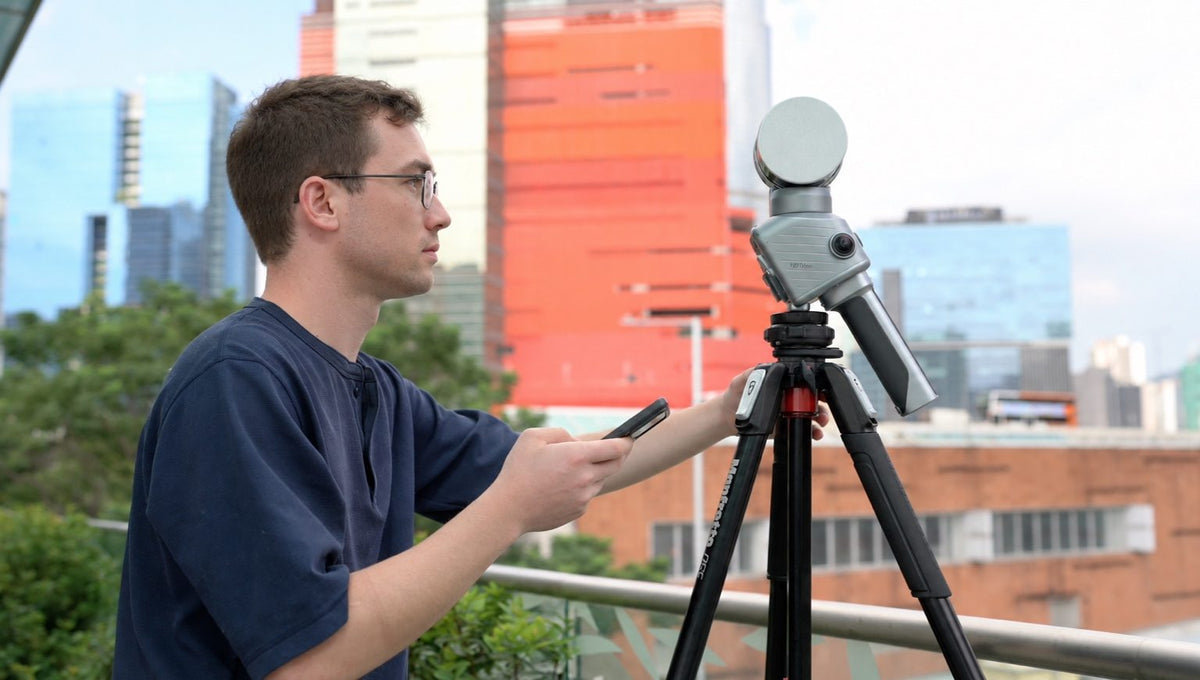

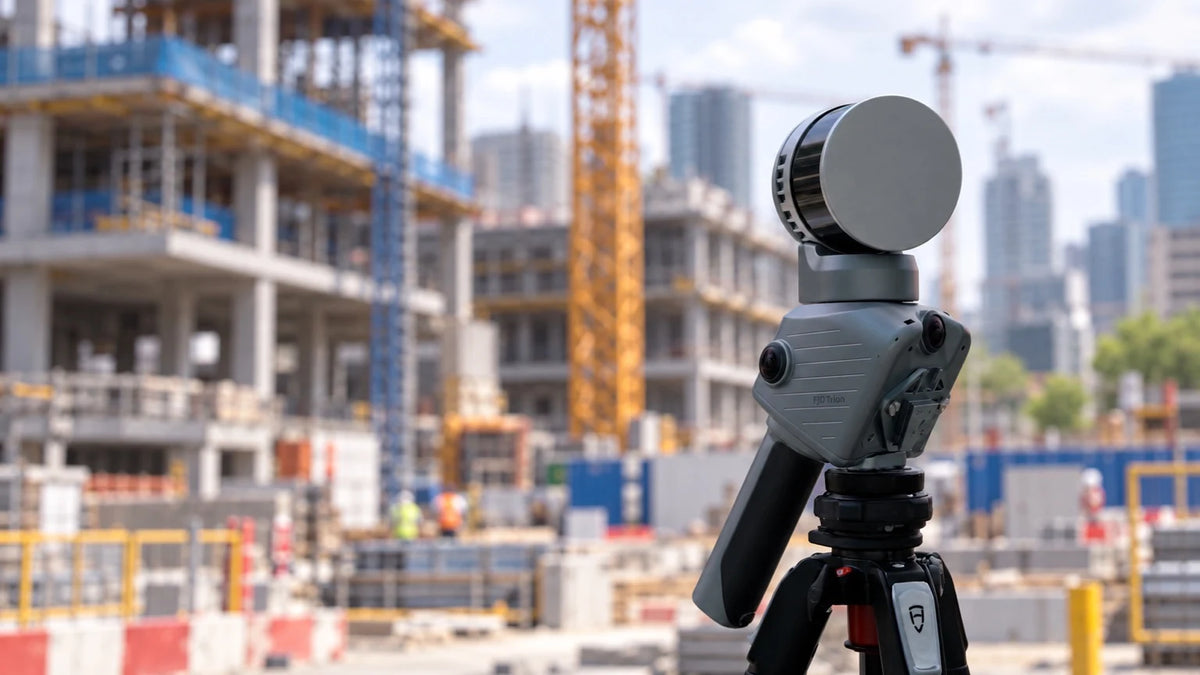

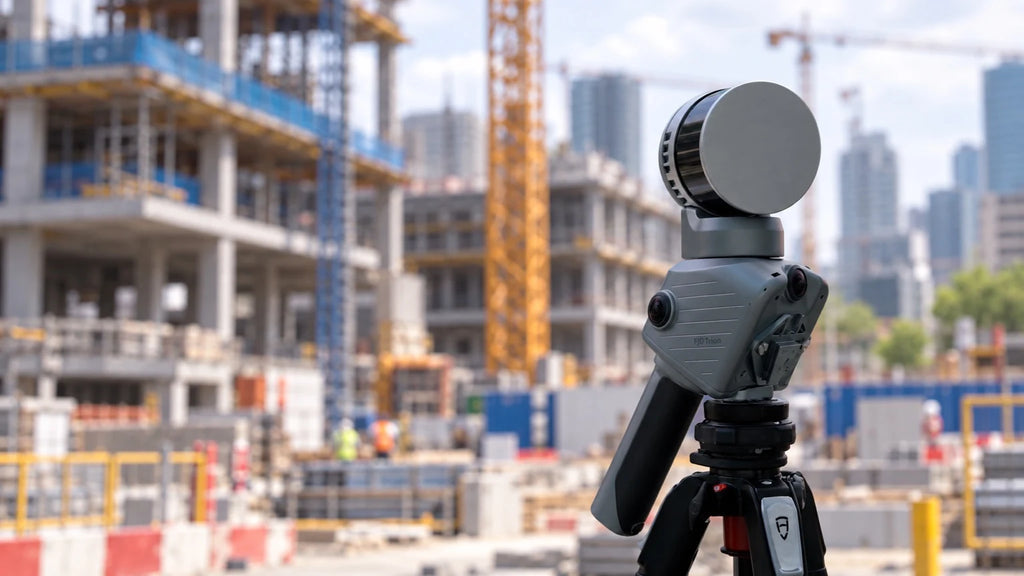

Terrestrial Mode
Millimeter detail where it matters
Three 48 MP cameras
See the site, not just the scan
Scan resumption
Keep large projects moving

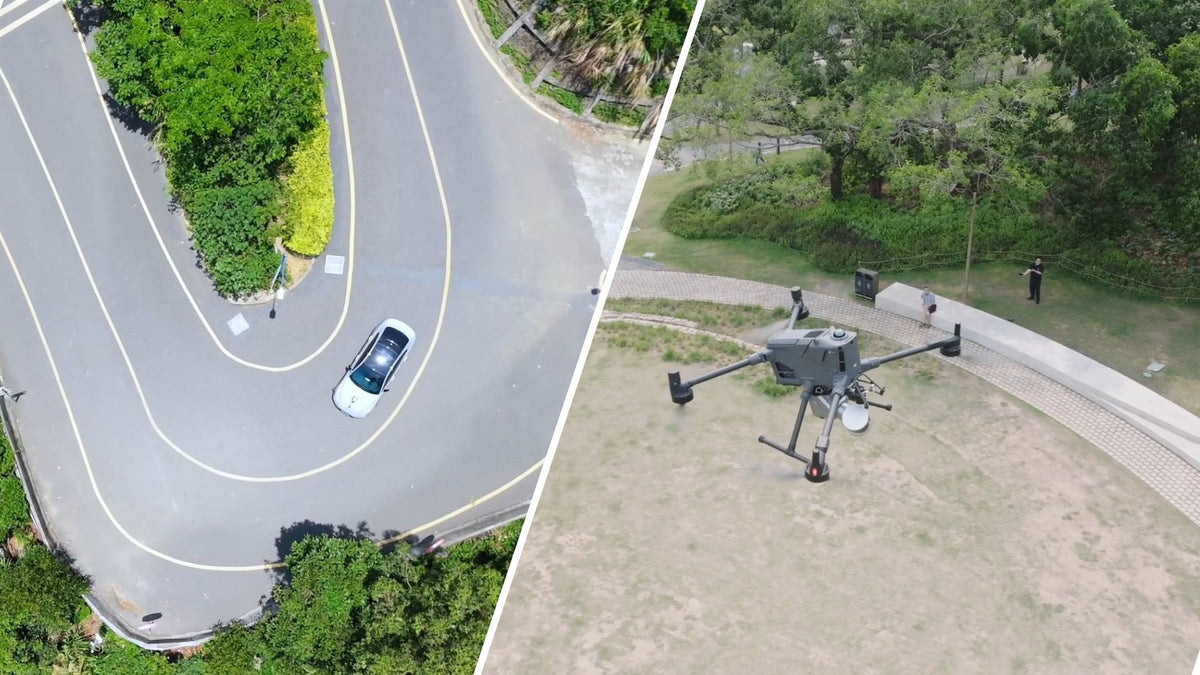

Mounting options
Configured for the site
| Point rate | 640,000 pts/s |
| Scanning range | 80 m @ 10% reflectivity; 120 m @ 80% reflectivity |
| Relative accuracy | Mobile: ≤ 1 cm; tripod: 4 mm @ 10 m, 8 mm @ 30 m |
| Range by mode | Mobile: 0.5–120 m; tripod: 0.5–60 m |
| Field of view | 360° × 270° |
| Laser | 905 nm, eye-safety Class 1 |
| Active cameras | Mobile: 1 × 1080p + 2 × 48 MP; tripod: 3 × 48 MP |
| Imaging unit | 48 MP, 360° × 235° FOV, f/2 |
| Vision unit | 1080p RGB, 80° × 47° FOV, f/2.2 |
| Constellations | BDS, GPS, GLONASS, Galileo, QZSS |
| RTK accuracy | H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS |
| PPK | Supported |
| Battery life | 3.5 h (dual handles) |
| Battery capacity | 43.2 Wh |
| Power supply | Handle battery + DC power |
| Power consumption | 24 W |
| Storage | 512 GB, expandable to 1 TB |
| Data export | Wi-Fi, USB Type-C |
| Weight | Main unit 1.645 kg; full setup 2.23 kg |
| Dimensions | 108 × 173 × 433 mm |
| Operating temperature | -20 to 50 °C |
| Ingress protection | IP54 |
| Manufacturer warranty | Warranty terms set by FJ Dynamics; confirmed with your quote |
Robotic mowers, line markers and LiDAR for pro grounds care.
Questions buyers ask
Frequently asked questions
What accuracy does each mode deliver?
Mobile Mode delivers relative accuracy of up to 1 cm. Terrestrial (tripod) Mode delivers 4 mm at 10 m and 8 mm at 30 m.
How long does a terrestrial station take?
From as little as 30 seconds up to 2 minutes, depending on the density you choose. FJD says the rated accuracy is the same at every density.
Can I combine mobile and tripod scans?
Yes. FJD says you can process mobile and terrestrial scans separately or fuse them into a single point cloud. Multi-sensor SLAM records the relationships between stations to make alignment more efficient.
Can large sites be scanned in stages?
Yes. Sessions run up to 1 hour, and you can return later, match a previously scanned area on site, and let the software combine the data without manual stitching.
What software processes T1 data?
FJD Trion Model for large-scale point cloud processing, mesh, 3DGS, CAD/BIM, cross-sections and forestry analysis, and FJD Trion Model Web for browser-based access, sharing and delivery. Software licensing is confirmed with your quote.
