FJD Trion N10 CORS System - GNSS Reference Station
Price on request
Pricing depends on configuration, site and accessories. Request a quote for your project.
- 1,408Receiver channels
- 0.8 cmRTK horizontal + 1 ppm
- 99.9%Platform availability
- >24 hBackup battery life
Before you buy
Priced by quote. OmniNova confirms the hardware set, FLBS platform access and any service fees, site design, installation and lead time with your quote.
Requires a permanent open-sky antenna mount, continuous power and an internet connection (4G SIM, Wi-Fi or Ethernet).
Warranty terms are set by FJ Dynamics and confirmed with your quote.
Request a quote
Tell us about your site and we will confirm configuration, accessories, lead time and delivered pricing.
Request a quote Email our teamCall (210) 900-2018 · Mon–Fri, 9 AM–5 PM CT
- Free shippingIncluded in the price
- Talk to an expert(210) 900-2018 · Mon-Fri 9-5 CT
- Secure checkoutEncrypted payment by Shopify
- Manufacturer warrantyWarranty terms set by FJ Dynamics
Why Buy from Us
At OmniNova Home Systems, we believe buying premium home technology and lifestyle products should be simple, transparent, and backed by real customer support. We carefully screen our products and partner with reputable manufacturers to help ensure quality, reliability, and long-term value. Customers benefit from competitive pricing, free shipping on most items, responsive customer service, and access to white glove delivery and turnkey solutions on select products. We also offer an online price match program to help ensure you receive exceptional value while maintaining manufacturer-authorized pricing standards. Whether you're upgrading your home with smart technology, renewable energy solutions, security systems, simulators, drones, or advanced entertainment products, our mission is to provide a streamlined shopping experience with dependable support before and after your purchase.
Disclaimers
- Price match requests must comply with manufacturer Minimum Advertised Price (MAP) policies and may not apply to unauthorized sellers, clearance items, auctions, membership-only pricing, or pricing errors.
- Customer service response times are based on availability and may be limited during federal holidays, including but not limited to Christmas Day, Thanksgiving Day, and New Year’s Day.
- Free shipping applies to most products unless otherwise noted on the product page. Additional shipping charges may apply to oversized, freight, remote-area, or specialty items.
- White glove services and turnkey solutions are available only on qualifying products and in select service areas. Availability may vary by manufacturer, carrier, or installation requirements.
- Product screening and manufacturer evaluation do not constitute guarantees, warranties, or endorsements beyond those expressly provided by the product manufacturer.
FJ Dynamics Trion N10 · CORS system
Centimeter RTK for every machine on the property
A permanent GNSS reference station and NTRIP platform that delivers 24/7 RTK corrections to robotic mowers, line markers, receivers and machine control across your sites.
1,408
Receiver channels
0.8 cm
RTK horizontal + 1 ppm
99.9%
Platform availability
>24 h
Backup battery life

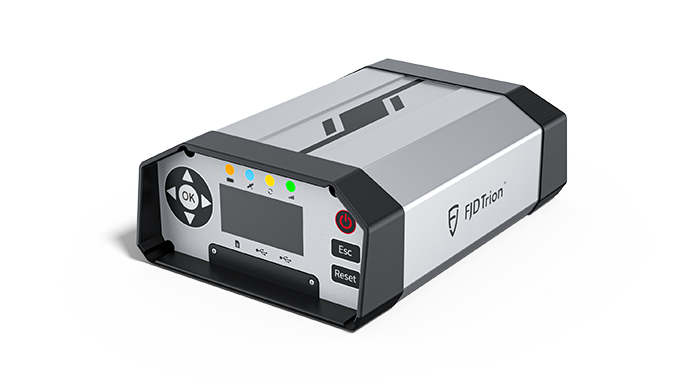

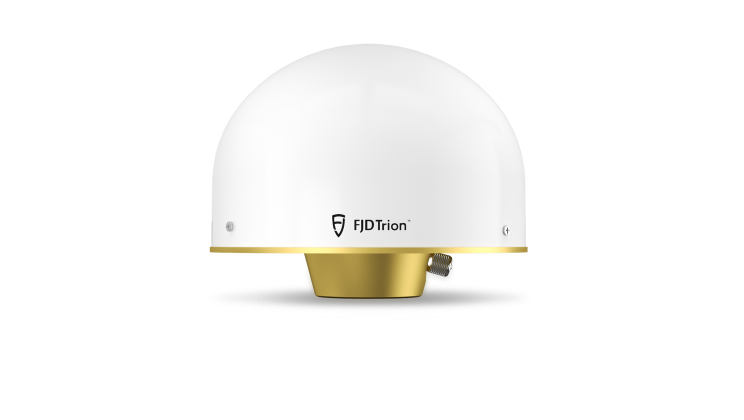

N10 receiver + choke ring
Survey-grade reference hardware

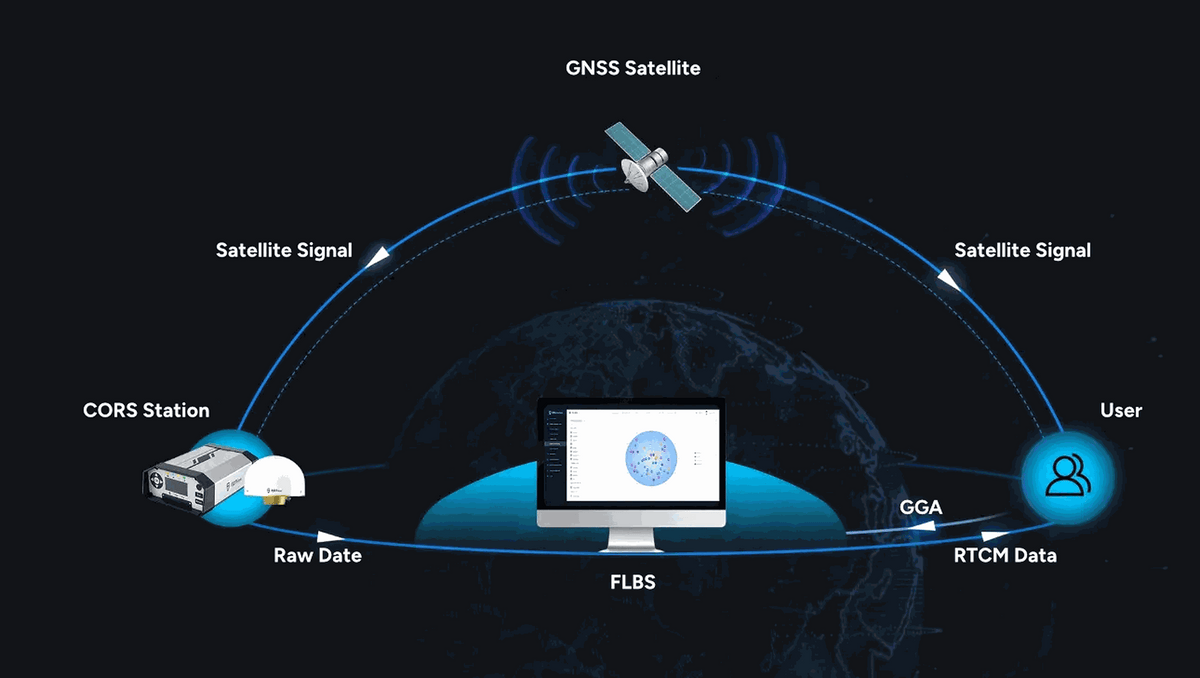

How it works
Corrections for every rover on the network

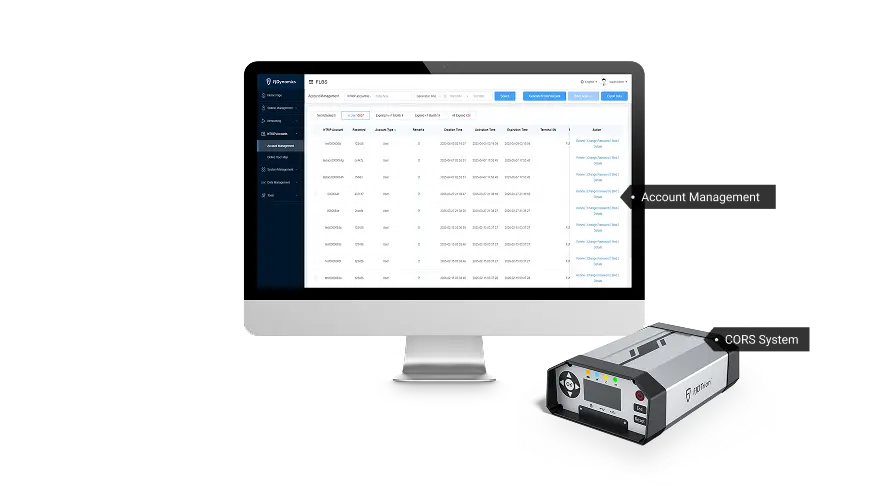

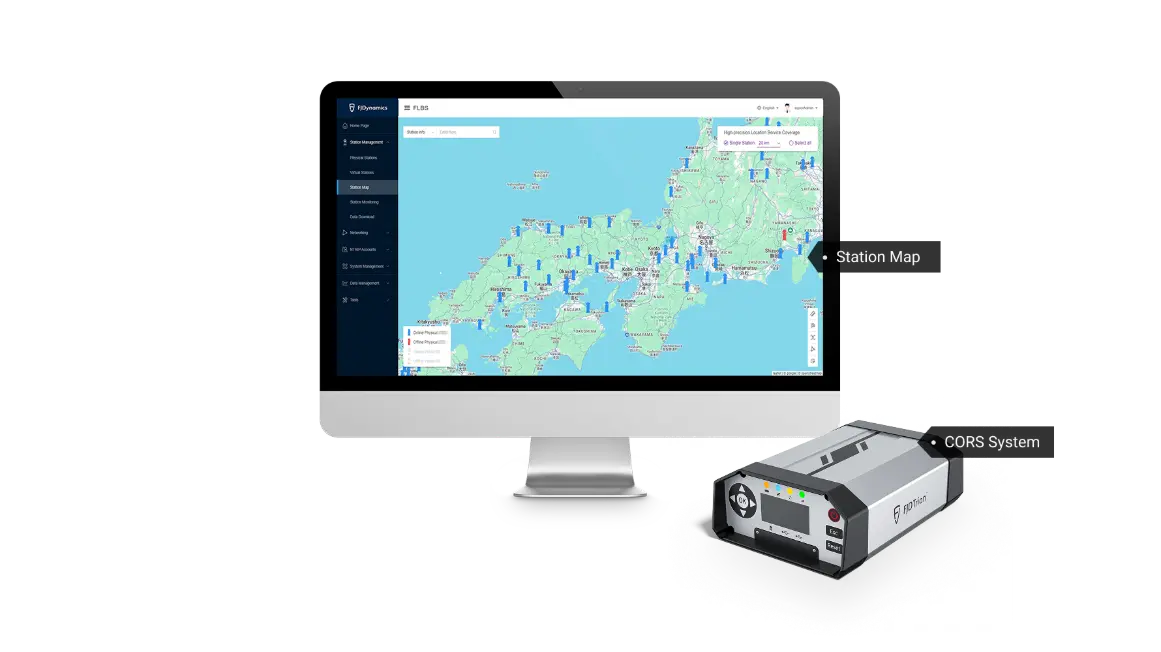

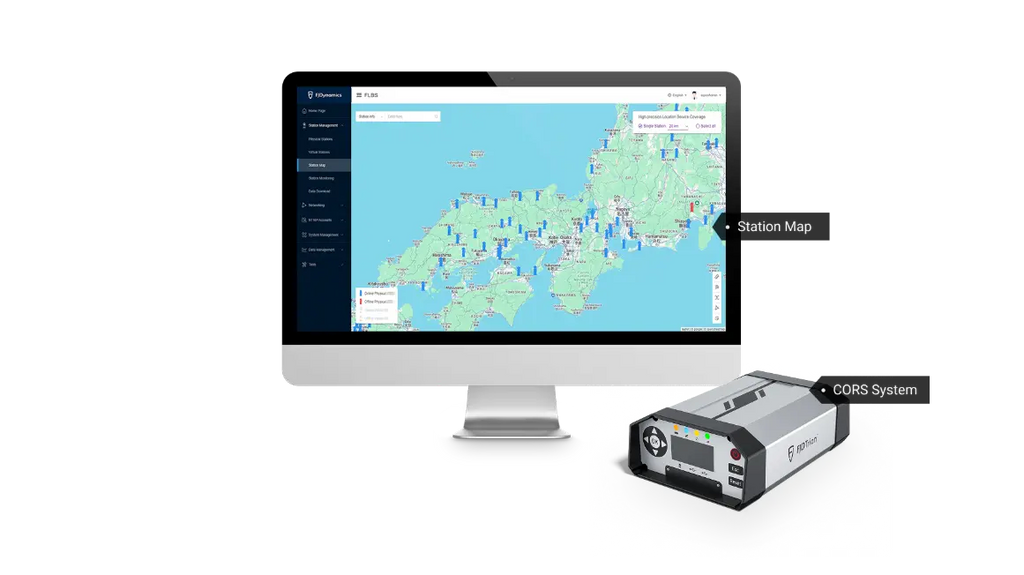

FLBS platform
Manage stations and accounts in one place
Reliability
Built to run 24/7
| Hardware | N10 GNSS reference receiver + CGX611A 3D choke ring antenna (per FJD) |
| Platform | FLBS CORS management: station map, platform login, NTRIP account management, alerts |
| Applications (FJD) | Landscaping/robotic mowing, machine control, precision agriculture, engineering survey, drones |
| Channels | 1,408 |
| Signals | BDS B1I, B3I, B1C, B2a, B2b; GPS L1C/A, L2C/L2P, L5; GLONASS G1, G2; Galileo E1, E5a, E5b; QZSS L1C/A, L2C, L5, L1S, L1C/B |
| Single point (RMS) | H 1.5 m; V 2.5 m |
| RTK (RMS) | H 0.8 cm + 1 ppm; V 1.5 cm + 1 ppm |
| Static (RMS) | H 2.5 mm + 1 ppm; V 5.0 mm + 1 ppm |
| Update rate | Up to 5 Hz |
| Protocols | NMEA-0183, RTCM 2.x/3.x |
| Cellular | Universal 4G module, Micro SIM |
| Wi-Fi | Hotspot for configuration; 2.4 GHz client (DHCP) |

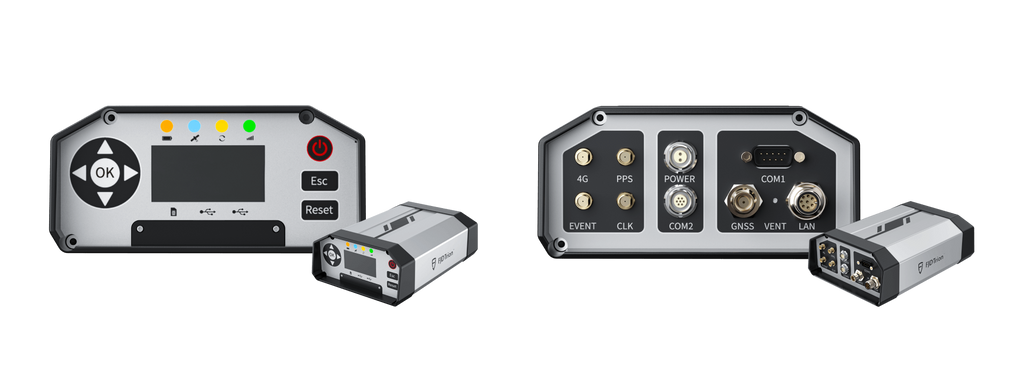

| Ethernet | 10/100 Mbps (RJ45 aviation connector) |
| USB | Type-C USB 2.0, storage and firmware updates |
| Serial | COM1 RS232 (DB9); COM2 RS232 (7-pin LEMO) |
| RF connectors | GNSS TNC; 4G, PPS out, event in, external clock (reserved) SMA |
| Input | DC 9–36 V (12 V recommended, LEMO); AC 90–260 V |
| Protection | Over-voltage cutoff at DC 38 V; reverse-connection protection |
| Backup battery | 22,000 mAh Li-ion, > 24 h |
| Power consumption | 5 W typical |
| Remote restart | Supported |
| Dimensions / weight | 220.7 × 152.1 × 81.7 mm; 2.08 kg (4.6 lb) |
| IP rating | IP67 |
| Operating / storage temp. | -40 to 65 °C / -40 to 80 °C |
| Peak gain | 6.5 dBi |
| Phase center error | ±1 mm |
| LNA gain / noise figure | 50 ± 2 dB / ≤ 2 dB |
| Polarization | Right-hand circular, 360° coverage |
| Size / weight | Φ185 × 148 mm; ≤ 1.8 kg |
| Connector / mount | TNC female; 5/8 in × 11 thread |
| Operating temperature | -40 to 85 °C; 95% non-condensing |
| Coverage | Full within network; up to 30 km outside |
| Station spacing | 30–120 km |
| Network RTK accuracy (RMS) | H ≤ 2 cm; V ≤ 5 cm |
| Correction formats | RTCM 2.3, 3.0, 3.2 MSM4/MSM5, CMR, CMR+ |
| Compatibility | Any NTRIP 1.0 reference station or rover |
| Service modes | Physical reference station or virtual reference station (VRS); nearest or assigned station |
| Availability | 99.9%, 24/7 |
| Capacity | Up to 10,000 concurrent users per server (FJD) |
| Data storage | RTCM 2.x/3.x, RINEX 3.04 |
| Alerts | Email: station offline, account changes, ionospheric activity; phone: service anomalies |
| Manufacturer warranty | Warranty terms set by FJ Dynamics; confirmed with your quote |
Robotic mowers, line markers and LiDAR for pro grounds care.
Questions buyers ask
Frequently asked questions
Why would a golf course or grounds contractor need a CORS?
Robotic mowers, line markers and GNSS receivers need RTK corrections for centimeter accuracy. A CORS gives you a permanent correction source you control, so every machine on the property (or across several sites) can use network RTK over NTRIP without a separate base for each. FJ Dynamics recommends the N10 for network-RTK mowing.
What area does one N10 cover?
FJD lists full coverage within the network and up to 30 km outside it, with recommended reference station spacing of 30–120 km. Network RTK accuracy is rated at 2 cm horizontal and 5 cm vertical. Your site design is confirmed with your quote.
Will it work with non-FJD equipment?
Yes. FLBS supports any GNSS reference station and rover that is compliant with NTRIP 1.0, using RTCM 2.3/3.x or CMR/CMR+ corrections.
What happens during a power or internet outage?
The receiver has a 22,000 mAh battery that runs more than 24 hours, supports remote restart, and FLBS sends email and phone alerts if a station goes offline or the service has a fault.
What does installation involve?
The antenna needs a stable, open-sky mount (5/8 in × 11 thread), and the receiver needs power plus a 4G, Wi-Fi or Ethernet connection. Who performs site survey, installation and platform setup is confirmed with your quote.
